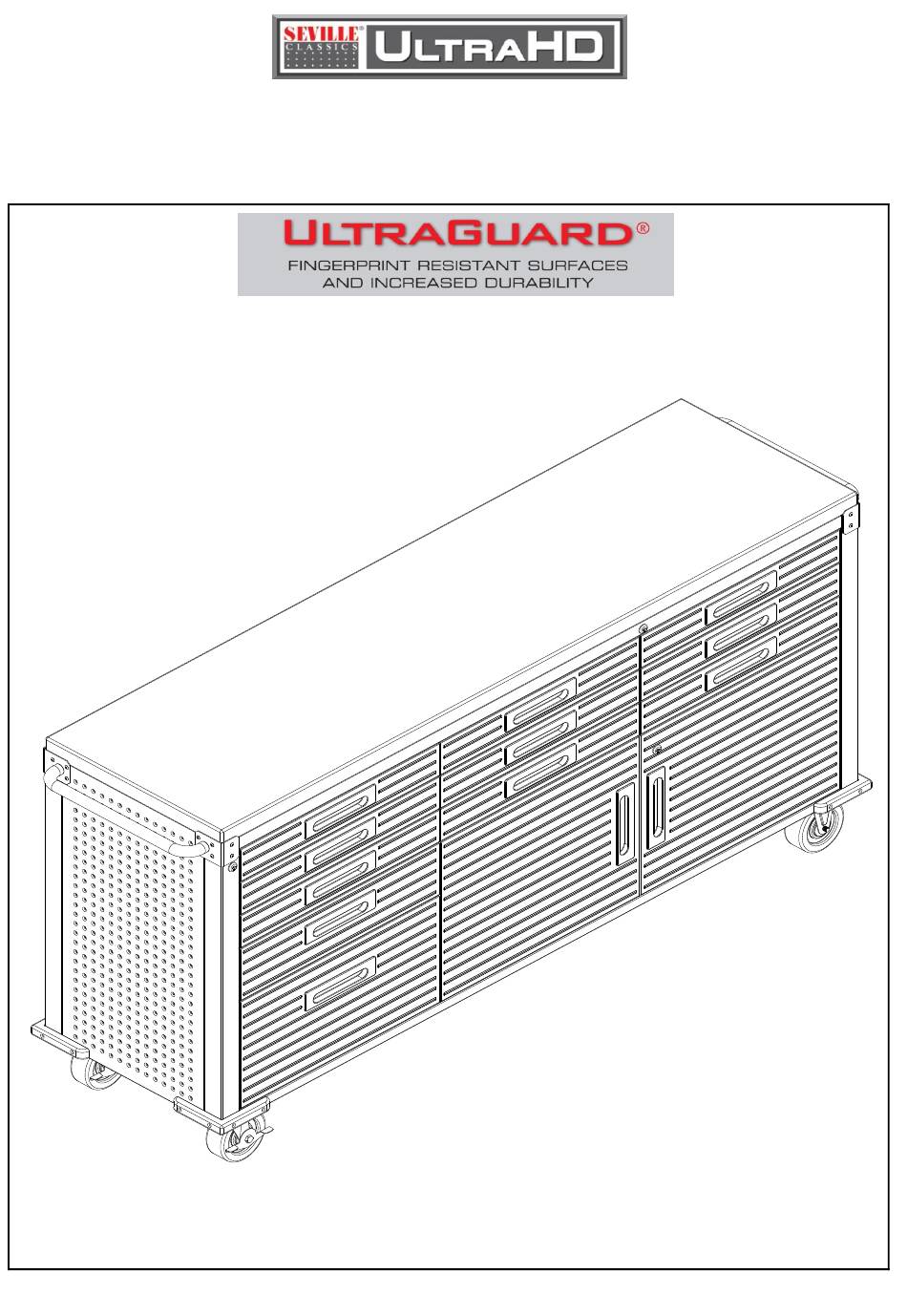

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Rolling Workbench (Model No. 20262) 77 in. W X 20 in. D X 37.5 in. H (1.95m W x 50.8cm D x 95.2cm H) Reference page 14 for special care and maintenance of stainless steel TR181008...
- Page 2 (pg 1 of 15) #27-B Small Drawers #12-B Medium Drawer #13-B Large Drawer #20-A #20-B...
- Page 3 (pg 2 of 15) Small Drawer #26-2 #26-1 Medium Drawer #12-5 #12-2 #12-1 Large Drawer #13-4 #13-2 #13-1...
-
Page 4: Parts List
PARTS LIST (pg 3 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15 of 15). (#1) LEFT SIDE PANEL x 1 PC (#2) RIGHT SIDE PANEL x 1PC (#3) FRONT FRAME x 1 PC (#4) BACK FRAME x 1 PC... - Page 5 PARTS LIST (pg 4 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15 of 15). (#11) LEFT SIDE SLIDER SUPPORT x 1PC (#12-1) MEDIUM-SIZE DRAWER FRONT x 1 PC (#12-2) MEDIUM-SIZE DRAWER BOTTOM PANEL x 1 PC (#12-5) MEDIUM-SIZE DRAWER BACK PANEL x 1 PC...
- Page 6 PARTS LIST (pg 5 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15 of 15). (#13-4) LARGE DRAWER BACK PANEL x 1 PC (#15) SCREW B (M4 x 8L) x 195 PCS (#17) SCREW D ( M8 x 18L) x 16 PCS (#18) LEFT DOOR HINGE x 2PCS...
- Page 7 PARTS LIST (pg 6 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15 of 15). (#22) KEY x 6 PCS (#24) DRAWER MAT x 11 PCS (#25) WRENCH x 1 PC (#26-1) SMALL DRAWER FRONT x 9 PCS...
- Page 8 PARTS LIST (pg 7 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15 of 15). (#41) SCREW F (M4 x 8L) x 32 PCS (#42) SCREW G (M4 x 30L) x 16 PCS (#57) BUMPER x 4 PCS (#23) MAGNET x 1 PC...
- Page 9 ASSEMBLY INSTRUCTIONS (pg 8 of 15) UItraHD Rolling Workbench (Model No. 20262) TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Step 1. Open both boxes, locate and remove the cardboard box containing the Solid Hardwood Top (#8).
- Page 10 ASSEMBLY INSTRUCTIONS (pg 9 of 15) UItraHD Rolling Workbench (Model No. 20262) Step 4. Install Left Side Slider Support (#11) Back Attach the Left Side Slider Support (#11) to the Back Frame (#4), make sure the "Top" of Left Side Slider Support (#11) is close to the Solid Hardwood Top (#8).
- Page 11 ASSEMBLY INSTRUCTIONS (pg 10 of 15) UItraHD Rolling Workbench (Model No. 20262) Install Base Panel (#5) Step 8. Attach Base Panel (#5) to the rest of the unit as the left picture shows. Use 14 pcs of Screw B (#15) and Screw Driver (#21) to fasten.
- Page 12 ASSEMBLY INSTRUCTIONS (pg 11 of 15) UItraHD Rolling Workbench (Model No. 20262) Step 12. lnstall Medium Drawer Bottom Panel (#12-2) and Medium Drawer Back Panel (#12-5). A. Fold the Left and Right panel of the Medium Drawer Bottom Panel (#12-2) up so that the ball bearing track will attached to the outside of the drawer.
- Page 13 ASSEMBLY INSTRUCTIONS (pg 12 of 15) UItraHD Rolling Workbench (Model No. 20262) #26-2 Step 14. A. Fold up all three panels of the Small Drawer Body (#26-2), use Screw B (#15) to tighten the back panel to the left and right panel. #26-2 Note: Do not tighten the screws all the way, until part C is completed.
- Page 14 ASSEMBLY INSTRUCTIONS (pg 13 of 15) UItraHD Rolling Workbench (Model No. 20262) Step 15. Place the Drawers. A. Pull out the sliders completely, then attach the drawer to the sliders. Make sure the square holes on the drawer side panels are line up, and the drawer is hooked onto the sliders completely.
- Page 15 Variations of color within these standards and minor scratches in the clear coat finish will not be a reason for replacement. If the wood top is received with excessive damage or splitting, Seville Classics will guarantee replacement of the wood top.
- Page 16 (pg 15 of 15) *If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English/Spanish) customer service department at: Seville Classics, Inc. 19401 South Harborgate Way Torrance, CA 90501 Telephone: (800) 323-5565 within USA...
- Page 17 UltraHD Line Model No. 20227 Model No. 20225 UltraHD Rolling Cabinet UltraHD Rolling Cabinet Model No. 20230 Model No. 20247 UltraHD Wall Cabinet UltraHD Lighted Workcenter Model No. 20217 Model No. 20294 UltraHD Trash Bin UltraHD 4-Door Locker Cabinet...
