Summary of Contents for Seville Classics UltraHD 20270

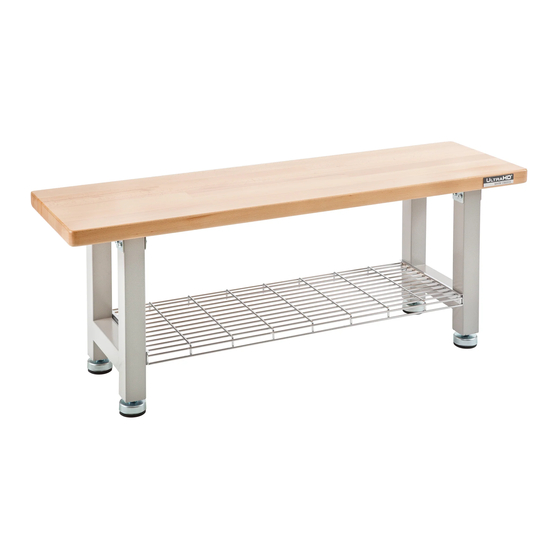

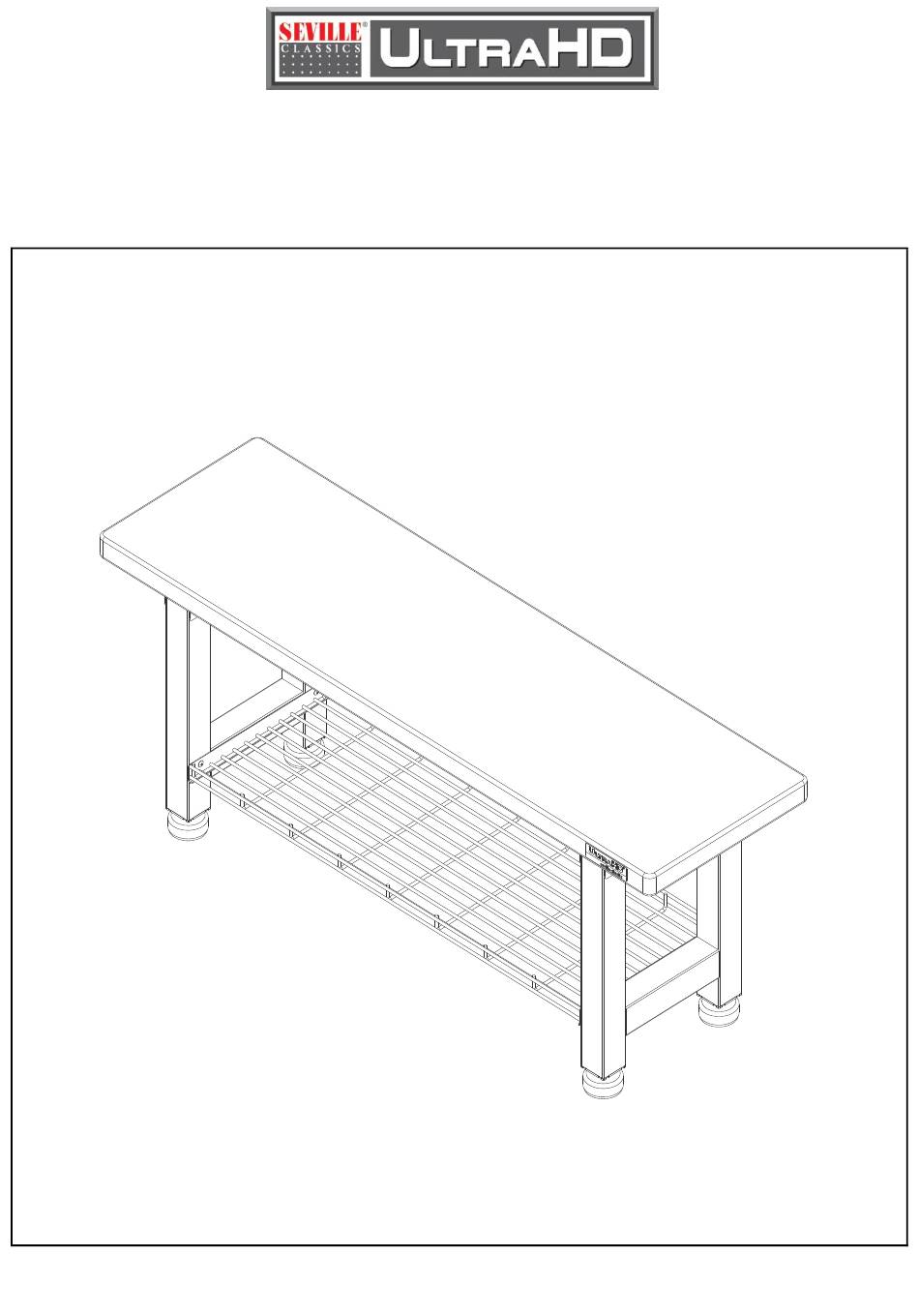

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Wood Bench with Storage Shelf (Model No. 20270) 48 in. W x 14 in. D x 18.5 in. H (121.9 cm W x 35.56 cm D x 46.99 cm H) SC200618...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 5.) (#3) Solid Hardwood Top x 1 PC (#5) Leg x 2 PCS (#1) Wire Grid Shelf x 1 PC (#47) "L"... - Page 4 UltraHD® Wood Bench with Storage Shelf (Model No. 20270) *NOTE: We recommend using TWO people to assemble the bench. Step 1: Assemble Leg (#5) A. Attach the "L" Bracket (#47) to the Legs (#5) as the left diagram shows. Line up screw holes, and use 8 pcs Screw I (#50) and Spring Washer (#59) to tighten.
- Page 5 UltraHD® Wood Bench with Storage Shelf (Model No. 20270) *NOTE: We recommend using TWO people to assemble the bench. Step 4: Assemble leveling Feet (#6) After installing Wire Grid Shelf (#1), insert the Leveling Feet (#6) into the Legs (#5). Use Wrench (#25) to tighten.
-
Page 6: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 7 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
