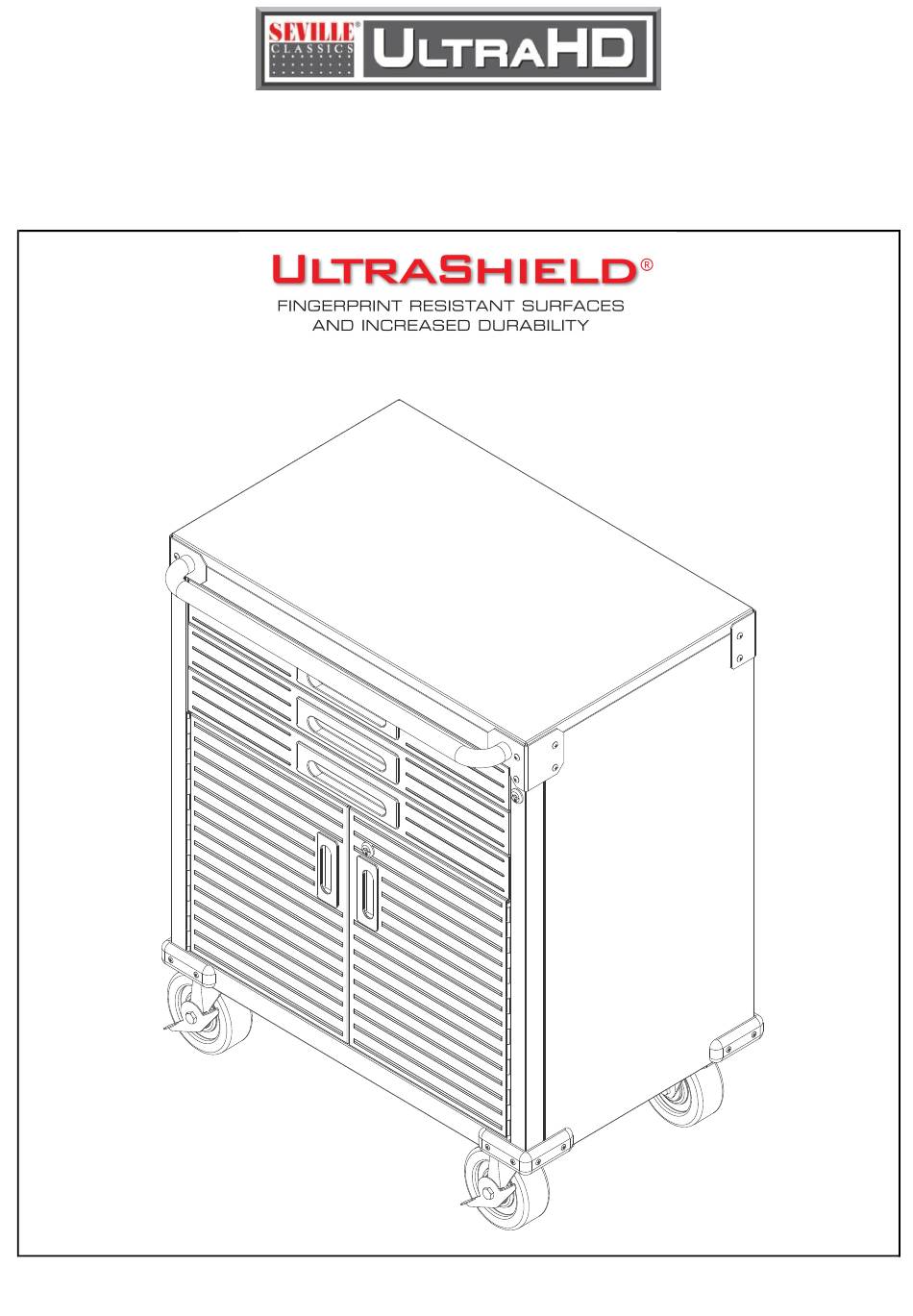

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® 3-Drawer Rolling Cabinet (Model No. 20235) Granite 28 in. W x 18 in. D x 34.5 in. H (71.1 cm x 45.7 cm x 87.6 cm) Reference page 12 for special care and maintenance of stainless steel SC210823...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 13 of 14). (#1) SOLID HARDWOOD TOP X 1PC (#2) UPPER BACK PANEL X 1PC (#3) BOTTOM BACK PANEL X 1PC (#4) LEFT PANEL X 1PC (#5) RIGHT PANEL X 1PC... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 13 of 14). (#20-A)LEFT DOOR X 1PC (#20-B)RIGHT DOOR X 1PC (#20-1) SMALL DRAWER FRONT PANEL X 3PCS (#20-3) SMALL DRAWER LEFT PANEL X 3PCS (#20-5)SMALL DRAWER BACK PANEL X 3PCS (#20-4) SMALL DRAWER RIGHT PANEL X 3PCS...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 13 of 14). (#9) LEFT BACK CORNER PROTECTOR X 1PC (#8) RIGHT BACK CORNER PROTECTOR X 1PC (#10) PUSH BAR x 1 PC (#11) BUMPER x 4 PCS (#12) SWIVEL WHEEL WITH BRAKE x 2 PCS...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 13 of 14). (#14) SCREW A (M4 x 10) x 57 PCS (#15) SCREW B (M4 x 8) x 69 PCS (#22)DOOR / DRAWER KEY x 4PCS (#21) SCREWDRIVER x 1PC...
- Page 7 UltraHD® 3-Drawer Rolling Cabinet (Model No. UHD20235) *NOTE: We recommend using TWO people to assemble the cabinet. TIP: A magnetic screwdriver is included for your convenience. If using a powered driver, keep torque setting on LOW. Front Open the package, remove and place all parts to the Step 1.
- Page 8 UltraHD® 3-Drawer Rolling Cabinet (Model No. UHD20235) *NOTE: We recommend using TWO people to assemble the cabinet. Step 4. Install the Right Panel (#5). Repeat Step 3,install the Right Panel (#5) Attach Front Frame (#6), Left Panel (#4), Right Note: Front Panel (#5) onto the bottom edge of Solid Hardwood Top (#1).
- Page 9 UltraHD® 3-Drawer Rolling Cabinet (Model No. UHD20235) *NOTE: We recommend using TWO people to assemble the cabinet. Step 7. Install Wheels (#12 and #13). Attach Wheels (#12 and #13) to the Bottom Panel (#7) and surrounding frame. Make sure the Swivel Wheels with Brake are installed at the front side.
- Page 10 UltraHD® 3-Drawer Rolling Cabinet (Model No. UHD20235) *NOTE: We recommend using TWO people to assemble the cabinet. Step 10. Install Front frame connection crossbar (#24). Attach the front frame connection crossbar (#24) on the middle of the front frame (#6). Use 4pcs Screw A (#14) to tighten them.
- Page 11 UltraHD® 3-Drawer Rolling Cabinet (Model No. UHD20235) *NOTE: We recommend using TWO people to assemble the cabinet. Step 12. Install Drawers (#20) into Cabinet a.) As shown by the left picture, pull out both slides rail to the farthest. Note: slides can be pulled out which the key rod is in the open state, because the cabinet has an interlocking function, only one pair of slides can be pulled out at a time.
- Page 12 UltraHD® 3-Drawer Rolling Cabinet (Model No. UHD20235) *NOTE: We recommend using TWO people to assemble the cabinet. Step 14. Install the Left Door (#20-A) and Right Door Attach the Left Door (#20-A) to the left side of the door frame and Right Door (#20-B) to the right side of the door frame.
- Page 13 UltraHD® 3-Drawer Rolling Cabinet (Model No. UHD20235) *NOTE: We recommend using TWO people to assemble the cabinet. How to remove drawer 1. First pull out the small drawer and press down the positioning block on the right side of the drawer by hand, and press the fixed pull block on the left up to take out the drawer.
-
Page 14: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 15 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
