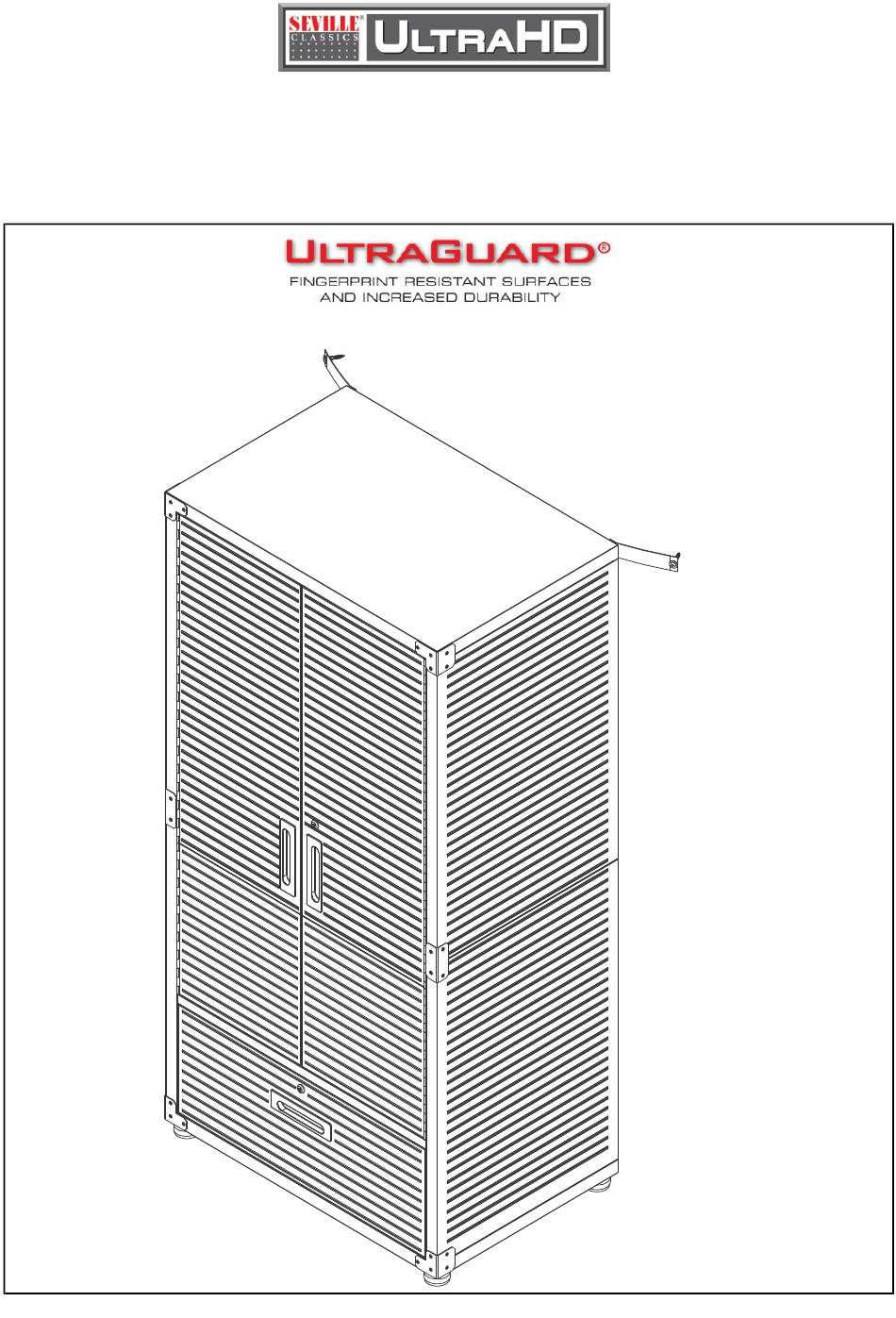

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) Granite 36 in. W X 24 in. D X 72 in. H (91.4 cm x 60.9 cm x 1.83 m) Reference page 16 for special care and maintenance of stainless steel SC240719...
- Page 3 (#1-A) Left Side Panel (#2-A) Right Side Panel (#6-A) Left Door (#7-A) Right Door #6-A1 #7-A1 #7-A3 #6-A3 #6-A2 #6-A3 #7-A2...
-
Page 4: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 17). (#1-A1) Left Side - Upper Panel x 1 PC (#1-A2) Left Side - Bottom Panel x 1 PC (#1-A3) Side Panel Reinforcement Connection Part x 2 PCS (#2-A1) Right Side - Upper Panel x 1 PC (#2-A2) Right Side - Bottom Panel x 1 PC... - Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 17). (#6-A1) Left Door - Upper Panel x 1 PC (#6-A2) Left Door - Bottom Panel x 1 PC (#6-A3) Door Panel Connection Part x 2 PCS (#7-A1) Right Door - Upper Panel x 1 PC (#7-A2) Right Door - Bottom Panel x 1 PC...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 17). (#10) Bottom Back Panel x 1 PC (#7) Middle Layer Panel x 1 PC (#20-1) Drawer Front Panel x 1 PC (#20-2) Drawer Base Panel x 1 PC (#20-3) Drawer Left Panel x 1 PC...
- Page 7 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 17). (#20-7) Short Hanging Bracket x 2 PCS (#24) Drawer Mat x 1 PC (#15) Corner Protection - A x 2 PCS (#16) Corner Protection - B x 2 PCS (#17) Middle Corner Protection x 2 PCS...
- Page 8 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 17). (#25) Wrench x 1 PC (#21) Screw Driver x 1 PC (#41) Screw F (M4 x 8L) x 98 PCS (#42) Screw G (M4 x 30L) x 16 PCS (#52) Screw K (M5 x 10L) x 8 PCS...
- Page 9 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 17). (#34) Hook x 8 PCS (#55) Screw M (M6 x 50L) x 2 PCS (#55-A) Wall Anchor x 2 PCS (#27) Washer (M4) x 2 PCS M8X20 pcs...
- Page 10 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* TIP: A magnetic screwdriver is included for your #1-A2 convenience. If using a power screwdriver, #1-A1 keep toruqe setting on LOW during assembly. #1-A3 WARNING: Some parts may have sharp edges.
- Page 11 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* #7-A1 Step 4: Install (#7-A) Right Door #6-A3 Repeat Step 3, use the (#7-A1) Right Door - Upper Panel, (#7-A2) Right Door - Bottom Panel, (#6-A3) Door Panel Connection Part, use 1 pc of (#41) Screw F to tighten the touching sides, use 4 pcs of (#41) #7-A2...
- Page 12 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* Step 8: Install (#4) Bottom Panel Attach (#4) Bottom Panel to the (#1-A2) Left Side Bottom Panel and (#2-A2) Right Side Bottom Panel. Make sure the front of the bottom panel faces downward.
- Page 13 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* Install (#15, #16 and #17) Corner Protections Step 11: 1). Attach 4 pcs of (#15, #16) Corner Protection A and B onto 4 corners of the cabinet, use 20 pcs of (#54) Screw N to tighten.
- Page 14 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* Step 15: Install Drawer Left and Right Side Panels (#20-3 and #20-4) Attach the Drawer Left Side Panels (#20-3), Drawer Right Side Panels ( #20-4) into the back of the Drawer Front Panel (#20-1).
- Page 15 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* Step 18: Install folder. A: Install Letter Size Hanging File Folder Attach the Long Hanging Bracket (#20-6) to Drawer Left Side Panels (#20-3) and Drawer Right Side Panels (#20-4). Line up the screw holes and use 4 pcs of Screw B (#15) to tighten.
- Page 16 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* Step 19: Install (#20-A) Drawer 1). Pull out the drawer sliders to full length. 2). Attach the drawer to the sliders. Make sure the square holes on the drawer side panels are line up, and the drawer is hooked onto the sliders completely.
- Page 17 UltraHD® Storage Cabinet with Bottom Drawer (Model No.16259B) *NOTE: We recommend using TWO people to assemble the cabinet.* Step 20: Install Mounting Strap (#60) A. Remove 1 pc of Screw F (#41) from the back panel. B. Attach the Mounting Strap (#60) to the back panel as the left illustration shows using Screw O (#61) and Washer (#27).
-
Page 18: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 19 UltraHD® Line UltraHD® Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20225 (Granite) Model No. 20292 (Granite) Model No. 20081 (Graphite) Model No. 20293 (Graphite) Model No. 20082 (Red) Model No. 20083 (White) UltraHD® Wall Cabinet with Open Shelf UltraHD®...
