- Page 1 Installation and Operation Manual CSE OTS R8 1F PUMP STATION CSE OTS R8 1F...

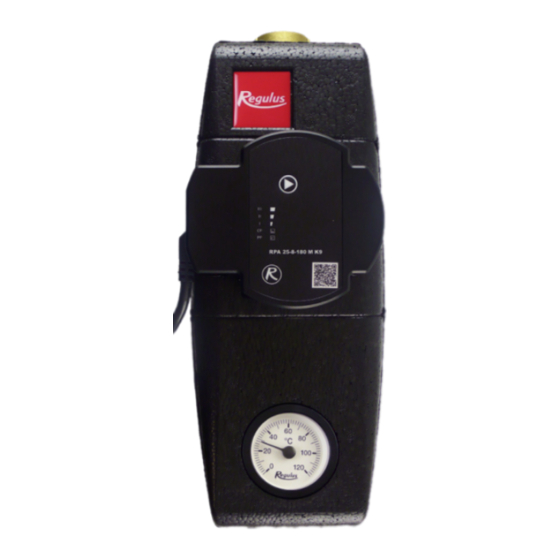

- Page 2 1. Introduction CSE OTS R8 1F pump station is designed for installation into unmixed heating circuits which do not require installation of a check valve. The pump station provides circulation through the hydraulic circuit. 2. Pump Station Description The pump station consists of an RPA 25-8 pump including a power cable, two ball valves with union nut, a thermometer and insulation.
-
Page 3: General Information
I, II, III, PP mode for variable differential pressure or CP mode for constant differential pressure. 4.3. Permissible and prohibited positions of the pump station CSE OTS R8 1F PUMP STATION - www.regulus.eu │... -
Page 4: Pump Wiring
You select the operating mode of the pump: constant speed (CS), proportional pressure (PP) or constant pressure (CP) and the pump performance curve (I, II, III). The LED lights show the pump settings (operating mode and performance curve). CSE OTS R8 1F PUMP STATION - www.regulus.eu │... - Page 5 III CP I constant pressure I CP II constant pressure II CP III constant pressure III CS I constant speed I CS II constant speed II CS III constant speed III CSE OTS R8 1F PUMP STATION - www.regulus.eu │...
-
Page 6: Manual Restart
LED lights - see the pic., and during it the pump alternately switches on and off. Manual restart lasts for 5 minutes, after which the pump switches to normal mode. If the pump is not unblocked, contact a specialist technician. CSE OTS R8 1F PUMP STATION - www.regulus.eu │... -
Page 7: Pump Operating Modes
For these systems, it may be more appropriate to switch the pump to constant pressure mode CP. Performance curves PP III PP II PP I Q [m CSE OTS R8 1F PUMP STATION - www.regulus.eu │... - Page 8 By reducing the required flow, the pump maintains a constant head, so the reduction of pump performance is more gradual than in the PP mode. Performance curves CP III CP II CP I Q [m CSE OTS R8 1F PUMP STATION - www.regulus.eu │...
- Page 9 Performance curves CS III CS II CS I Q [m CSE OTS R8 1F PUMP STATION - www.regulus.eu │...
-
Page 10: Technical Data
Vent the system and the pump Pump is running but no Closed valve in system Check that valves are open fluid circulation through Air in the system Vent the system system CSE OTS R8 1F PUMP STATION - www.regulus.eu │... - Page 11 Electrical short Damaged motor winding or circuit inside other electrical short inside the Replace the pump the pump pump If the fault cannot be rectified, contact a specialist technician. CSE OTS R8 1F PUMP STATION - www.regulus.eu │...
- Page 12 ©2024 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
