Dormakaba LA GARD 702 Operating Instructions

Unit 19/80 Mills Rd, Braeside Vic 3195
ABN 62 123 602 782
LA GARD 702
Manager Operating
Instructions
MANAGER FUNCTIONS
• Change their own Managers combination
• Add and delete users
• Reset user combinations
Default Manager Code
The combination format is:
• The first 2 digits are the ID 01 (this cannot be changed)
• Then a 6 digit combination (this can be changed)
CHANGE COMBINATION
Note to First Time Users - A Manager or user must change their combination on their first use after being added into the lock, or after
they have been issued a new combination by the manager.
IMPORTANT: Only attempt to change the combination while the safe door is OPEN
Before you start, have ready your new 6-digit combination, remembering it will have the 2 digit user ID as the prefix, followed by your
new 6-digit combination.
The process to change the opening combination is:
1. While the keypad is asleep, press either the Arrow Up, Arrow Down, or Enter button to access the menu
2. Use the arrow button to scroll to 'Change Combo"
3. Press enter
4. Enter your ID and Old Combination
5. Enter your New combination
6. Confirm your New combination
The display will say "Success!" and the keypad will beep 3 times and flash a Green LED once you have successfully completed the combi-
nation change.
If your combination change is unsuccessful, the keypad will beep and flash a Red LED 3 times.
Once you have successfully changed the combination, test your new combination with the door open at least 3 times before closing the
safe.
www.unitedsafes.com
01 111111
ID 6 digit
combination

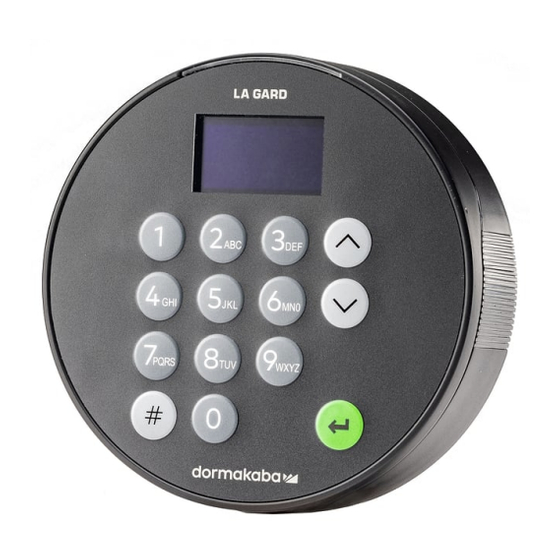

USING YOUR 702 DISPLAY KEYPAD
Key Use
Arrow up or Arrow Down: To scroll
through menus
#: To go back a step in a menu, or cancel a
#
entry
Enter: To select a menu item or confirm an
entry
