Remote Disable - Software and
Table of Contents
Introduction ......................................................................................................................................... 2
About Remote Disable ...................................................................................................................... 2
Remote Disable - LA GARD Software Setup .............................................................................. 3
Remote Disable - Keypad Setup .................................................................................................... 5
Display Keypad Setup ................................................................................................................... 5
Non-Display Keypad Setup .......................................................................................................... 6
Alarm Box & Input Signal Overview ............................................................................................... 6
Connecting the Input Signal ............................................................................................................ 6
Mount the Alarm Box .................................................................................................................... 6
Connect the Alarm Box ................................................................................................................. 6
Alarm Box Connection Diagram ..................................................................................................... 7
Hardware Setup
dormakaba USA Inc. Remote Disable HW/SW Setup 7044.0822 Rev A 08/22 |
1
Advertisement
Table of Contents
Related Manuals for Dormakaba Remote Disable
Summary of Contents for Dormakaba Remote Disable
- Page 1 Alarm Box & Input Signal Overview ....................6 Connecting the Input Signal ......................6 Mount the Alarm Box ........................6 Connect the Alarm Box ......................... 6 Alarm Box Connection Diagram ..................... 7 dormakaba USA Inc. Remote Disable HW/SW Setup 7044.0822 Rev A 08/22 |...
- Page 2 Introduction This document outlines how to set up a 700 series lock to use the Remote Disable function. About Remote Disable A configurable Input Signal is available on systems using 702, 703, 704, and 705 Keypad models. Using the Input Signal will require the installation of a Battery/Alarm Box (Item/Order # 704045).
- Page 3 A non-Display Keypad will indicate that the opening of the lock has failed if an • opening is attempted with the Remote Disable asserted. The Keypad will produce 3 low beeps accompanied by 3 red LED flashes Note: The LA GARD Software and the Alarm Box are not UL evaluated.
- Page 4 LED will illuminate green. 12. When the programming is complete, “PC Link closed” will appear on the Keypad’s display screen, then the system will restart. dormakaba USA Inc. Remote Disable HW/SW Setup 7044.0822 Rev A 08/22 |...
- Page 5 4. Scroll through the list of options and select “Disable Open” to set the Input Signal to Remote Disable mode. 5. “Success Mode updated” will appear on screen and the Keypad will beep three times and flash a green LED once complete. dormakaba USA Inc. Remote Disable HW/SW Setup 7044.0822 Rev A 08/22 |...

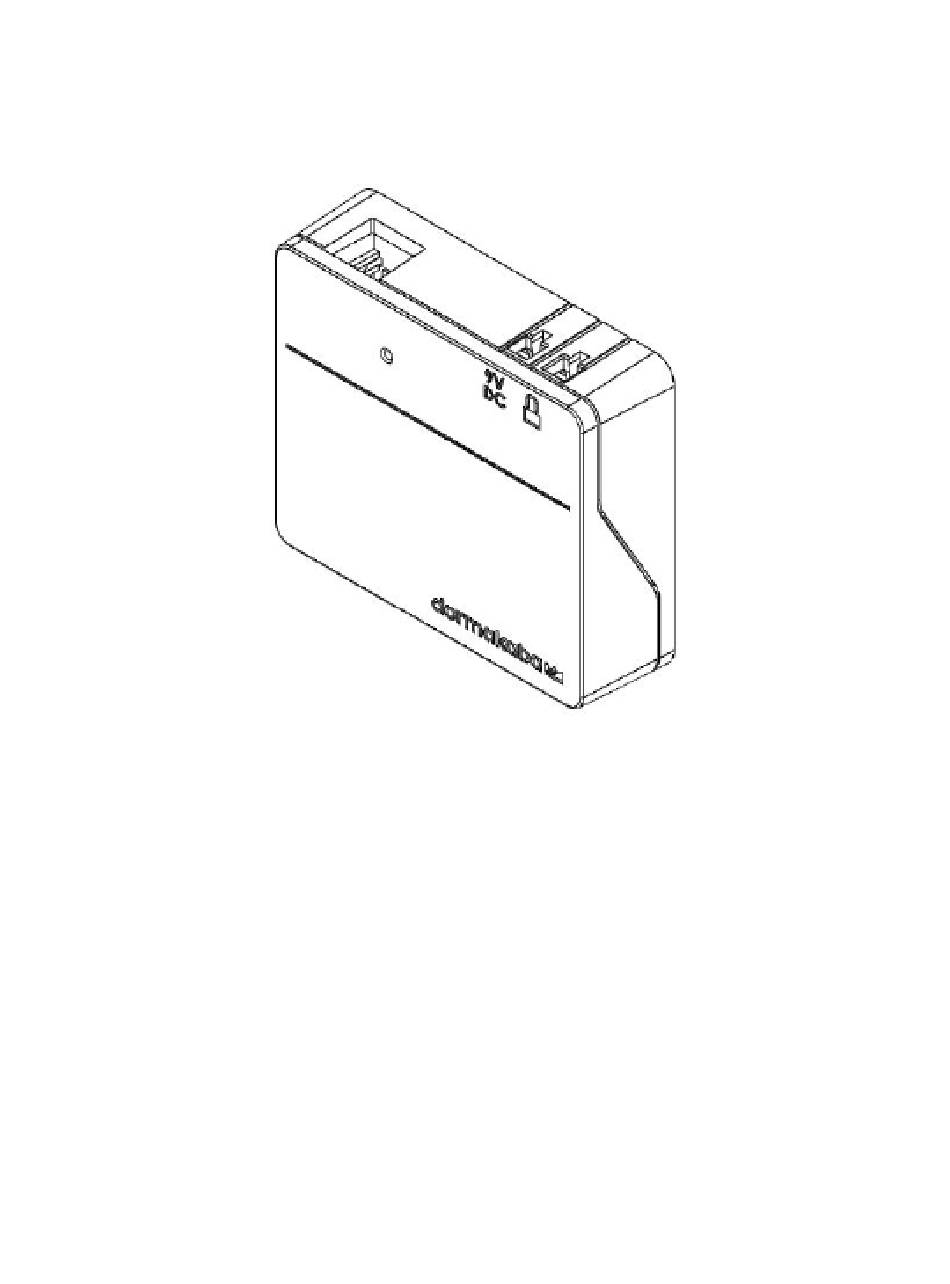

- Page 6 2. The Keypad will beep three times and flash a green LED once complete. Alarm Box & Input Signal Overview The Alarm Box (Item/Order # 704045) allows for a Remote Disable input signal that can block the open command to the lock if asserted. The Alarm Box is not UL evaluated.
- Page 7 Terminal Block: Connection to alarm/control panel. EXT- (Control Signal Reference Voltage or Ground) EX+ (+5V DC Min. to +12V DC Max. Control Signal) NO (Normally Open) COM (Common) NC (Normally Closed) dormakaba USA Inc. Remote Disable HW/SW Setup 7044.0822 Rev A 08/22 |...
