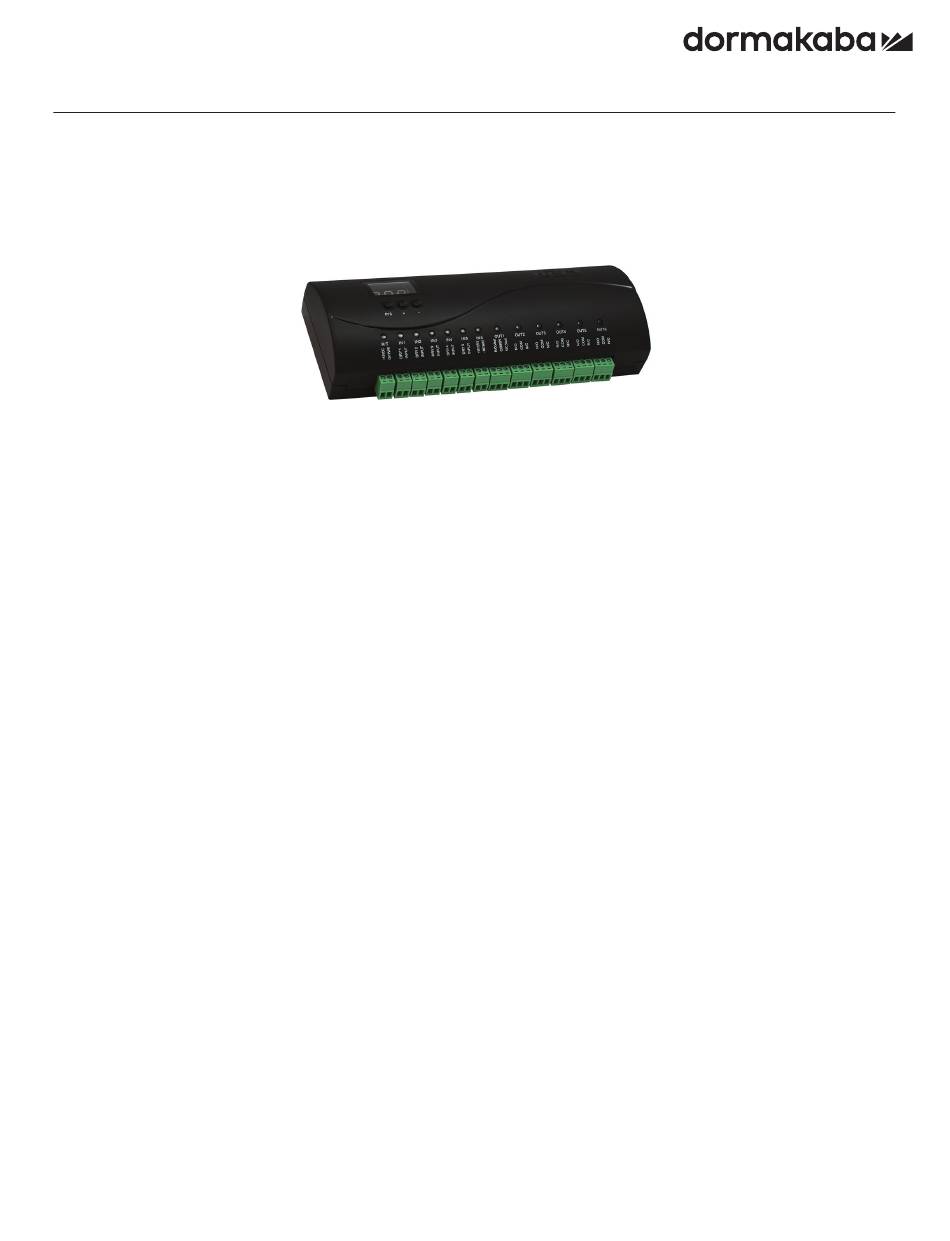

INSTALLATION

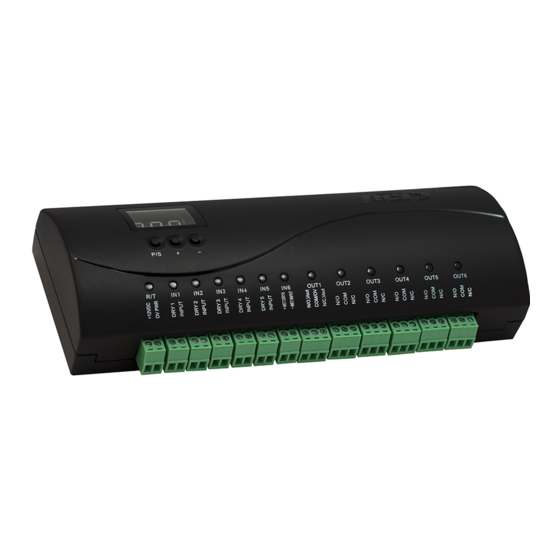

RCI ILO6KT*

MULTI-FUNCTION DOOR CONTROLLER KIT

This logic controller is a 6 input, 6 output programmable controller.
It has 7 pre-programmed functions as listed below.
Function #1: Barrier Free Washroom Control c/w Emergency Call Function
Function #2: Barrier Free Washroom c/w Controlled Access and Emergency Call Function
Function #3: Communicating Washroom c/w Auto-operator control and Emergency Call Function
Function #4: Communicating Washroom c/w Emergency Call Function
Function #5: 2 Door Security Interlock c/w Emergency Release
Function #6: 2 Door Safety Interlock c/w Emergency Release
Function #7: Multi-Zone Control
1. Power the unit with 12-24VDC on the R/T terminals.
2. Select the function by pressing and holding the P/S button until the display flashes.
3. Use the +/- buttons to go forward and back in the function list.
4. Press the P/S button to select the function and return to normal operation.
Within the functions with Auto-operator, a delay timer can be set by holding the P/S button down until the delay time is
displayed. The +/- button can be used to increase or decrease delay time 1-10 seconds.
The display will dim after about 5 seconds. Pressing the P/S button will display current function setting.
See attached diagram for operational descriptions and wiring recommendations for Function 1
NOTE: Provided wiring diagram is a suggested solution. It is the responsibility of the indvidual installer and end user to
ensure that all national, provincial/state, and local building and safety codes are complied with. If unsure, enlist a local
building code authority for further assistance.
* ILO6 Kit meets current Ontario Building codes requirement. Consult local AHJ for Building Code compliance.
