User Interface
Soft Keys & Permanently Displayed Programmable Keys

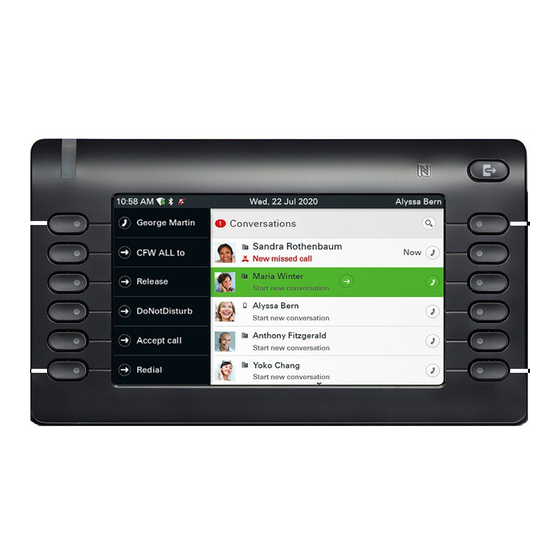

The phone has:
_
6 Soft Keys with status LED which provide several functions de-
pendent on a particular situation
`
6 permanently displayed programmable keys with status LED to
which you can assign functions or phone numbers
Permanently
displayed
programmable
keys
\
By pressing the key you can activate e.g. Call Forwarding.
Navigation Keys
@
Switch to main menu
μ
Scroll upwards
Hold down: Jump to top of list
Z
Confirm input or perform action
«
Move cursor to the right
Step down one menu level
€
Scroll downwards
Hold down: Jump to the end of list
^
Cancel function, delete characters to the left of
the cursor, step up one menu level
Audio Keys
"
Decrease/increase volume
;
Deactivate/activate the micro-
phone
:
Activate/deactivate
the loudspeaker
.
Activate/deactivate the headset
Fixed Function Keys
Â
Message waiting indicator
Place a call to voicemail system
Ä
Place current call on hold
Ã
Transfer call
Á
Conference
Ā
Activate a function configured by your
administrator
Notification LED
With the Notification LED different phone status can be
identified:
Off: Idle
Green solid: Active call
Green pulsing: Incoming call
Amber solid: Call(s) on hold
Amber pulsing: Held call re-presenting
Red solid: New missed call
Red pulsing: New voicemail (MWI)
Function Icons (selection)
Icon Explanation
Soft keys
Accept call
Reject call
Deflect call
Place call on hold
Transfer call without consultation
Transfer call with consultation
Alternate
Resume held call
Request call back
Add participant
Show participant details
Show all participants
Status Icons (selection)
Icon Explanation
g
Active call
‹
Ringing call
e
Call on hold
Ringer off
Short ringer (beep)
Phone lock activated
Call Forwarding enabled
Connected Bluetooth device with low battery level
1
Wi-Fi connection with excellent signal strength
1. Available only on OpenScape Desk Phone CP700X
Unify OpenScape
Desk Phone CP700/
CP700X
Unify OpenScape Business
Unify OpenScape 4000
Quick Reference Guide
A31003-C1000-U130-2-7619
09/2024
