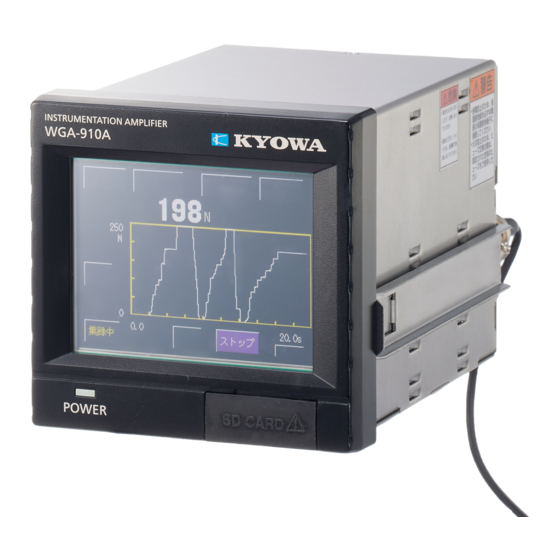

KYOWA WGA-910A Instruction Manual
  1. Manuals
  2. Brands
  3. KYOWA Manuals
  4. Amplifier
  5. WGA-910A Series
  6. Instruction manual

KYOWA WGA-910A Instruction Manual

Instrumentation amplifier, software for sd card
Hide thumbs Also See for WGA-910A:
Table of Contents

Advertisement

Quick Links

Download this manual
Windows 7/8.1/10 are trademarks of Microsoft Corporation, USA.
Generally, company names and trade names described in this Instruction Manual are trademarks or registered trademarks of
the companies.
This Instruction Manual may not be copied or reproduced, in whole or part, without consent of KYOWA.
Copyright © KYOWA ELECTRONIC INSTRUMENTS CO., LTD. All rights reserved.
The contents of the Instruction Manual are subjected to change without prior to notice.
INSTRUMENTATION AMPLIFIER
INSTRUCTION MANUAL
(SOFTWARE FOR SD CARD)
Thank you for purchasing KYOWA's product Instrumentation Amplifier WGA-
910A.
Read this Instruction Manual carefully in order to make full use of the high
performance capabilities of the product.
Do not use the product in methods other than described in this Manual.
IM-A-1166D
April 2022
WGA-910A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGA-910A and is the answer not in the manual?

Questions and answers

Related Manuals for KYOWA WGA-910A

Summary of Contents for KYOWA WGA-910A

  • Page 1 Generally, company names and trade names described in this Instruction Manual are trademarks or registered trademarks of the companies. This Instruction Manual may not be copied or reproduced, in whole or part, without consent of KYOWA. Copyright © KYOWA ELECTRONIC INSTRUMENTS CO., LTD. All rights reserved.

  • Page 2: Table Of Contents

    CONTENTS CONTENTS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 1 NOTATIONS USED IN THE INSTRUCTION MANUAL ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 2 IMPORTANT PRECAUTIONS WHEN USING PC SOFTWARE FOR SD CARD ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 2 1. PRODUCT OUTLINE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3 2. INSTALLATION AND ACTIVATION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 3. READING SETTING VALUE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 3-1.

  • Page 3: Notations Used In The Instruction Manual

    IMPORTANT PRECAUTIONS WHEN USING PC SOFTWARE FOR SD CARD NOTE Be sure to quit a software (hereinafter referred to as the Software) of the WGA-910A before removing the SD card or USB memory from the PC. If you try to remove the SD card from the PC by using the Safely Remove Hardware application before quitting the Software, the following alert window may appear.

  • Page 4: Product Outline

    1. PRODUCT OUTLINE This Software includes the following functions. ・ Capable of updating the setting value of the WGA-910A by editing the value with the WGA-910A software and by writing the value in the SD card. ・Capable of saving the setting value to the SD card and capable of reading the value with the WGA-910A software.

  • Page 5: Installation And Activation

    2. INSTALLATION AND ACTIVATION 1) Insert the accessory CD-R into the CD-ROM drive. 2) Copy a WGA-910A_Software for SD_V****.xlsm in the CD-R and paste it on the easy to find place such as desktop. (V**** : Version) 3) Click the WGA-910A_Software for SD_V****.xlsm icon. EXCEL2013, OS: Windows 8.1 is used in the following.
  • Page 6 5) Click the Software for SD card Start button to display the following menu window. 6) Click the □ button on the menu window to widen the menu window. 7) Click the Minimize button on the menu window to narrow the menu window.

  • Page 7: Reading Setting Value

    Select the 【WGA910_SET.KS】 and click the Open button. ■ For setting file The setting file name is as follows and the file format is dedicated to the WGA-910A. W GA910_SET.KS The setting file includes all setting values (excluding calibration value).

  • Page 8: Creating Default Value File

    3-2. CREATING DEFAULT VALUE FILE MEMO ・ For details of the default of the setting value, refer to “12-1. LIST OF SETTING ITEM” in the WGA-910A Instruction Manual for Hardware. 1) Click the Browse button on the Creating a new setting file flame window.

  • Page 9: Editing Setting Value

    Be sure to set the decimal point position of the Y-axis Start Point and Level Passed Way to the same position that is set in the Rd. Display of the WGA-910A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 10: Editing Setting Value Of Input Tab

    ・Be sure to set the decimal point position of the Zero near zero Fix, Zero tracking: Compensation range , and Additional Value to the same position that is set in the Rd. Disp. of the WGA-910A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 11: Editing Setting Value Of Comparison Tab

    Be sure to set the decimal point position of the compared values of comparators and Hysteresis Width to the same position that is set in the Rd. Disp. of the WGA-910A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 12: Editing Setting Value Of Motion Detect Tab

    ・Be sure to set the decimal point position of the Motion Detection Width to the same position that is set in the Rd. Disp. of the WGA-910A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 13: Editing Setting Value Of Measure Mode Tab

    4-5. EDITING SETTING VALUE OF MEASURE MODE TAB 1) Click the Measure Mode tab to display the right window. 2) Select the Measurement Condition No. from the list box. If you change the Measurement Condition No.，the Measurement Condition No. and setting values on the Comparison Motion Detect, Measure Mode2 window changes at the same time.

  • Page 14: Editing Setting Value Of Measure Mode2 Tab

    ・Be sure to set the decimal point position of the Detection Trigger Level, Extreme Discriminate Width, Inflection Discriminate Value and Previous Comparison Initial Value to the same position that is set in the Rd. Disp. of the WGA-910A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 15: Editing Setting Value Of Initial Tab

    4-7. EDITING SETTING VALUE OF INITIAL TAB 1) Click the Initial tab to display the right window. 2) Click the target Meas. Cond. Select Signal from the list box. 3) Select the target operation of the Key Lock from the list box. 4) Select the target Language from the list box.

  • Page 16: Editing Setting Value Of Option Tab

    Be sure to set the decimal point position of the Zero Display and Full Display of the D/A output to the same position that is set in the Rd. Disp. of the WGA-910A calibration. Or, the error window appears when the Read setting button is pressed.
  • Page 17 5) CC-Link (1) Select the target number of the The Number of Occupied Station from the list box. (2) Select the target speed of the Transmission Speed from the list box. (3) Select the target number of the Station Number from the list box. 6) After editing, click the OK button on the bottom right corner of the Edit setting window to temporarily maintain the setting value.

  • Page 18: Saving Setting Value

    5. SAVING SETTING VALUE Saves the edited setting value to the SD card or other folders. Capable of updating the setting value by inserting the SD card that saves the setting file to the WGA-910A and by reading the file.

  • Page 19: Waveform Data

    6. WAVEFORM DATA Capable of converting the waveform data to the CSV format or capable of displaying the data on the EXCEL graph by reading the waveform data that was recorded in the SD card by the WGA-910A. 6-1. READING WAVEFORM DATA 1) Click the Waveform data button to display the Waveform data window.

  • Page 20: Creating Datasheet For Displaying Graph Of Waveform Data

    6-2. CREATING DATASHEET FOR DISPLAYING GRAPH OF WAVEFORM DATA 1) Select the target waveform data that you want to create the datasheet for displaying the graph on the List of waveform data window and put a checkmark in the box next to the data name.
  • Page 21 3) The Graph button is added on the menu window. Click the button to display the Graph displaying window. 4) The data of the first window of the recorded waveform is graphically displayed on the EXCEL sheet. 5) To graphically display the second window of the recorded waveform, click the list box or →...
  • Page 22 6) To delete the datasheet for displaying the graph, click the Delete the datasheet button on the bottom side of the Graph displaying window. The Do you want to delete the file No. *****? (*****: Waveform data name) message appears. Click the Yes button to delete the datasheet.

  • Page 23: Changing Data Name And Deleting Data File Of Waveform Data

    6-3. CHANGING DATA NAME AND DELETING DATA FILE OF WAVEFORM DATA 6-3-1. Changing Data Name 1) Select the target waveform data that you want to change the data name on the List of waveform data window and put a checkmark in the box next to the data name. To put checkmarks to the all waveform data, click the Select all button on the lower right side of the window.

  • Page 24: Deleting Data File

    6-3-2. Deleting Data File 1) Select the target waveform data that you want to delete on the List of waveform data window and put a checkmark in the box next to the data name. To put checkmarks to the all waveform data, click the Select all button on the lower right side of the window.

  • Page 25: Saving Csv Format Of Waveform Data

    6-4. SAVING CSV FORMAT OF WAVEFORM DATA 1) Select the target waveform data that you want to save on the List of waveform data on the window and put a checkmark in the box next to the data name. To put checkmarks to the all waveform data, click the Select all button on the lower right side of the window.

  • Page 26: Reading / Editing / Saving Comparison Waveform Data

    (B) When you want to read the saved comparison waveform data Select 【WGA 910 _ SET _ WAVE.KS】 already saved on the SD card. The setting file name is as follows and the file format is dedicated to the WGA-910A. W GA910_SET_WAVE.KS...
  • Page 27 【WGA910_SET_WAVE.KS】in the attached CD. Or, the comparison waveform data cannot be created. You can also download the template of the waveform comparison file on KYOWA HP. ・ The waveform comparison file contains comparison waveform data of Measurement Condition No. 1 to 32.
  • Page 28 6) The comparison waveform data of the selected Measurement Condition No. is displayed on the sheet.

  • Page 29: Editing Comparison Waveform Data

    7-2. EDITING COMPARISON WAVEFORM DATA 1) Directly input the target number of the “Comparison aria No. (Start)” and ”Comparison aria No. (End)”. When you click the OK button, the comparison area is reflected in the comparison waveform. 2) Select the target logic of the Comparison Logic from the list box.
  • Page 30 3) Directly input the target number of Waveform Comp. HI and Waveform Comp. LO you want to change it. NOTE ・ Even if you enter a numerical value (Waveform Comp. Hi/Lo), the value is not saved to the SD card yet. Click the Wave Comp.

  • Page 31: Saving Comparison Waveform Data

    7-3. SAVING COMPARISON WAVEFORM DATA 1) Click the Wave Comp. Save button on the menu window to display the Save Wave File window. 2) Select the comparison waveform you want to save from the Measurement Condition No. on the Save Wave File flame window.
  • Page 32 4) Click the Save button to save the waveform comparison file. The following dialog box appears if the setting file already exists in the specified folder. Click the OK button. The following dialog box appears after completing the saving. NOTE If the comparison waveform data of the Measurement Condition No.

  • Page 33: Program Version

    8. PROGRAM VERSION Capable of checking the updating program version that was saved in the SD card. 1) Click the Program Ver. button to display the Program version window. 2) Click the Browse button on the Program version flame window. 3) The Specify the ‘PVER.
