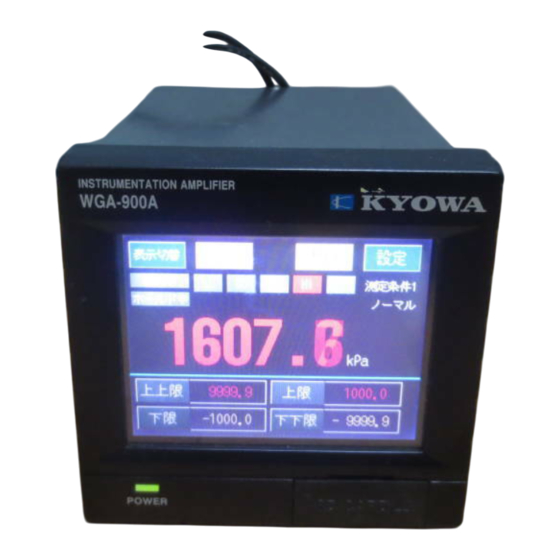

KYOWA WGA-900A Instruction Manual

Instrumentation amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Windows 2000/XP/Vista are trademarks of Microsoft Corporation, USA.
Generally, company names and trade names described in this Instruction Manual are trademarks or registered trademarks of
the companies.
This Instruction Manual may not be copied or reproduced, in whole or part, without consent of KYOWA.
Copyright © KYOWA ELECTRONIC INSTRUMENTS CO., LTD. All rights reserved.
The contents of the Instruction Manual are subjected to change without prior to notice.
INSTRUMENTATION AMPLIFIER
INSTRUCTION MANUAL
(SOFTWARE FOR SD CARD)
Thank you for purchasing KYOWA's product Instrumentation Amplifier WGA-
900A.
Read this Instruction Manual carefully in order to make full use of the high
performance capabilities of the product.
Do not use the product in methods other than described in this Manual.
IM-A-833b March 2011
WGA-900A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGA-900A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KYOWA WGA-900A

Summary of Contents for KYOWA WGA-900A

  • Page 1 Generally, company names and trade names described in this Instruction Manual are trademarks or registered trademarks of the companies. This Instruction Manual may not be copied or reproduced, in whole or part, without consent of KYOWA. Copyright © KYOWA ELECTRONIC INSTRUMENTS CO., LTD. All rights reserved.

  • Page 2: Table Of Contents

    IM-A-833b CONTENTS CONTENTS ··········································································································································································································································· 1 NOTATIONS USED IN THE INSTRUCTION MANUAL ·············································································································································· 2 IMPORTANT PRECAUTIONS WHEN USING PC SOFTWARE FOR SD CARD ··························································································· 2 1. PRODUCT OUTLINE ················································································································································································································· 3 2. INSTALLATION AND ACTIV ATION ·················································································································································································· 4 3. READING SETTING VALUE ·································································································································································································· 6 3-1.

  • Page 3: Notations Used In The Instruction Manual

    IMPORTANT PRECAUTIONS WHEN USING PC SOFTWARE FOR SD CARD NOTE Be sure to quit a software (hereinafter referred to as the Software) of the WGA-900A before removing the SD card or USB memory from the PC. If you try to remove the SD card from the PC by using the Safely Remove Hardware application before quitting the Software, the following alert window may appear.

  • Page 4: Product Outline

    SD card. ・Capable of saving the setting value to the SD card and capable of reading the value with the WGA-900A software. ・Capable of converting the waveform data to the CSV format, capable of displaying the data graphically on the EXCEL sheet, and capable of editing the data by reading the recorded waveform data in the SD card with the WGA-900A.

  • Page 5: Installation And Activation

    IM-A-833b 2. INSTALLATION AND ACTIVATION 1) Insert the accessory CD-R into the CD-ROM drive. 2) Copy a WGA-900A_Software for SD_V1.10.xls in the CD-R and paste it on the easy to find place such as desktop. 3) Click the WGA-900A_Software for SD_V1.10.xls icon. EXCEL2003, OS: Windows Vista is used in the following.
  • Page 6 IM-A-833b 6) Click the □ button on the menu window to widen the menu window. 7) Click the Minimize button on the menu window to narrow the menu window. 目次 目次...

  • Page 7: Reading Setting Value

    Select the 【WGA900A_SET.KS】 and click the Open button. ■ For setting file The setting file name is as follows and the file format is dedicated to the WGA-900A. W GA900A_SET.KS The setting file includes all setting values (excluding calibration value).

  • Page 8: Creating Default Value File

    3-2. CREATING DEFAULT VALUE FILE MEMO ・ For details of the default of the setting value, refer to “11-1. LIST OF SETTING ITEM” in the WGA-900A Instruction Manual for Hardware. 1) Click the Browse button on the Creating a new setting file flame window.

  • Page 9: Editing Setting Value

    Be sure to set the decimal point position of the Y-axis Start Point and Level Passed Way to the same position that is set in the Rd. Display of the WGA-900A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 10: Editing Setting Value Of Input Tab

    ・Be sure to set the decimal point position of the Min.Scale Zero Fix, Zero every Comp. Time: C. Range , and Additional Value to the same position that is set in the Rd. Disp. of the WGA-900A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 11: Editing Setting Value Of Comparison Tab

    Be sure to set the decimal point position of the compared values of comparators and Hysteresis Width to the same position that is set in the Rd. Disp. of the WGA-900A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 12: Editting Setting Value Of Measure Mode Tab

    IM-A-833b 4-4. EDITTING SETTING VALUE OF MEASURE MODE TAB 1) Click the Measure Mode tab to display the right window. 2) Select the Measurement Condition No. from the list box. If you change the Measurement Condition No.，the Measurement Condition No. and setting values on the Comparison window changes at the same time.

  • Page 13: 4-5.Editting Setting Value Of Initial Tab

    IM-A-833b 4-5.EDITTING SETTING VALUE OF INITIAL TAB 1) Click the Initial tab to display the right window. 2) Click the target Meas. Cond. Select Signal from the list box. 3) Select the target operation of the Key Lock from the list box. 4) Directly input the target number of the Backlight Time.

  • Page 14: Edditing Setting Value Of Option Tab

    Be sure to set the decimal point position of the Zero Display and Full Display of the D/A output to the same position that is set in the Rd. Disp. of the WGA-900A calibration. Or, the error window appears when the Read setting button is pressed.

  • Page 15: Saving Setting Value

    5. SAVING SETTING VALUE Saves the edited setting value to the SD card or other folders. Capable of updating the setting value by inserting the SD card that saves the setting file to the WGA-900A and by reading the file.

  • Page 16: Waveform Data

    6. WAVEFORM DATA Capable of converting the waveform data to the CSV format or capable of displaying the data on the EXCEL graph by reading the waveform data that was recorded in the SD card by the WGA-900A. 6-1. READING WAVEFORM DATA 1) Click the Waveform data button to display the Waveform data window.

  • Page 17: Creating Datasheet For Displaying Graph Of Waveform Data

    IM-A-833b 6-2. CREATING DATASHEET FOR DISPLAYING GRAPH OF WAVEFORM DATA 1) Select the target waveform data that you want to create the datasheet for displaying the graph on the List of waveform data window and put a checkmark in the box next to the data name.
  • Page 18 IM-A-833b 3) The Graph button is added on the menu window. Click the button to display the Graph displaying window. 4) The data of the first window of the recorded waveform is graphically displayed on the EXCEL sheet. 5) To graphically display the second window of the recorded waveform, click the list box or →...
  • Page 19 IM-A-833b 6) To delete the datasheet for displaying the graph, click the Delete the datasheet button on the bottom side of the Graph displaying window. The Do you want to delete the file No. ***? (***: Waveform data name) message appears. Click the Yes button to delete the datasheet.

  • Page 20: Changing Data Name And Deleting Data File Of Waveform Data

    IM-A-833b 6-3. CHANGING DATA NAME AND DELETING DATA FILE OF WAVEFORM DATA 6-3-1. Changing Data Name 1) Select the target waveform data that you want to change the data name on the List of waveform data window and put a checkmark in the box next to the data name.

  • Page 21: Deleting Data File

    IM-A-833b 6-3-2. Deleting Data File 1) Select the target waveform data that you want to delete on the List of waveform data window and put a checkmark in the box next to the data name. To put checkmarks to the all waveform data, click the Select all button on the lower right side of the window.

  • Page 22: Saving Csv Format Of Waveform Data

    IM-A-833b 6-4. SAVING CSV FORMAT OF WAVEFORM DATA 1) Select the target waveform data that you want to save on the List of waveform data on the window and put a checkmark in the box next to the data name. To put checkmarks to the all waveform data, click the Select all button on the lower right side of the window.

  • Page 23: Program Version

    IM-A-833b 7. PROGRAM VERSION Capable of checking the updating program version that was saved in the SD card. 1) Click the Program Ver. button to display the Program version window. 2) Click the Browse button on the Program version flame window.
