Summary of Contents for Heidolph Hei-SHAKE Reax 20

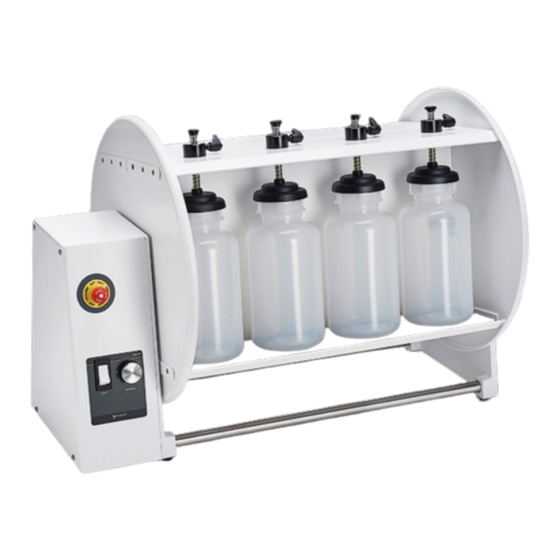

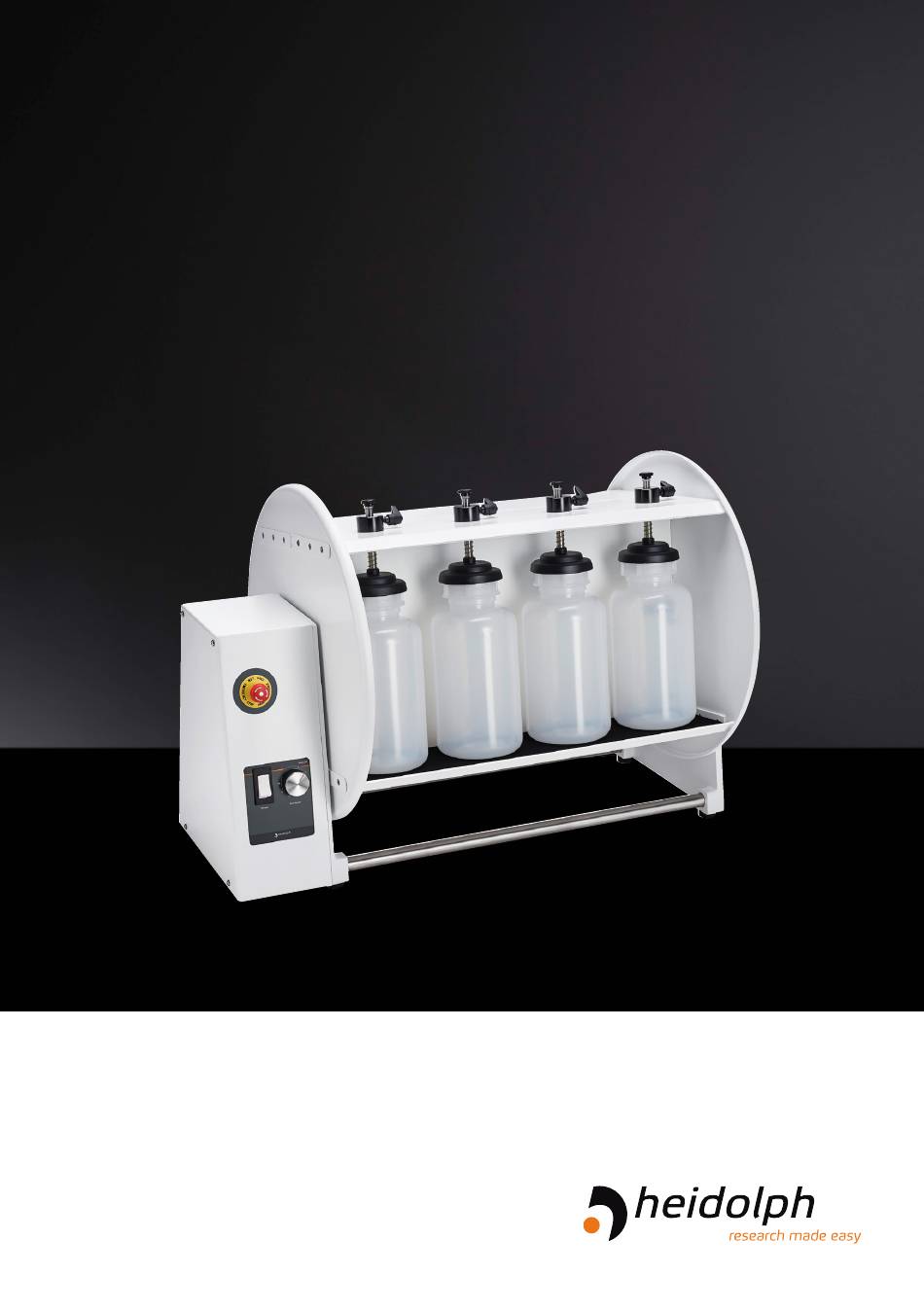

- Page 1 Unlimited Combinations Betriebsanleitung Operating instructions Notice d'instructions Hei-SHAKE Reax 20...
-
Page 2: Table Of Contents
Contents Introduction About this document ..................22 Typographic conventions ....................22 Copyright protection ....................22 General notes Directives applied, product certification ............. 23 California Residents ..................23 Residual risk ....................23 Intended use ....................23 Compliant use ....................23 Reasonably foreseeable misuse ............... 23 Transportation .................... - Page 3 Operation Switching the device on/off ................28 Equipment ....................28 Rotational mode.................... 29 Troubleshooting Troubleshooting ..................... 30 Appendix Technical specifications ................... 31 Accessories ....................32 Attachments for bottles of 500 ml and 1,000 ml ............32 Device service ....................33 General cleaning instructions ..................
-
Page 4: Introduction
No transfer to third parties, reproduction in any form, including excerpts, and by any means, as well as utilization and/or disclosure of the contents is permitted without the prior written consent of Heidolph Instruments GmbH & Co. KG. Any violation is subject to compen- sation for damage. -
Page 5: General Notes
General notes General notes Directives applied, product certification CE marking The device meets all requirements of the following directives: • European Machinery Directive, 2006/42/EC • EMC Directive, 2004/108/EC California Residents Important information for California residents regarding Prop 65. Please visit www.P65Warnings.ca.gov for more information. -
Page 6: Transportation
General notes The device may only be operated by authorized and instructed personnel. Training and qualifi- cation of the operating personnel as well as ensuring that the device is handled responsibly are the sole responsibility of the operator! Transportation During transportation, avoid severe shocks and mechanical stresses that can cause damage to the device. -
Page 7: Data Security
Prior to use, check that the device and the power supply cord are free of visible damage. Have repairs and/or maintenance work on the device carried out exclusively by an authorized electrician or by the technical service department of Heidolph Instruments. Always switch off and disconnect the device from the power supply, preventing reconnection, before carrying out maintenance work, cleaning, or repairs. -
Page 8: Environmental Protection
Noncompliance will invalidate any warranty claims against Heidolph Instruments. The operator is generally liable for all damage resulting from unauthorized changes or modifi- cations to the device, from the use of unapproved or non-genuine spare parts and accessories,... -
Page 9: Device Description
The professional mounting and positioning of the device including the supplied accessories is within the sole responsibility of the operator! Heidolph instruments accepts no responsibility for direct and/or indirect personal injury or damage to property resulting from failure to observe the instructions for the correct mounting and positioning of the device. -
Page 10: Switching The Device On/Off
Operation Operation Switching the device on/off Use the main switch [Power] at the front to turn the device on or off Equipment In delivery status, the device is equipped with pockets for bottles of 2,000 ml. You will need special pockets for bottles of 500 ml and 1,000 ml. These are available as optional accesso- ries (for options and mounting, see „Attachments for bottles of 500 ml and 1,000 ml“... -
Page 11: Rotational Mode
Use suitable pockets for the used vessels. Further information on avail- able accessories can be found on our website at www.heidolph.com! Before starting the rotational movement, make sure that all bottles are correctly closed and securely clamped. -
Page 12: Troubleshooting
Rotational movement stops Electrical fault (no engine unexpectedly noise) Contact Heidolph Sales or Service Mechanical defect (engine noise audible) In case of recurring errors please contact the responsible sales depart- ment or our technical service (see section „Contact details“ on page... -
Page 13: Appendix
Appendix Appendix Technical specifications Hei-SHAKE Reax 20 Reax 20 / 4 Reax 20 / 8 Reax 20 / 12 Dimensions (W × H × D) in mm 490 × 520 × 465 770 × 520 × 465 1050 × 520 × 465 Weight (kg) Permissible load max. 30 kg Maximum bottle diameter: 136 mm Bottle dimensions Maximum bottle height: 270 mm... -
Page 14: Accessories
Loosen the pressure plate using the hex wrench. ➜ Screw the spacer bolt with the retaining bolt (note correct position of the tension spring). ➜ Screw the pressure plate with the extended retaining bolt. Further information on available accessories can be found on our website at www.heidolph.com! -
Page 15: Device Service
Always replace the two device fuses in pairs with original manufacturer fuses. Further information on available accessories can be found on our website at www.heidolph.com! After fuse replacement, check the device for a safe condition according to IEC 61010-1. -
Page 16: Maintenance
Properly remove and dispose of residues of substances that are hazardous to health, the environment and biohazardous! Warranty statement Heidolph Instruments GmbH & Co. KG provides a three-year warranty for material and manu- facturing defects. Glass and wear parts, transportation damage, and damage resulting from improper handling or non-intended use of the product are excluded from the warranty.
