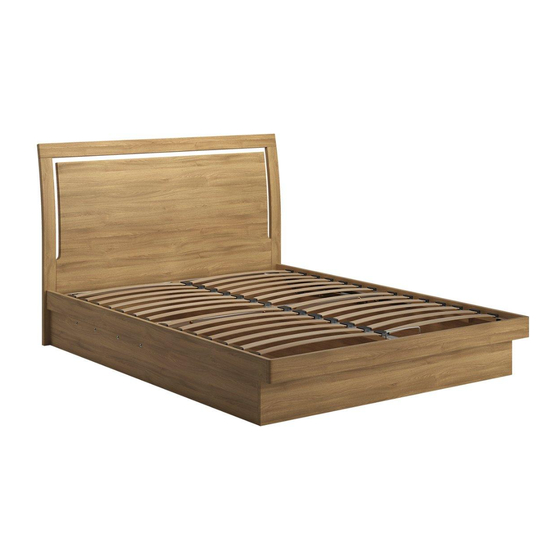

DREAMS ISABELLA BED Assembly Instructions Manual

Assembly Instructions

Minimum No. of people

recommended to assemble

This product.

Approx assembly time:

NOTE: It will require two people to assemble this bed. Assembly should be carried out in the room that

the bed will be used in.

Before you

start, here

is some

helpful advice

ISABELLA BED





hour

1. We suggest you spend a short time reading through this leaflet and then

follow the simple step by step instructions.

2. If you follow the instructions carefully the end result should be worth the effort.

3. Do not discard any of the packaging until you have checked that you

have all the parts and the pack of fittings.

4. Assemble this product on a carpet.

5. To ensure an easier assembly, we strongly advise that all fittings are only

finger tightened during initial assembly. Only upon completion of the

Assembly should all fixing points be fully tightened.

6. We recommend a periodic check on all fixing points to make sure they remain

fully tightened.

7. Keep glue and fittings out of children's reach.

In the unlikely event that this product has missing or damaged parts, please

03442 920000

call

to obtain spares

1 of 5

Table of Contents

Need help?

Do you have a question about the ISABELLA BED and is the answer not in the manual?

Page 1 ISABELLA BED Assembly Instructions   Minimum No. of people recommended to assemble This product. hour Approx assembly time: NOTE: It will require two people to assemble this bed. Assembly should be carried out in the room that the bed will be used in.
Page 2 Component parts and fittings contained in the box PARTS Fittings M8 x80mm Bolt 4pcs Φ8 Washer 4pcs 1 piece M8 Barrel Nut 4pcs Locking Nut 16pcs Locking Pin 16pcs 2 pieces 1 piece Φ10Dowel 4pcs Φ8 Dowel 12pcs 1 piece 1/4″JCN Nut 4pcs 2 pieces 2 pieces...
Page 3 ASSEMBLY STEP 1 1) Fit wood dowels (G) into holes in the ends of side rails (4) and center rail (5). Screw Locking Pins (E) into the headboard panel (3). 2) Use Locking Nuts (D) to fix the headboard onto side panel (4) and center panel (5).
Page 4 ASSEMBLY STEP 3 1) Fit the headboard (1) to the unit. STEP 4 1) Fit the mattress support rails (9) to the slat frame (8). STEP 5 1) Screw the Nut (N) onto the piston bracket . 4 of 5...
Page 5 ASSEMBLY STEP 6 1) Two people carefully lower the slat frame onto the piston bracket . Secure by threading bolts (J) to slat frame on the piston bracket . STEP 7 1) Position base boards (6&7) into the bed frame. 5 of 5...
Page 6 Carton Information Carton Dimensions (CM) Box 1 Box 2 Box 3 Box 4 Box 5 Box 6 Size Weight Weight Weight Weight Weight Weight Single Double 27.8 14.3 32.7 40.3 King 27.8 14.3 32.7 13.5 Super King Carton Content - Parts as per Assembly Instructions Size Box 1 Box 2...
