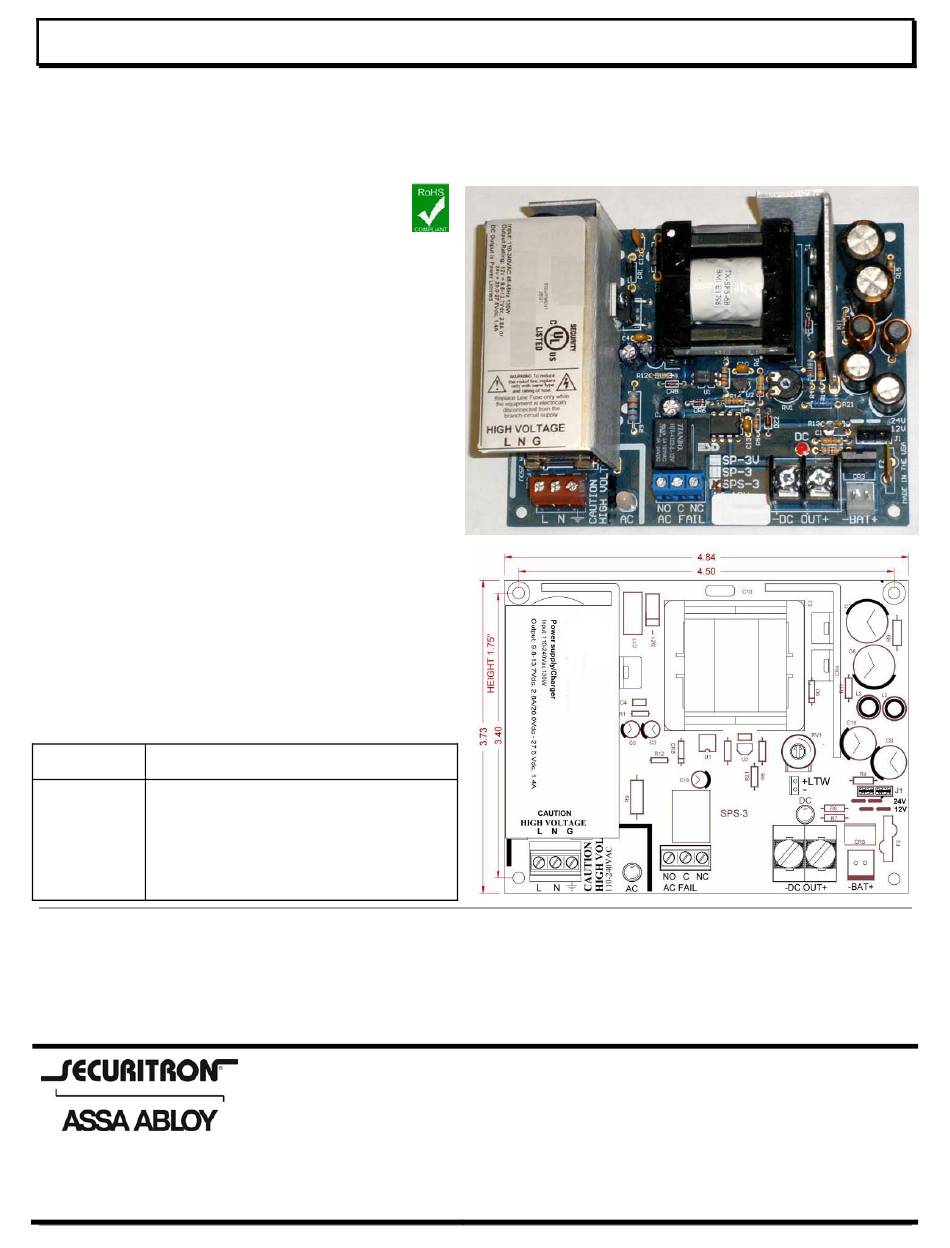

Installation Guide
9.8Vdc-13.7Vdc @ 2.8 Amps max / 20.0Vdc-27.5Vdc @ 1.4 Amps max
Features AQD3 Series:
Small – Self Contained – Efficient
Universal AC Input 110-240vac
Extraordinary Brown Out Capability
9.8Vdc-13.7Vdc, 2.8A/20.0Vdc-27.5Vdc, 1.4A
Selectable Continuous Duty
Very Clean Output - 10mv ripple rms
Input and Output Surge Protection
Power Limited Output with Thermal Protection
AC and DC LED's
Quality Manufactured in the USA with a lifetime
Warranty
Outputs are Power Limited
Provided in Standard Enclosure 14"x8.5"x3.5"
Precise Battery Regulation for all sealed Lead
Acid Battery(s)
Battery Online, No Drop or Switch Over with AC
Power Fail
Reverse Battery Protection
Comes with plug in battery cable assembly
UL and cUL tested to Standards UL 603 Burglar
Alarm Power Supplies, UL 294 Access Control
Units, and ULC-S318-96 Canadian Standard for
Power Supplies for Burglar Alarm Systems
Relay "C" Contacts Indicates AC Power Status
LTW Limited Warning of stand by battery(s)
Battery Disconnect on depleted Battery(s)
Ordering examples:
Supervised Power Supply/Charger module
AQD3
with Standard Enclosure 14"x8.5" x 3.5"
-8F8R
AQD3 with one PDB-8F8R
-4C
AQD3 with one PDB-4C
-8C
AQD3 with one PDB-8C
-4F
AQD3 with one PDB-4F
-8F
AQD3 with one PDB-8F
-1R
AQD3 with one PDB-FT
-8C1R
AQD3 with one PDB-8C1R
Securitron Magnalock Corporation
st
10027 S. 51
St., Ste. 102
Phoenix, AZ 85044
AQD3 Series 12/24 Power Supply
Power-limited
leader
solutions.
Page 1 of 15
AQD3 12/24 Series Power Supplies
Doc.# 500-33000 Rev A Installation specifications subject to change without notice
ASSA ABLOY, the global
in door opening
Phone: (800) MAGLOCK
customercare@securitron.com
www.Securitron.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Assa Abloy Securitron AQD3 Series
Summary of Contents for Assa Abloy Securitron AQD3 Series
- Page 1 AQD3 with one PDB-4F AQD3 with one PDB-8F AQD3 with one PDB-FT -8C1R AQD3 with one PDB-8C1R Doc.# 500-33000 Rev A Installation specifications subject to change without notice ASSA ABLOY, the global leader in door opening solutions. Securitron Magnalock Corporation 10027 S. 51 St., Ste.
- Page 2 AQD3 Series Installation continued Description The AQD3 Series Power Supplies are heavy duty self contained, efficient clean off-line switching power supplies that are selectable between 9.8Vdc-13.7Vdc at 2.8 Amps, and 20.0Vdc-27.5Vdc at 1.4 Amps. With the universal AC input, these supplies may be connected anywhere in the world with no plug-in transformer or any alterations. These power supplies have exceptional brown out capability with operation down to 60vac.
- Page 3 AQD3 Series Installation continued AQD3 Supervised added features: Low Battery Disconnect (Battery cut-off) 12v/24v ........9.8Vdc/Vdc/19.6Vdc DC Output Electronic Power Limited ...... Yes This feature limits the output current to a maximum Physical AQD3 peak of 6Amps to comply with UL Power Limiting For Indoor Use Only requirement.
- Page 4 AQD3 Series Installation continued AQD3 , Power Supply/Charger Installation Guide The AQD3 with standby battery(s) provide an uninterruptible 9.8Vdc-13.7Vdc or 20.0Vdc-27.5Vdc power source. The Power Distribution modules provide multiple fused outputs, Fire Interface, and Access control Interface. The DC output on the AQD3 power supply is Power Limited. This makes all subsequent outputs power limited. 1.
- Page 5 AQD3 Series Installation continued Battery Selection The table below shows typical standby time in hours for various loads and batteries. The table works for either 12v or 24v batteries. The AQD3 has been evaluated by UL with an 18AH sealed lead acid battery for 12v and (2) - 9AH batteries for 24v to meet the 4 hour stand by requirement.
- Page 6 AQD3 Series Installation continued AQD3 Series Instructions: Doc.# 500-33000 Rev A Page 6 of 15...
- Page 7 AQD3 Series Installation continued AQD3 Series Instructions: Doc.# 500-33000 Rev A Page 7 of 15...
- Page 8 AQD3 Series Installation continued AQD3 Series Instructions: Doc.# 500-33000 Rev A Page 8 of 15...
- Page 9 AQD3 Series Installation continued AQD3 Series Instructions: Doc.# 500-33000 Rev A Page 9 of 15...
- Page 10 AQD3 Series Installation continued PDB-4F / PDB-8F PDB-4F Multi Output PDB-4C Low Voltage Power Distribution Modules PDB-8F Life Time Warranty PDB-8C Features/Specifications: Converts a single AC or DC (12 or 24v) Input to 4 or 8 protected outputs with fuses or circuit breakers ...
- Page 11 AQD3 Series Installation continued PDB-FT Fire Transfer Relay with EOL Trigger Features: Non Latching or Latching mode 12 or 24VDC Operation Reverse polarity protected Normally ON & Normally OFF Output Output LED’s indicate condition Outputs can be Triggered with: 1.
-
Page 12: Installation Instructions
PDB-8F8RAccess Control with EOL Fire Interface Installation Instructions PDB-8C1R DC Power Distribution with Supervised Interface module Distributed Power Control Interface for Fire, Access, HVAC, Elevator, and Security Features: 8 Power Limited Outputs with Auto-Resetting Circuit Breakers Each Output is Individually Selectable to Turn On, Turn Off, or always ON when Triggered ... - Page 13 AD3 Series Installation Instructions PDB-8F8R Power Distribution for Access Control with Fire Interface module Controls and Distributes Power with 8 Control Relays with an EOL Fire trigger Interface Power Interface for Access Control, CCTV, Fire, HVAC, Elevator, and general low voltage system control Note: Fire, HVAC and Elevator Control has not been evaluated by UL ...
- Page 14 AQD3 Series Installation Instructions products. J1 Connects (-) Power to (-) Control, J2 Normally no connection is made here. Note: You must add Connects (+) Power to (+) Control. By default J1 & J2 are this current to your total device load calculations to be sure connected together.
- Page 15 AQD3 Series Installation Instructions PDB-8F8R Typical Applications Single Power Source Application Fig 1 Dual/Se parate Power Supplies Fig 3 AQD3 Series Instructions Doc# 500-33000 Rev.A Page 15 of 15...
