Securitron
Intelligent Power System
Quick Start Guide

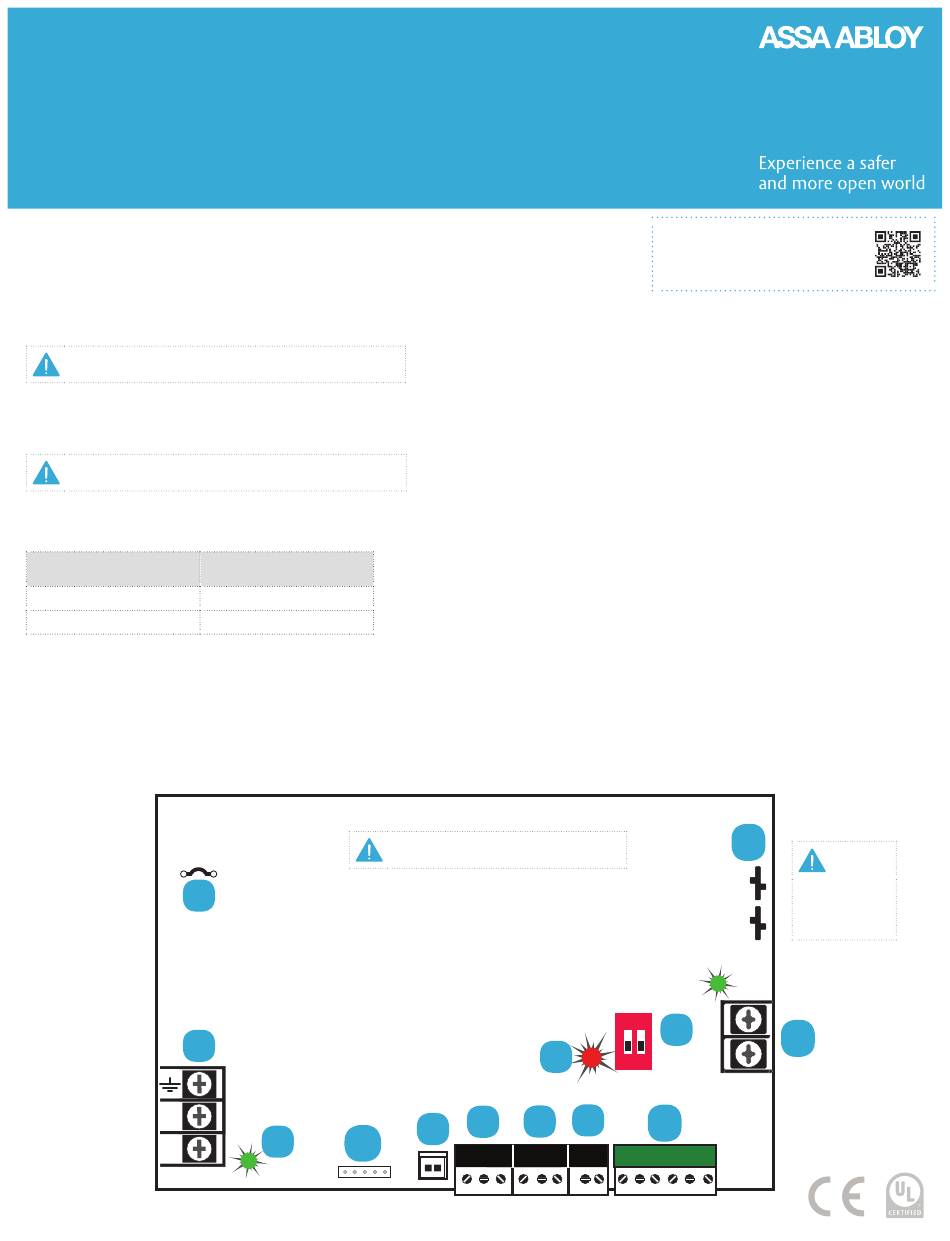

Overview
This guide gives the basic information needed to install a system
containing a single Securitron AQL Power supply for most applications.
1
AC Input Voltage Selection – Leave INTACT
for 120 V input. CUT for 230 V input.
Failure to cut this jumper when using the Securitron AQL
with a 230 VAC input will result in damage to the system.
2
AC Input – The primary AC connection. Cut JP1 for 230 VAC input.
3
AC ON LED (GREEN) – Indicates a valid AC input voltage is
present. Missing AC is indicated by this LED extinguishing.
Always confirm the absence of AC power with a meter
before servicing to prevent electric shock.
4
FAI LED (RED) – Indicates activation of the Fire Alarm Input.
5
Charge Current / Main output FAI Configuration Switches
SWITCH 1
FAI Selection
OFF = Constant Output
ON = Output switches on FAI
6
FLEX IO Connector – Supplies FAI status to any accessory
boards. Receives fault signal from accessory boards.
7
System Fault Contact – Contact labeling is adjacent to the
terminals and shown in the unpowered (FAULT) condition.
1
2
N
L
AQL102/104
®
SWITCH 2
Charge Current
OFF = High Charge Current
ON = Low Charge Current
For UL compliance, the AC fault contact must
be monitored by a listed control panel
3
13
8
AC Fault Contact – Contact labeling is adjacent to the
terminals and shown in the unpowered (FAULT) condition.
AC fault is indicated on a missing AC Input voltage.
9
AUX Voltage – The auxiliary voltage is a fixed
Class 2 Power Limited DC output.
10
FAI Input – The input from the FACP. Can be wired to
accept a NO, NC, Open Collector, or Voltage input.
11
Main Output – This is the main DC output of the power
supply. The output can either be constant or switched based
on the configuration setting of switch 1 (see number 5 on this
page). The DC ON LED will light: GREEN 12 V | BLUE 24 V.
12
Battery Terminal Connection – The connection
for the optional backup battery. Battery set voltage
must match the DC output voltage setting.
Power Supply Fixed Voltage:
Securitron AQL102: 12 V / 10 Amps
Securitron AQL104: 24 V / 10 Amps
13
DataLink Connection – This connector allows optional
programming and monitoring of the Securitron AQL power
supply via an optional NetLink network module. See the
instructions for the Netlink module for more information.
FAI and Charge
Current settings
4
9
7
8
6
SYS FLT AC FLT
AC FLT
AUX
AUX
SYS FLT
Specifications and more details
found in the full manual here.
