AQE30E
Power over Ethernet Single Port Extractor
Installation Manual
Description
The AQE30E Power over Ethernet (PoE) power extractor is
designed to provide 12 volts (V) direct current (DC) and up
to a maximum of 25 watts (W) of output power to a non-PoE
Internet Protocol (IP) device (e.g., IP camera) from a PoE
source.
RJ45 connectors are provided for data input and output, and
two terminal strips are provided for the DC output and power
level selection.
The AQE30E is compatible with the Institute of Electrical and
Electronics Engineers (IEEE) Standard 802.3, "Ethernet," and
is capable of accepting PoE connections of Mode A, Mode B,
or Mode A and B simultaneously.
Operation with reverse polarity at the PoE input is also sup-
ported.
Regulatory Information
The equipment discussed within this manual has been tested
to the following standards:
•
UL Standard UL294b, "The Standard of Safety for
Access Control System Units"
•
International Electrotechnical Commission (IEC)
and UL Standard IEC/UL 60950-1, "Components"
•
Canadian Standards Association Standard C22.2
No. 205-M1983, "Signal Equipment"
Specifi cations
Input Voltage
Input Current
Output Power
Output Voltage
Data Rate
ESD Immunity
RJ45 Pinout
Operating Ambient Temperature
Storage Temperature
Operating Humidity
Size
Weight
Mounting the AQE30E Series Module

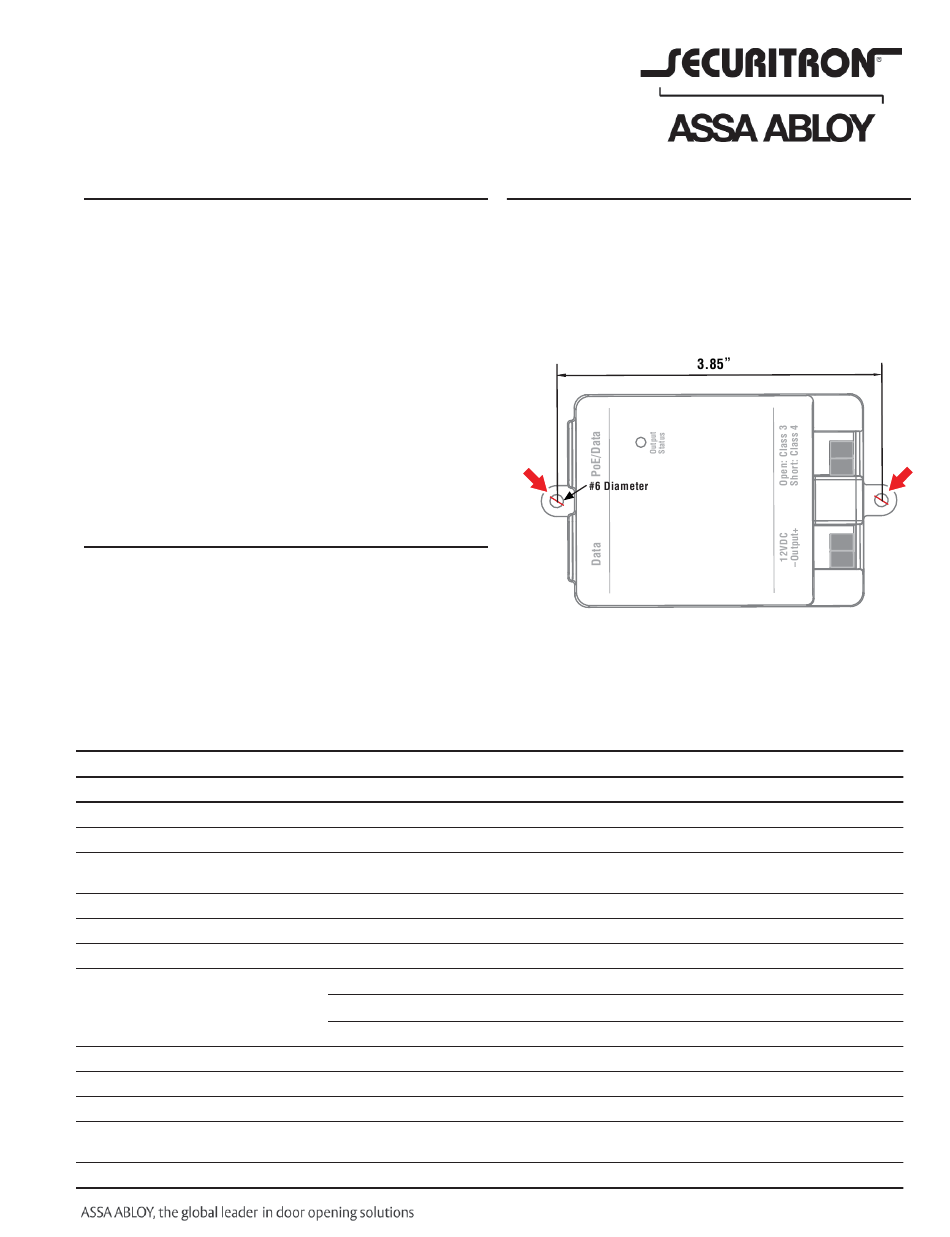

The AQE30E mounts using two screws in the mounting
tabs. The unit must be mounted in a secure, indoor, dry
location to a suitable surface, using suitable hardware.
AQE30E
50V Nominal (42.5 to 57 VDC compatible to IEEE802.3)
0.7 Amperes (A) Maximum (Max)
25W Max (when power select terminals are shorted) 13W Max (when power select
terminals are open)
12 VDC
10/100/1000 Base-T
8 kilovolts (kV)
Input power connection 1: Pins 1, 2; Pins 3, 6; (any polarity)
Input power connection 2: Pins 4, 5; Pins 7, 8; (any polarity)
Data: Pins 1, 2, 3, 4, 5, 6, 7, 8
0 to 49°C, Indoor Dry Locations
–20 to +70°C
5 to 95% (Non-Condensing)
4.20" L x 2.50" W x 1.20" D
(107mm L x 64mm W x 31mm D)
0.25 lb (0.11 kG)
500-33610, Rev A
