Assa Abloy Securitron AQL4 Quick Start Manual

Securitron
Intelligent Power System
Quick Start Guide

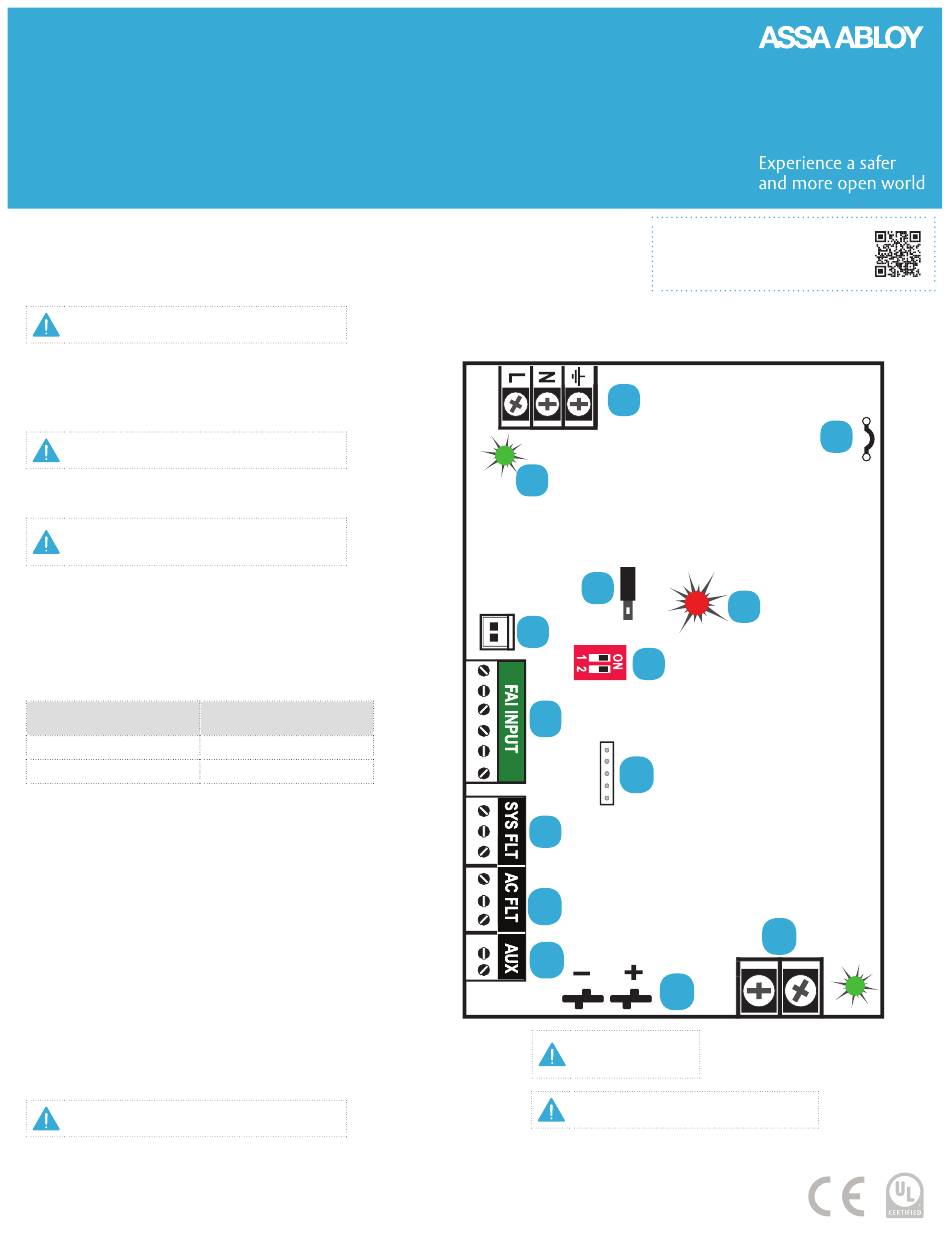

Overview

1
AC Voltage Select Jumper – Leave INTACT
for 120 V input. CUT for 230 V input.
Failure to cut this jumper when using the Securitron AQL
with a 230 VAC input will result in damage to the system.
2
AC Input primary AC connection.
3
AC On LED (GREEN) – Indicates a valid
AC input voltage is present. Missing AC is
indicated by this LED extinguishing.
WARNING: Always confirm the absence of AC power
with a meter before servicing to prevent electric shock.
4
Voltage Selection Jumper – Selects the
output voltage between 12 V and 24 VDC.
WARNING: Remove AC input power before changing
the voltage select switch to avoid damaging
the power supply or connected equipment.
5
FAI LED (RED) – Indicates activation
of the Fire Alarm Input.
6
FlexIO Connector – Supplies FAI status
to any accessory boards. Receives fault
signal from accessory boards.
7
FAI & Charge Current Configuration Switches
SWITCH 1
FAI Selection
OFF = Constant Output
ON = Output switches on FAI
8
System Fault Contact – Contact labeling
is adjacent to the terminals and shown in
the unpowered (FAULT) condition.
9
AC Fault Contact – Contact labeling is
adjacent to the terminals and shown in the
unpowered (FAULT) condition. AC fault is
indicated on a missing AC Input voltage.
10
Auxiliary Voltage – A fixed Class 2 DC output.
11
FAI Input – The input from the FACP. Can be wired to
accept a NO, NC, Open Collector, or Voltage input.
12
Battery Terminal Connection – For the
optional battery backup. Battery set voltage
must match the DC output voltage setting.
13
Main DC Output – Of the power supply. The
output can either be constant or switched based
on the configuration setting of Switch 1.
NOTE: The DC ON LED will be green with voltage
present, if set to 12 VDC or blue if set to 24 VDC.
14
DataLink Connection – This connector allows
optional programming and monitoring of the
Securitron AQL power supply via an optional
NetLink network module. See the instructions
for the Netlink module for more information.
AQL4
®
SWITCH 2
Charge Current
OFF = High Charge Current
ON = Low Charge Current
Specifications and more details
found in the full manual here.
2
3
12 V
4
24 V
6
7
11
14
8
9
10
12
Observe battery
polarity or damage
may result
For UL compliance, the AC fault contact must
be monitored by a listed control panel
(Downloadable pdf)
AC Select
1
5
13
