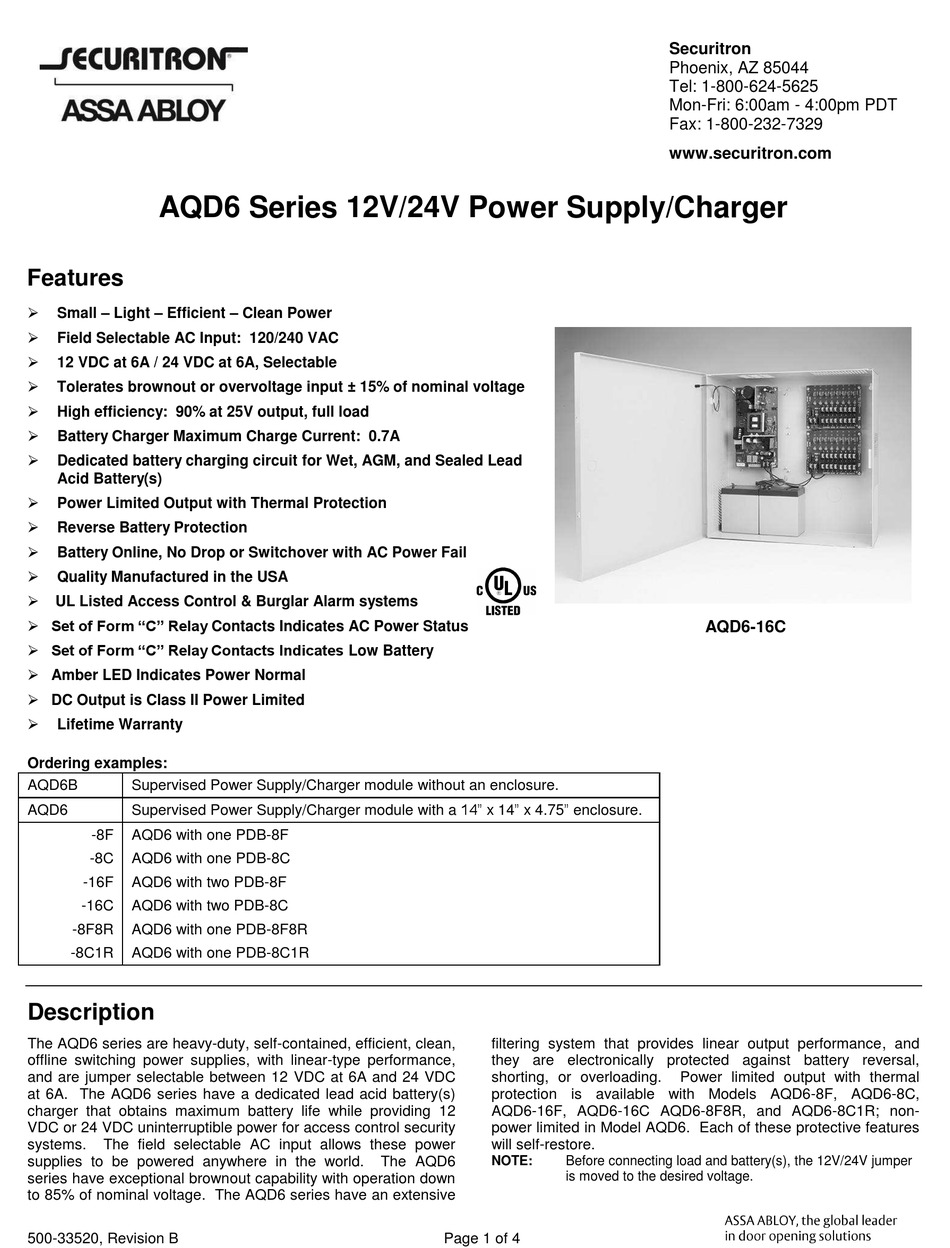

AQD6 Series 12V/24V Power Supply/Charger

Features

Small – Light – Efficient – Clean Power


Field Selectable AC Input: 120/240 VAC

12 VDC at 6A / 24 VDC at 6A, Selectable

Tolerates brownout or overvoltage input ± 15% of nominal voltage

High efficiency: 90% at 25V output, full load

Battery Charger Maximum Charge Current: 0.7A

Dedicated battery charging circuit for Wet, AGM, and Sealed Lead
Acid Battery(s)

Power Limited Output with Thermal Protection

Reverse Battery Protection

Battery Online, No Drop or Switchover with AC Power Fail

Quality Manufactured in the USA

UL Listed Access Control & Burglar Alarm systems
 Set of Form "C" Relay Contacts Indicates AC Power Status
 Set of Form "C" Relay Contacts Indicates Low Battery
 Amber LED Indicates Power Normal
 DC Output is Class II Power Limited

Lifetime Warranty

Ordering examples:

AQD6B Supervised Power Supply/Charger module without an enclosure.
Supervised Power Supply/Charger module with a 14" x 14" x 4.75" enclosure.
AQD6
-8F AQD6 with one PDB-8F
-8C AQD6 with one PDB-8C
-16F AQD6 with two PDB-8F
-16C AQD6 with two PDB-8C
-8F8R AQD6 with one PDB-8F8R
-8C1R AQD6 with one PDB-8C1R

Description

The AQD6 series are heavy-duty, self-contained, efficient, clean,
offline switching power supplies, with linear-type performance,
and are jumper selectable between 12 VDC at 6A and 24 VDC
at 6A. The AQD6 series have a dedicated lead acid battery(s)
charger that obtains maximum battery life while providing 12
VDC or 24 VDC uninterruptible power for access control security
systems. The field selectable AC input allows these power
supplies to be powered anywhere in the world.
series have exceptional brownout capability with operation down
to 85% of nominal voltage. The AQD6 series have an extensive
500-33520, Revision B
filtering system that provides linear output performance, and
they are electronically protected against battery reversal,
shorting, or overloading.
protection is available with Models AQD6-8F, AQD6-8C,
AQD6-16F, AQD6-16C AQD6-8F8R, and AQD6-8C1R; non-
power limited in Model AQD6. Each of these protective features
will self-restore.
The AQD6 NOTE:
Page 1 of 4
Securitron
Phoenix, AZ 85044
Tel: 1-800-624-5625
Mon-Fri: 6:00am - 4:00pm PDT
Fax: 1-800-232-7329
www.securitron.com

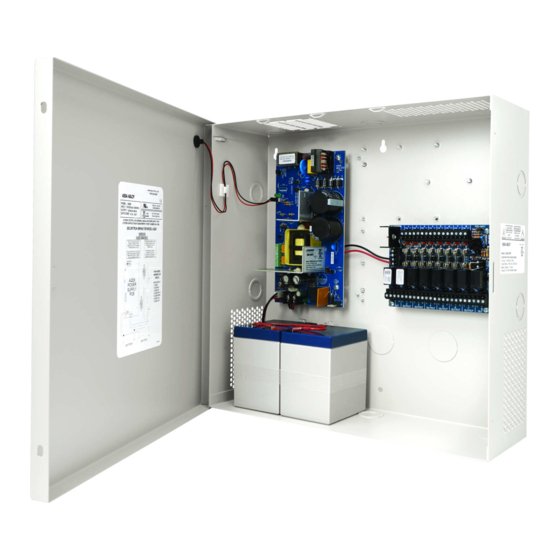

AQD6-16C
Power limited output with thermal
Before connecting load and battery(s), the 12V/24V jumper
is moved to the desired voltage.
