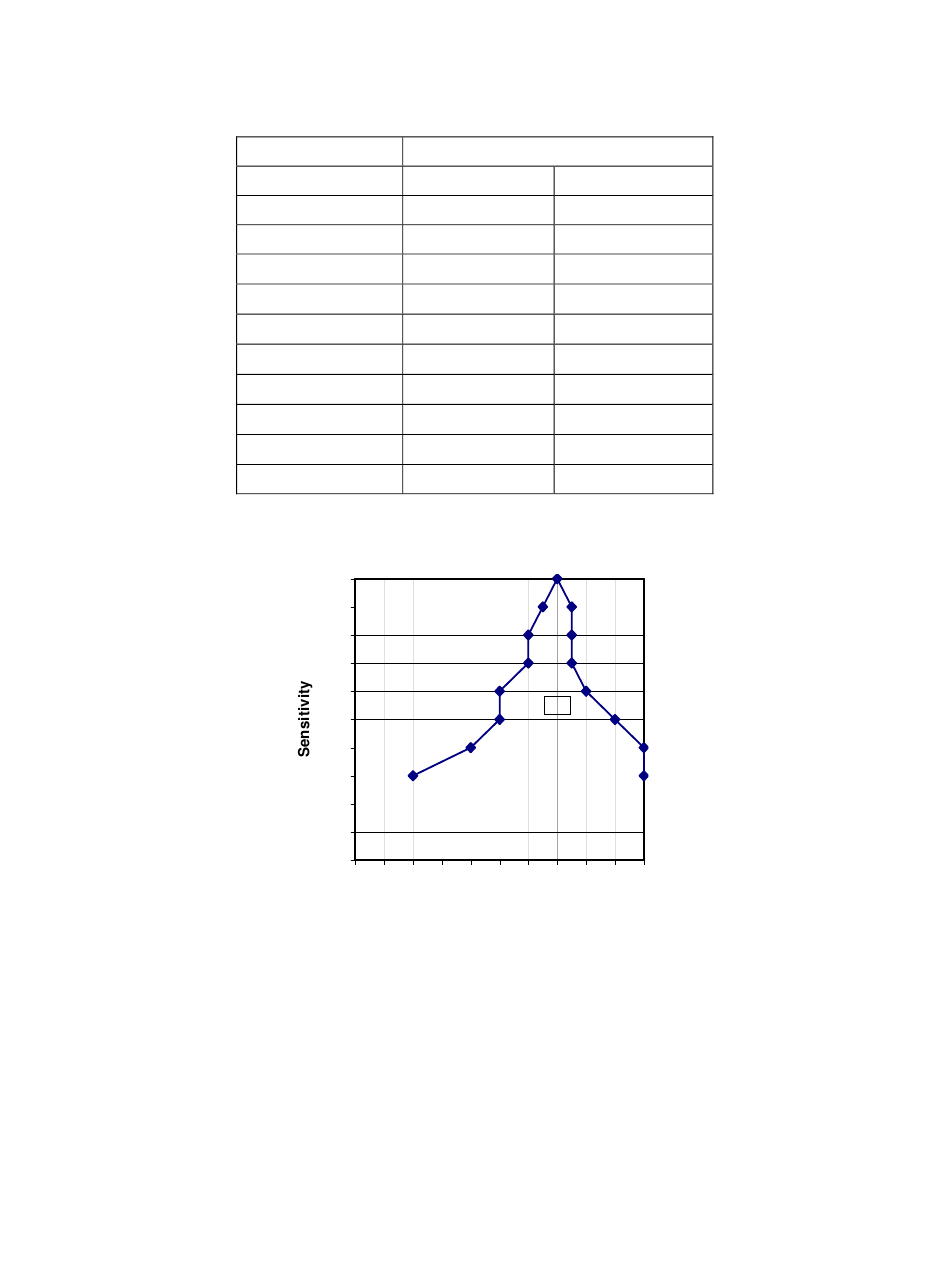

FIGURE 6
SAMPLE SENSITIVITY GRAPH
Sensitivity
S10
S20
S30
S40
S50
S60
S70
S80
S90
S100
100
90
80
70
60
50
40
30
20
10
0
0 10 20 30 40 50 60 70 80 90 100
X = Optimum settings for consistent product
= Optimum settings for less uniform product
Phase
Low High
20 100
40 100
50 90
50 80
60 75
60 75
65 75
X
Phase
