WaterLogic FIREWALL WL CUBE User Manual

Hide thumbs Also See for FIREWALL WL CUBE:

Technical manual (22 pages)

Table Of Contents

Quick Links

Download this manual

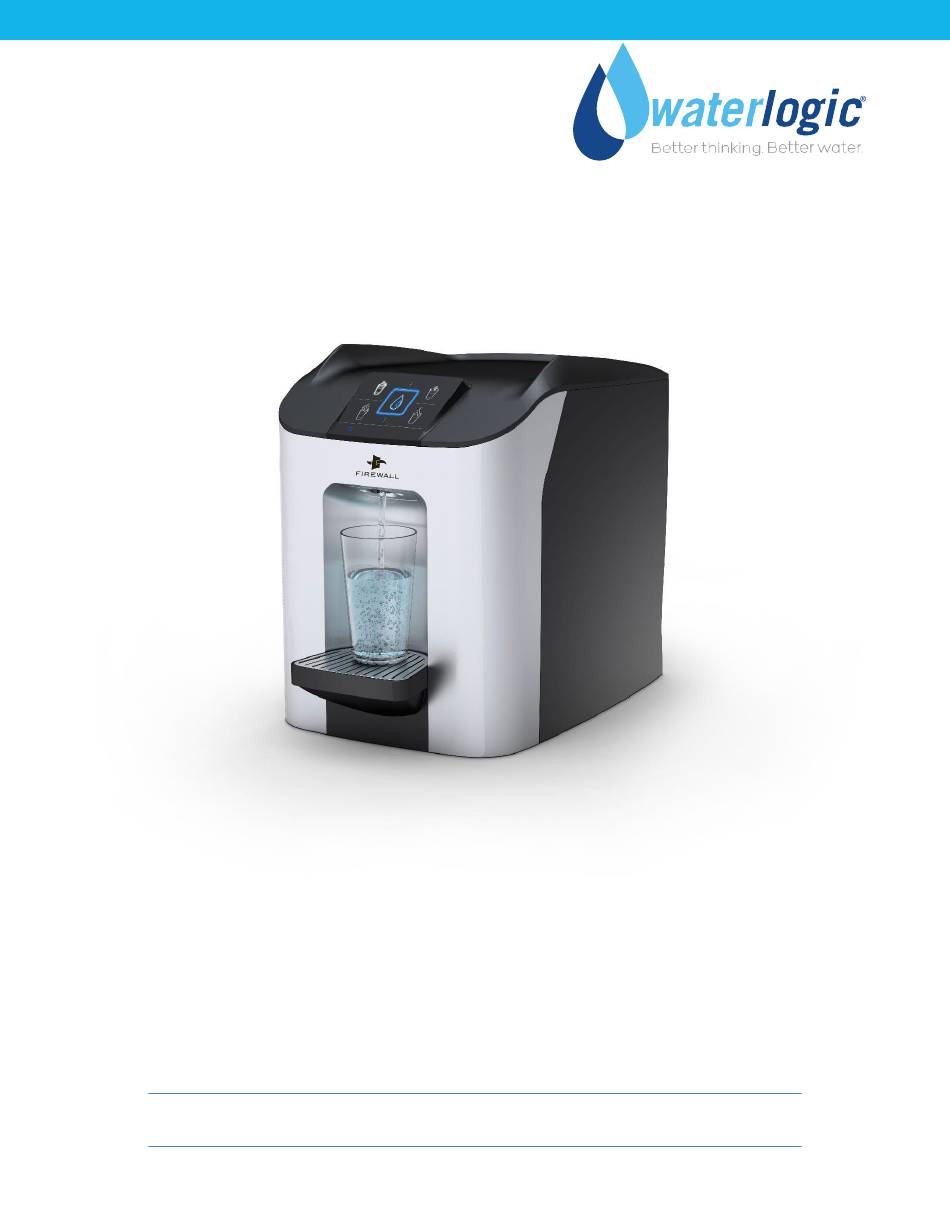

WL CUBE

USER GUIDE

Waterlogic Trading LTD,

WLI Trading Limited, Second Floor, Suite 4, Beacon Court, Sandyford, Co. Dublin, Ireland

Tel: + 353 (0) 1293 1960

Fax: + 353 (0) 1293 1052

For Technical Support Email: support@waterlogicsupport.zendesk.com

WLI (UK) LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN, United Kingdom

Table of Contents

Need help?

Do you have a question about the FIREWALL WL CUBE and is the answer not in the manual?

Questions and answers

Summary of Contents for WaterLogic FIREWALL WL CUBE

Page 1 WL CUBE USER GUIDE Waterlogic Trading LTD, WLI Trading Limited, Second Floor, Suite 4, Beacon Court, Sandyford, Co. Dublin, Ireland Tel: + 353 (0) 1293 1960 Fax: + 353 (0) 1293 1052 For Technical Support Email: support@waterlogicsupport.zendesk.com WLI (UK) LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN, United Kingdom...
Page 2 Waterlogic and Authorized Waterlogic Dealers employ trained service personnel who are experienced in the installation, function and repair of Waterlogic equipment. This publication is written for use by these qualified individuals. Waterlogic encourages users to learn about products, however, we believe that product knowledge and service is best obtained by consulting Waterlogic or an Authorized Waterlogic Dealer.
Page 3: Table Of Contents
TABLE OF CONTENTS USER GUIDE • Safety Alert Symbols ..............4 • Safety Precautions ..............4 • Features and Benefits ............... 6 • Firewall Purification System ............7 • Certifications ................8 • Model Designations and General Specifications ....... 9 •...
Page 4: Safety Alert Symbols
The installation, maintenance, sanitizing and any repair must be performed by qualified persons trained by Waterlogic International or their approved distributors only. Do not remove any panel or cover to protect against electrical shock and exposure to UV radiation.
Page 5 CAUTION! USE A WATER PRESSURE REGULATOR. Waterlogic will not be responsible for injury or damage caused by excessive water pressure. Input or feed pressure must be 2.7Bar (40 psi) to 4Bar (60 psi).
Page 6: Features And Benefits
WL CUBE FEATURES AND BENEFITS Ambient, Cold, Hot, and Extra Hot Water Pressure Fed Ambient, Cold, Hot, and Extra Hot Selections to meet a wide range of customer demands. Volume Storage and Water Capacity 1.4 liters of Cold, 1.3 liters of Hot Water Storage. BioCote®Anti-Microbial Protection Certain plastic, silicon, and painted surfaces surrounding the dispensing areas and drip tray are infused with an exclusive additive called BioCote®.
Page 7: Firewall Purification System
EXCLUSIVE FIREWALL PURIFICATION SYSTEM Our breakthrough Firewall™ technology delivers 99.9999% bacteria free water right at the point of dispense. Firewall™ delivers the safest water possible through a sanitary faucet right to your cup. Certified to the Highest Standards WL CUBE User Guide Page 7 - Revision: EU 18-09-2020...
Page 8: Certifications
Intertek Labs (ETL) Certified the WL CUBE Water Treatment System to ANSI/UL 399 Standard for Drinking Water Coolers. BPA Free - Waterlogic tests for BPA and declares that all its products are Bisphenol-A FREE and contain no harmful BPA plastics.
Page 9: Model Designations And General Specifications
WL CUBE MODEL/PART DESIGNATIONS MODEL - BRAND NAME AVAILABLE OPTIONS PART NUMBER WL CUBE F-FWCU1-M-HCA – Hot, Cold, Ambient WL-CUBE-M WL CUBE GENERAL SPECIFICATIONS Description Cube Machine Size 296mm (W) x 425mm (D) x 375mm (H) Machine Weight 17Kg Power Supply 220V/50Hz or 120V/60Hz UV Lamp 13 Watt...
Page 10: Electrical And Shipping Specifications
WL CUBE ELECTRICAL SPECIFICATIONS 15 amp 120V/60HZ ELECTRICAL SUPPLY AC 220V/50Hz or 120v/60Hz 13 amp 220V/50HZ COMPONENT POWER (approximate) DRAW (approximate) 4.16 Amps Heater 500 Watts 2.27 Amps 1 Amp Compressor 120 Watts 0.54 Amps 0.01 Amps 2 Watts 0.009 Amps 0.108 Amps Firewall UV System 13 Watts...
Page 11: User Interface And Operating Instructions
USER INTERFACE AND OPERATING INSTRUCTIONS Select hot icon to select variant Select the relevant icon, then press and hold until icon has illuminated and hold the dispensing button orange. Then press and hold the until the desired amount is dispense button, hold until desired dispensed.
Page 12 DISPENSE BUTTON Once variant is selected press and hold dispense icon to dispense desired amount, release to stop dispensing. TO DISPENSE PURIFIED COLD WATER: Select cold icon to select variant and press and hold the dispensing button. Release to stop dispense. There will be a 2 second initial delay as Firewall purifies cold water and sanitizes the faucet.
