WL2000
MANUAL
Waterlogic Trading LTD,
WLI Trading Limited, Second Floor, Suite 4, Beacon Court, Sandyford, Co. Dublin, Ireland
Tel: + 353 (0) 1293 1960
Fax: + 353 (0) 1293 1052
For Technical Support Email: support@waterlogicsupport.zendesk.com
WLI (UK) LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN, United Kingdom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WaterLogic WL2000

Summary of Contents for WaterLogic WL2000

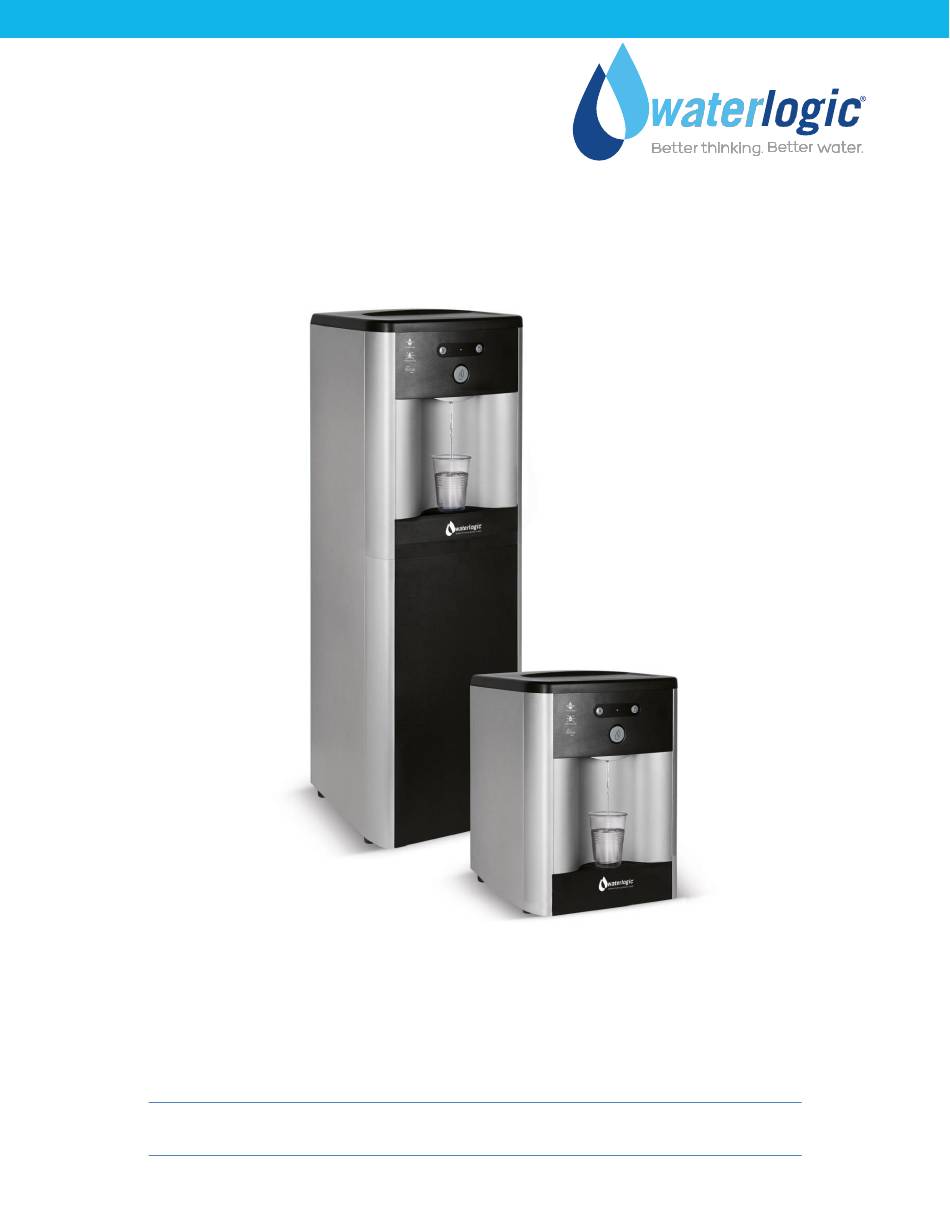

  • Page 1 WL2000 MANUAL Waterlogic Trading LTD, WLI Trading Limited, Second Floor, Suite 4, Beacon Court, Sandyford, Co. Dublin, Ireland Tel: + 353 (0) 1293 1960 Fax: + 353 (0) 1293 1052 For Technical Support Email: support@waterlogicsupport.zendesk.com WLI (UK) LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN, United Kingdom...
  • Page 2 The Waterlogic WL2000 Water Treatment System provides exceptional quality and great tasting water with every use. INTRODUCTION Carefully read and follow all instructions to ensure proper and efficient operation of your WL2000 Water Treatment System. Contact Waterlogic or an Authorized Waterlogic Dealer if you have any questions.

  • Page 3: Table Of Contents

    • Free Standing Draining Procedure ......... 34 • Installation Instructions ............35 TROUBLESHOOTING GUIDE • Power Troubleshooting ............37 • Dispense Troubleshooting ............. 40 • Cold Water Troubleshooting ..........49 • Hot Water Troubleshooting ........... 50 WL2000 Manual Page 3 - Revision:EU-2020-10-13...

  • Page 4: Safety Alert Symbols

    (RCD) having a rated residual operating current not exceeding 30mA. Use only Waterlogic supplied power cord. Never use extension cords or power strips to connect unit. Do not use if the power supply cord is damaged. Always unplug from power supply prior to servicing.
  • Page 5 TIP HAZARD. Dispenser could tip or fall causing serious injury. Always install unit on a firm, flat, and level surface and secure the WL2000 Water Treatment System to the base cabinet with the screw provided to lock the components together. Secure unit to cabinet, wall, or floor if needed.

  • Page 6: Features And Benefits

    200mm dispense height with BioCote® recessed faucet to protect from cross-contamination. Child Safeguard The WL2000 Water Treatment System with Hot Water requires the Hot Water selection to be held until the Red-Light flashes for 4 seconds, followed by the Main Dispense button for Hot Water and defaults back to the Cold selection after 3 seconds of inactivity to prevent accidental dispensing of Hot Water.

  • Page 7: Certifications

    Intertek Labs (ETL) Certified the WL2000 Water Treatment System to ANSI/UL 399 Standard for Drinking Water Coolers. BPA Free - Waterlogic tests for BPA and declares that all of its products are Bisphenol-A FREE and contain no harmful BPA plastics.
  • Page 8 WL2000-M F-2000-M-CA-DC6-CS-WLT Waterlogic WL2000 Mini - Cold and Hot F-2000-M-HC-DC6-CS-WLT Waterlogic WL2000 Free Standing - Cold F-2000-FS-C-DC6-CS-WLT Waterlogic WL2000 Free Standing - Cold and Ambient WL2000 Free Standing WL2000-FS F-2000-FS-CA-DC6-CS-WLT Waterlogic WL2000 Free Standing - Cold and Hot F-2000-FS-HC-DC6-CS-WLT SPECIFICATIONS...
  • Page 9 100 W 1.4 A WL2000 TOTAL 900 W 5.6 A #WL2000 Counter Top is 17.75 in. tall and may not fit between countertops and cabinets - Check installation to ensure adequate clearance. SHIPPING SPECIFICATIONS ITEM WL2000 Mini WL2000 Free Standing...

  • Page 10: Operating Instructions

    Cold Water Hot Water Select Select Dispensing Button The above picture shows front LCD display and control panel for the Waterlogic WL2000 Water Treatment System. For Cold Water: Press Cold Water Select Button followed by the Dispensing Button (within 3 seconds).

  • Page 11: Service Requirements

    4. Sanitise the cold tank per instructions in the pre-delivery procedures. 5. Clean and sanitise external surfaces of the WL2000 Water Treatment System. Use chemicals that are compatible with ABS plastic and will not damage or degrade the product surfaces.

  • Page 12: Installation Rail

    ALWAYS USE INSTALL RAIL. It is required to use an installation rail for the installation of any Waterlogic Water Treatment System. Failure to use an installation rail can result in damage due to excessive pressures over a prolonged period of time and no additional leak protection.

  • Page 13: Hot Tank Operation

    HOT TANK PRINCIPLES OF OPERATION All Waterlogic Hot Tanks have a built-in Vent or HOT TANK Expansion Chamber in the top of the tank except for WL1000GF units. OUTLET TUBE The Vent Chamber allows for expansion of the water when it is heated.

  • Page 14: Resetting The Hot Tank Overheat (High Limit Safety)

    Red Heater and Compressor Switch must be in the OFF position O=OFF Unplug the Power Cord from rear of WL2000 Water Treatment System. Tower Model: Remove the Lower Front Panel by removing the Phillips Head Screws underneath the Lower Front Panel.
  • Page 15 Plug in the Power Cord. Make sure the Hot and Cold Tanks are filled with water BEFORE turning on the Red Heater and Compressor Switch. Verify the cooler is fully operational before installing it at the customers’ site. WL2000 Manual Page 15 - Revision:EU-2020-10-13...

  • Page 16: Hot Tank Descaling

    2. Connect descaling cartridge to the inlet water supply and connect to inlet bulkhead fitting on the back of the WL2000 Water Treatment System. Turn on Water Supply. 3. Select Hot Water and depress the Main Dispensing Button on the Front Control Panel until descaling solution (cloudy water) comes out of the faucet.
  • Page 17 6. Place a pitcher, catch basin or other container under the faucet of the WL2000 Water Treatment System. 7. Flush the Hot Tank until water runs clear. ensure you pinch the hot water over flow tube to drain and clear the sub tank.

  • Page 18: Recommended Stock Holding (Consumables)

    PL-1153(hot and cold) Silicone Button Mat PL-1100 (cold only) Replacement parts can be obtained from Waterlogic or an Authorized Waterlogic Dealer. See Parts Layouts, Drawings, and Lists for additional repair parts. Hot Tank Service Hot Tanks (with controls) must be replaced at least every Replace every 3-5 years depending on usage.

  • Page 19: Free Standing Exploded Diagram And Parts List

    WL2000 FREE STANDING EXPLODED DIAGRAM AND PARTS LIST WL2000 Manual Page 19 - Revision:EU-2020-10-13...
  • Page 20 Front Down Insert Panel Front Down Panel 1 Micron 10” CBC Filter Ass’y 10 Micron 10” GAC Filter Ass’y GAC Cartridge CBC Cartridge Filter Bracket Solenoid Valve – Replace Solenoid Cushion with Solenoid Valve WL2000 Manual Page 20 - Revision:EU-2020-10-13...
  • Page 21 1.5L 220V Hot tank with Element Direct Chill Cooling Coil 500ml Cold Tank Ass’y Incl CT- 2054 Filter Dryer 1/4” x 1/4” Bulk Head Fitting R600aCompressor 220-240V Down Base Rubber Feet F/S Side Panel WL2000 Manual Page 21 - Revision:EU-2020-10-13...
  • Page 22 Condensor Stand Back Panel Thermostat (Cold) Switch (Red) 33/34 Fuse & Holder Power Cord Overheat Thermostat 97°C (Manual) Thermostat (87°C) Powerline Noise Filter (EMI) WL2000 Manual Page 21 - Revision:EU-2020-10-13...

  • Page 23: Mini Exploded Diagram And Parts List

    WL2000 MINI EXPLODED DIAGRAM AND PARTS LIST WL2000 Manual Page 22 - Revision:EU-2020-10-13...
  • Page 24 Drip Tray Insert Panel Faucet 1 Micron 10” CBC Filter Ass’y 10 Micron 10” GAC Filter Ass’y GAC Cartridge CBC Cartridge Filter Bracket Solenoid Valve – Replace Solenoid Cushion with Solenoid Valve Top Cover WL2000 Manual Page 23 - Revision:EU-2020-10-13...
  • Page 25 1.5L 220V Hot tank with Element Direct Chill Cooling Coil Cold Tank Ass’y Filter Dryer 1/4” x 1/4” Bulk Head Fitting R600aCompressor 220-240V Down Base Rubber Feet Mini Side Panel Condenser Stand Back Panel Thermostat (Cold) WL2000 Manual Page 24 - Revision:EU-2020-10-13...
  • Page 26 Switch (Red) 33/34 Fuse & Holder Power Cord Overheat Thermostat 97°C (Manual) Thermostat (85°C) Powerline Noise Filter (EMI) WL2000 Manual Page 25 - Revision:EU-2020-10-13...

  • Page 27: Flow Diagram

    WL2000 WATER FLOW DIAGRAM te a Leak Detection Sensors WL2000 Manual Page 26 - Revision:EU-2020-10-13...
  • Page 28 WL2000 WATER ELECTRICAL SCHEMATIC DIAGRAM DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. PCB (Printed Circuit Board) contains High Voltage. Only trained and qualified technicians should attempt live testing. Hot and Cold WL2000 Manual Page 27 - Revision:EU-2020-10-13...
  • Page 29 Cold and Ambient WL2000 Manual Page 28 - Revision:EU-2020-10-13...
  • Page 30 Cold only WL2000 Manual Page 29 - Revision:EU-2020-10-13...
  • Page 31 Only qualified personnel who have read and understand this entire manual should attempt to install, or service this WL2000 Water Treatment System, failure to do so could result in death or serious injury. DO NOT plug into an electrical supply until specifically instructed.
  • Page 32 Do not plug in unit unless qualified. Only qualified personnel who have read and understand this entire manual should attempt to install or service this unit. 7. Connect WL2000 Water Treatment System to power. CAUTION! NEVER TURN ON HEATER BEFORE FILLING HOT TANK.
  • Page 33 Flushing the Sanitiser from the Machine 9. Place a pitcher, catch basin, or other container under the faucet of the WL2000 Water Treatment System. 10. Flush the Cold Tank. Run a minimum of 10 litres through the faucet by dispensing cold water to dilute and remove the sanitiser from the cold circuit.
  • Page 34 WL2000 Water Treatment System. Water Supply Line 6. Depress Cold Water Dispense Button until all Cold Water has drained from the WL2000 Water Treatment System. 7. Depress Hot Water Dispense Button until all Hot Water has drained from the WL2000 Water Treatment Machine.
  • Page 35 Turn off Water Supply and Bleed Water Pressure 10. Isolate the WL2000 Water Treatment System from incoming feed water by turning off the supply. 11. Dispense cold still water to relieve any pressure built up in the system.
  • Page 36 WARNING! ONLY USE A Waterlogic SUPPLIED POWER CORD. Locate system within 1 meter of power supply. Never use an extension cord or adapter. Do not use a damaged power cord or plug. Keep power cord out of heavy traffic areas and away from heat sources. Do not, under any circumstances, remove ground prong or alter the power cord.
  • Page 37 NOTE: Switch has internal LED that illuminates when placed in I=ON position. 3. Connect the power cord to the back of the Waterlogic WL2000 Water Treatment System and to a 220/240 Volt supply. 4. Fill the Cold Tank. Hold a container under the dispensing faucet, press and hold the main dispensing button until a continuous flow of water is obtained.

  • Page 38: Power Troubleshooting

    Failed Power Line Noise Filter, Replace Power Line Noise Filter, ElectroMagnetic Interference ElectroMagnetic Interference filter (EMI) filter (EMI) Defective Red Heater / Replace Red Heater / Compressor Switch Compressor Switch WL2000 Manual Page 37 - Revision:EU-2020-10-13...
  • Page 39 Clean the condensing coil of any obstructions or dust. Make sure unit is not under minimum ventilation requirements (2 Reduction of airflow into unit. to 4 inches). Compressor is running very Low or lost refrigerant. Refrigerant recharge required. hot. WL2000 Manual Page 38 - Revision:EU-2020-10-13...
  • Page 40 Disconnect the black and red terminal connectors; Compressor Starting Circuit Inspect the starter and overheat relay for any defects. Replace components(s) as needed. Turn Red Heater and Compressor Switch on I = ON and retest compressor operation. WL2000 Manual Page 39 - Revision:EU-2020-10-13...
  • Page 41 11. Cold Water dispenses from Faucet and Vent Outlet Simultaneously 12. Small amount of water periodically dispenses from faucet automatically 13. Dispense Buttons Stick 14. Run-On - Water continues to dispense out of faucet after releasing the dispense button WL2000 Manual Page 40 - Revision:EU-2020-10-13...
  • Page 42 Additional method of verification is to turn off water to unit and Recommend 2.7 to 4 Bar for press the dispense button. Does the solenoid open without water WL2000 Water Treatment pressure to the unit? Listen for solenoid to activate, not button System to operate properly.
  • Page 43 Verify tubing is connected properly from tank outlets to correct from the tank to faucet or vice faucet attachments. versa. Hot Tank outlet hole is scaled Inspect and Descale Tank as needed. over. Expansion chamber is not Replace the Hot Tank. sealed properly. WL2000 Manual Page 42 - Revision:EU-2020-10-13...
  • Page 44 Solenoid connection to the Display soldering points on connections are secure into the board. Remove the PCB to inspect the front of the board. Inspect valve components for proper function. Replace as Solenoid Valve is Malfunctioning necessary. WL2000 Manual Page 43 - Revision:EU-2020-10-13...
  • Page 45 Possible Reason Solution Small Outlet Vent Hole susceptible to scale Descale Tank. build up. All Waterlogic Hot Tanks have a built in Vent or HOT TANK Expansion Chamber in the top of the tank except for WL1000GF units. OUTLET TUBE The Vent Chamber allows for expansion of the water when it is heated.
  • Page 46 Display PCB. Verify the soldering points Loose connection(s) on the on connections are secure into the board. Display PCB Remove the PCB to inspect the front of the board. Exhausted Filter Replace filters as needed. WL2000 Manual Page 45 - Revision:EU-2020-10-13...
  • Page 47 Scale has formed inside cold Remove cold water outlet tube from tank to faucet. Pour tank outlet tube. some scale remover into cold tank. Expansion chamber in Cold Replace Cold Tank. Tank is not sealed properly. WL2000 Manual Page 46 - Revision:EU-2020-10-13...
  • Page 48 13. Dispense Buttons Stick Possible Reason Solution Dirt or Foreign material is Inspect the push buttons and clean surrounding area. filling the gap around the Inspect faucet assembly inside the unit and clean as push-buttons. necessary. WL2000 Manual Page 47 - Revision:EU-2020-10-13...
  • Page 49 Run On exists because the tanks pressurize as water is being dispensed. Every Waterlogic tank has an outlet restrictor to ensure the tanks remain full of water and water is controlled as it is released to the faucet.

  • Page 50: Cold Water Troubleshooting

    Wait for cold tank to chill water to temperature prior to dispensing more cold water. Cold tank capacity is 4 litres for Tower and 2 litres for Counter A greater capacity of Waterlogic Water Systems is available. Top. Check continuity of thermostat with multimeter. Replace Cold Water Thermostat thermostat as required.

  • Page 51: Hot Water Troubleshooting

    Hot Water is not Hot 85 +/- 15°C (185° +/- 5° F) NOTE: The WL2000 Water Treatment System does NOT have Sleep or Power Saving Mode and the hot water should be a of 85 +/- 15°C (185° +/- 5° F) under normal operating conditions.
