- Page 1 SUNLIKE Installation Manual SOLTECH Designs and Manufactures Advanced, Solar-Powered LED Technology. UL8801 Listed E526173...

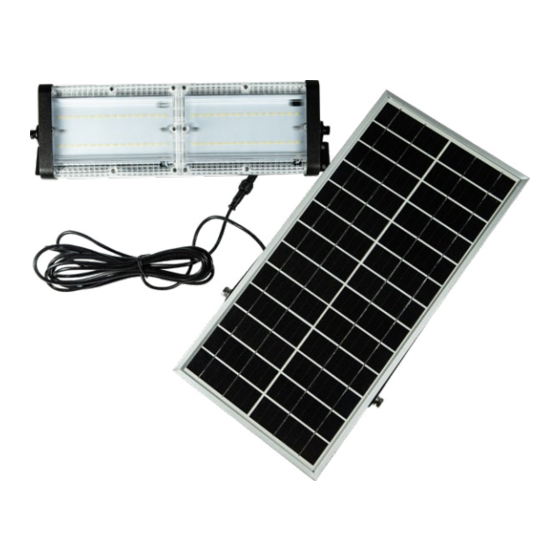

- Page 2 SUNLIKE 50W...
-
Page 3: Table Of Contents
Contents Introduction Specification Luminous Distribution Battery Notes Installation and Wiring Compliance Mounting Accessories Installation Panel Angle 0 1 2 Remote Control Guide... -
Page 4: 1 Introduction
It comes in a wide choice of configurations, lighting outputs, and recommended pole heights. The SUNLIKE 50W is optimized Range of the light module on the lighting fixture is 20–26 feet to provide years of bright, reliable light. -
Page 5: Specification
* The solar charge time data is base on 77 degree F ambient temperature with the panel ture is under 32°F, we advice you to use the Sunlike 50W Pro version to achieve better lighting results. pointed directly at the solar radiation. The standard radiation value is 1000W/m... -
Page 6: Luminous Distribution
03 Luminous Distribution SUNLIKE 50W Type III... -
Page 7: Battery Notes
SOLTECH for any battery’s questions. (IAP) Intelligent Adaptive Program Battery Control Technology In order to extend the off-grid autonomy of the SUNLIKE 50W under shady trees, heavy rain, and thick clouds, our controllers now integrate an adaptive smart control feature to actively track battery capacity and adjust light output accordingly. -
Page 8: Installation And Wiring Compliance
Electrical Codes. foundation are solid enough to withstand the lighting fixture(s). 2. The SUNLIKE 50W models are intended for outdoor use only 5. Before installation, please ensure that the battery is fully charged. Install and should not be installed in an unventilated area, and shall be during sunny days if possible. -
Page 9: Mounting Accessories
06 Mounting Accessories MOUNTING SLEEVE MOUNTING SLEEVE—CUTAWAY 0.4 inches 3.1 inches Pole 8.2 inches 5.3 inches 7.1 inches 2.2 inches 7.2 inches 3.1 inches POLE ASSEMBLY TENON ADAPTER If your round pole size is over 3.1 inches, or you use square pole, please connect with pole manufacturer for the tenon adapter. -
Page 10: Installation
07 Installation SUNLIKE 50W Mounting Base Indicator Mounting Sleeve ±45°... - Page 11 ATTENTION ±48° Be carefull with the solar board when you put SUNLIKE 50W on the pole. Please loose the screws to adjust the angle of the light. TENON ADAPTER If your round pole size is over 3.1 inches, or you use square pole, please connect with pole manufacturer for the tenon adapter.
- Page 12 70° N 69° N 68° N 67° N 66° N 65° N 64° N 63° N 62° N 60° Alaska 61° N 60° N 49° N 48° N Washington 47° N 46° N Montana 45° N North Dakota Oregon 44° N Minne Idaho 43°...
-
Page 13: 8 Panel Angle
08 Panel Angle The Solar charge in a battery pack won’t last forever. The off–grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system. You want to angle your solar panels at a tilt based on the area’s latitude. -
Page 14: Remote Control Guide
09 Remote Control Guide 1. On/Off 2. Connect/Test 3. 40%~100% Motion 4. 20%~80% Motion Sensor Mode Sensor Mode (Default) 5. Night Owl Mode 6. Early Bird Mode 7. 100% Constant Mode 10. Timer Mode Disabled 8. 70% Constant Mode 9. 40% Constant Mode 12. - Page 15 (IAP) Intelligent Adaptive Program Battery Control Technology Dusk and dawn time can vary for different locations and seasons. In order to extend the off-grid autonomy of the SUNLIKE 50W under The sensors in our products will monitor the light levels where it is shady trees, heavy rain, and thick clouds, our controllers now installed.
- Page 16 09 Remote Control Guide 7. 100% Constant Mode 8. 70% Constant Mode 100% brightness from dusk to dawn. 70% brightness from dusk to dawn. 9. 40% Constant Mode 40% brightness from dusk to dawn. 10. Timer Mode Disabled Press this button to turn off Timer Mode; settings revert back to before Timer Mode was last activated.
- Page 17 11. Timer Mode 4 Hours 12. Time Mode 8 Hours This is an additional mode which can work with any other modes. This is an additional mode which can work with any other modes. For example: press this button at any time after you turn on 70% For example: press this button at any time after you turn on 70% Con- Constant Mode.
- Page 18 SUNLIKE 50W is covered by a 5 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and work- manship for the period of 5 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
- Page 20 SOLTECH Designs and Manufactures Advanced, Solar-Powered LED Technology.
