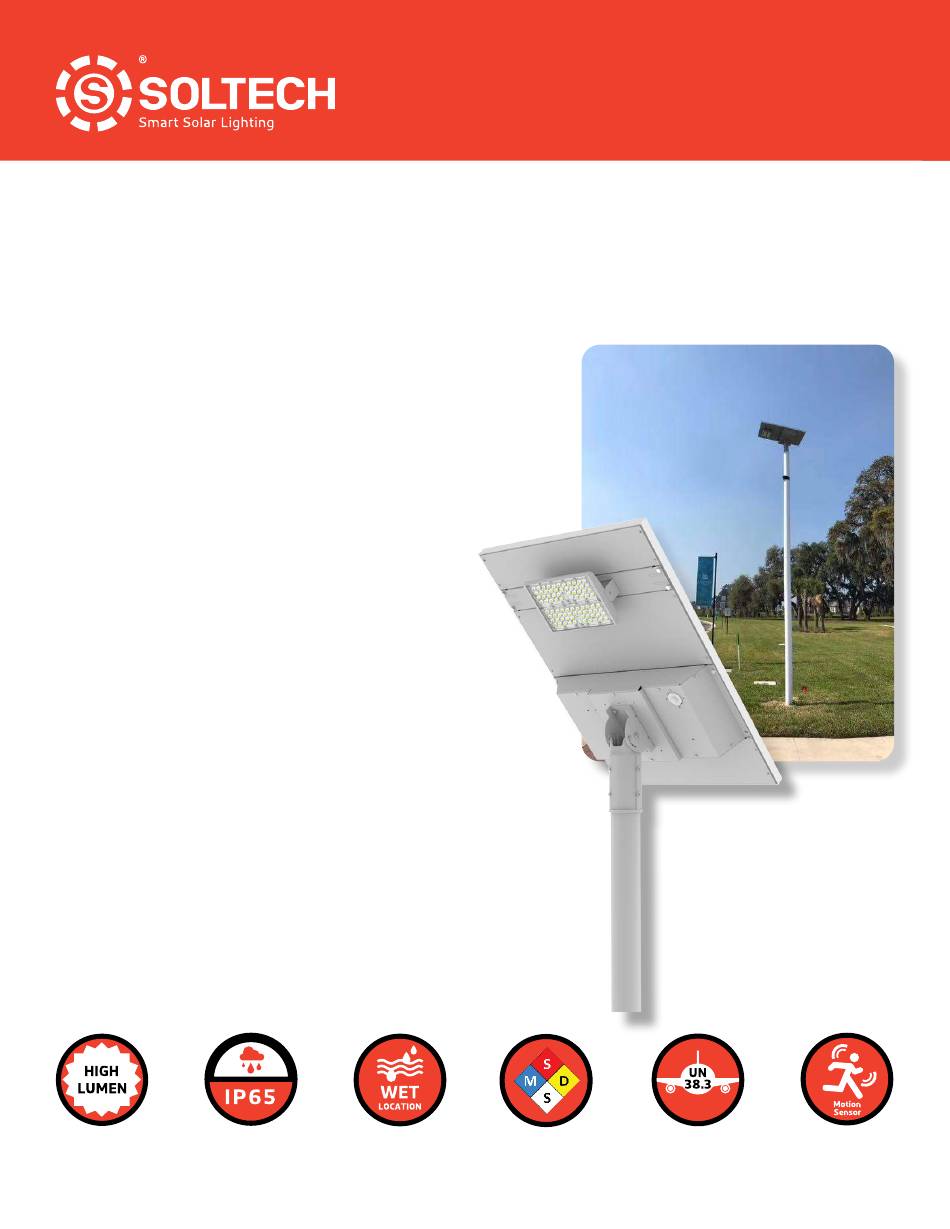

Soltech SUNLIKE 50W Manual

Led solar area light
Hide thumbs Also See for SUNLIKE 50W:

Advertisement

Quick Links

Download this manual
INTRODUCING SOLTECH SUNLIKE 50W:
ship, and delivers big performance. This fully-integrated LED solar streetlight is designed for both
residetial and commercial areas. SUNLIKE solar light features an integrated solar array, battery,
and LED fixture with simple mounting, for fast and easy installation.
• All-in-one Design.
• Remote control included with one-button
mode setting.
• Easy installation and operation.
• Highest industry efficiency at 200 lm/W, with
smart power management.
• Equipped with a microwave motion sensor and
photocell sensor.
• Grade A LifePO
Battery Pack, 2000+ full
4
charging cycles.
• Built-in smart MPPT-IAP controller maximizes
autonomy and performance.
• Die cast A380 aluminum fixture housing is
rust free.
APPLICATIONS
Pathways, parking lots, landscaping, parks, schools, trails, or any
remote locations that have no access to conventional power.
01
I
soltechlighting.com
SUNLIKE 50W solar fixture reduces total cost of owner-
I
hello@soltechlighting.com
I
(510) 891-1056
LED SOLAR AREA LIGHT
I
1460 Park Avenue, Emeryville, CA 94608
SUNLIKE 50W
I

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUNLIKE 50W and is the answer not in the manual?

Questions and answers

Related Manuals for Soltech SUNLIKE 50W

Summary of Contents for Soltech SUNLIKE 50W

  • Page 1 LED SOLAR AREA LIGHT INTRODUCING SOLTECH SUNLIKE 50W: SUNLIKE 50W solar fixture reduces total cost of owner- ship, and delivers big performance. This fully-integrated LED solar streetlight is designed for both residetial and commercial areas. SUNLIKE solar light features an integrated solar array, battery, and LED fixture with simple mounting, for fast and easy installation.
  • Page 2 SUNLIKE 50W LED SOLAR AREA LIGHT LIGHT FIXTURES LED Nominal Power Lumen Output@5000K 10,000 EPA@45° Efficiency@5,000K 200 LM/W Lumileds 5050 (210lm-CRI>70) LED Chip BATTERY *Operating Temperature 0°C/32°F to 140°F 0°C/32°F to 140°F *Charging Temperature LiFePO₄ Battery 691WH 12.8V 54AH *Charging Time...
  • Page 3 SUNLIKE 50W LED SOLAR AREA LIGHT IES/ BEAM SUNLIKE 50W TYPE III [ MOUNTING HETGHT 20FT ] [ UNIT: FT ] PRODUCT SIZE - SUNLIKE 50W 39.3 inches 5.6 inches soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608...
  • Page 4 Connect ±35 ° ATTENTION Be carefull with the solar panel when you install ±48° SUNLIKE 50W on the pole. Please loosen the screws to adjust the angle of the light. soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608...
  • Page 5 Up to 15m/49' WARRANTY SUNLIKE products are covered by a 5 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 5 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.

  • Page 6: Remote Controls

    SUNLIKE 50W LED SOLAR AREA LIGHT REMOTE CONTROLS 1. On/Off 2. Connect/Test 3. 40%~100% Motion 4. 20%~80% Motion Sensor Mode Sensor Mode (Default) 5. Night Owl Mode 6. Early Bird Mode 7. 100% Constant Mode 10. Timer Mode Disabled 8. 70% Constant Mode 9.
  • Page 7 SUNLIKE 50W LED SOLAR AREA LIGHT REMOTE CONTROLS 3. 40%~100% Motion Sensor Mode 5. Night Owl Mode Constant 40% brightness (turns on at dusk, turns off at dawn); Changes as natural light decreases/increases (turns on at dusk); 70% 100% brightness turns on for 2 minutes when motion is detected.
  • Page 8 Constant Mode. If the light turns on at 7pm at dusk, it will turn off at 11pm. It will repeat the same schedule hereafter until it is canceled by pressing Timer Mode Disabled. SOLTECH LLC reserves the right to update all product data sheets at any time. Consult Copyright©2018–2024 SOLTECH LLC, SOLTECH marketing specialists for publication All Rights Reserved.
  • Page 9 SUNLIKE 50W LED SOLAR AREA LIGHT PANEL ANGLE GUIDE The solar charge in a battery pack won’t last forever. The off–grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system.
  • Page 10 60° 45° 30° 15° 0° 15° 30° 45° SOLTECH LLC reserves the right to update all product data sheets at any time. Consult Copyright©2018–2024 SOLTECH LLC, SOLTECH marketing specialists for publication All Rights Reserved. updates at hello@soltechlighting.com soltechlighting.com hello@soltechlighting.com (510) 891-1056...
