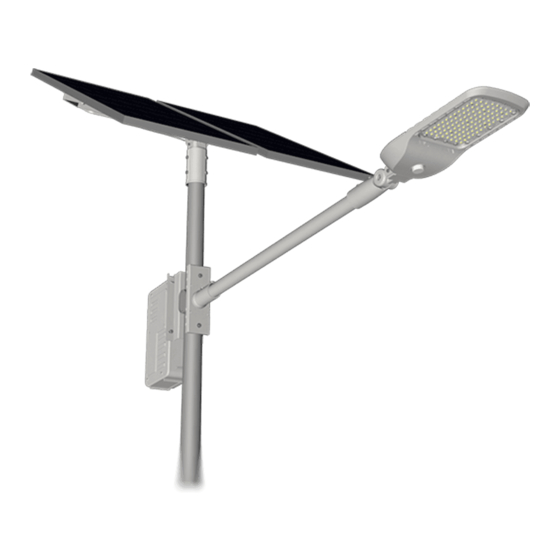

- Page 1 SATELIS 50W 75W Installation Manual SOLTECH Designs and Manufactures Advanced, Solar-Powered LED Technology.
- Page 2 SATELIS 50W SATELIS 75W...
-
Page 3: Table Of Contents
Contents Check List Introduction Battery Notes Installation and Wiring Compliance Mounting Accessories Installation—50W Installation—75W Panel Angle 0 1 6 Remote Control Guide... -
Page 4: Check List
01 Check List SATELIS 50W Solar Panel Luminaire Battery Pack Component Kit A Component Kit B Component Kit C Component Kit D Component Kit E Component F Component G Component H Component I Component J Component K Wire M... - Page 5 SATELIS 75W Solar Panel Luminaire Battery Pack Component Kit A Component Kit B Component Kit C Component Kit D Component Kit E Component F Component G Component H Component I Component J Component L Wire N...
-
Page 6: Introduction
It comes in a wide choice of configurations, lighting outputs, and recommended pole heights. The Satelis series is optimized Range of the light module on the lighting fixture is 20–26 feet to provide years of bright, reliable light. - Page 7 SATELIS 50W 26.5 inches 1.3 inches 32.0 inches 9.5 inches 6.3 inches 25V 30AH SOLAR PANEL: 21.1 Lbs SOLAR LAMP: 13.5 Lbs BATTERY ASSEMBLY: 35.2 Lbs MOUNTING FASTNER: 22 Lbs 25V 60AH SOLAR PANEL: 21.1 Lbs 3.5 inches SOLAR LAMP: 13.5 Lbs 11.0 inches...
-
Page 8: Battery Notes
03 Battery Notes 1. The LiFePO -battery-powered SATELIS lights are visibly brighter Battery Status is indicated by the red/green indicator on the lighting than other outdoor solar lights, and their performance overall is fixture as follows: more reliable. - Red indicator (Charging) >... - Page 9 (IAP) Intelligent Adaptive Program Battery Control Technology In order to extend the off-grid autonomy of the SATELIS under shady trees, heavy rain, and thick clouds, our controllers now integrate an adaptive smart control feature to actively track battery capacity and adjust light output accordingly.
-
Page 10: Installation And Wiring Compliance 010
Electrical Codes. foundation are solid enough to withstand the lighting fixture(s). 2. The SATELIS 50W and 75W models are intended for outdoor use 5. Before installation, please ensure that the battery is fully charged. Install only and should not be installed in an unventilated area, and shall be during sunny days if possible. -
Page 11: Mounting Accessories 011
05 Mounting Accessories SLIP FITTER SOLAR PANEL SUPPORT BASE—CUTAWAY 0.4 inch 3.1 inches Pole 8.2 inches 5.3 inches 7.1 inches Pole Size For Slip Fitter 1.8 inches 2.4 inches 2.2 inches 7.2 inches 3.1 inches POLE ASSEMBLY TENON ADAPTER Create 2 holes (diameter 0.5 inch) in the middle of pole, create 1 hole If your round pole size is over 3.1 inches, or you need a square pole, please (diameter 1.5 inch, 2.6 inch long) between the 2 holes. -
Page 12: Installation-50W 012
06 Installation—50W SATELIS 50W Solar Panel Component Kit D Component F Component K Component Kit B Tenon Adapter Component Kit A If your round pole size is over 3.1 inches, or you need a square pole, please contact the pole manufacturer for the tenon adapter to connect the componet F. - Page 13 Component Kit E The luminare wire comes inside the component H and comes out from the hole. Component H Connect Component E Connect Battery Pack...
-
Page 14: Installation-75W 014
07 Installation—75W SATELIS 75W Solar Panel Component Kit D Component F Component L Tenon Adapter Component Kit B Component Kit A If your round pole size is over 3.1 inches, or you need a square pole, please contact the pole manufacturer for the tenon adapter to connect the componet F. - Page 15 Component Kit E The luminare wire comes inside the component H and comes out from the hole. Component H Connect Component E Connect Battery Pack...
- Page 16 70° N 69° N 68° N 67° N 66° N 65° N 64° N 63° N 62° N 60° Alaska 61° N 60° N 49° N 48° N Washington 47° N 46° N Montana 45° N North Dakota Oregon 44° N Minne Idaho 43°...
-
Page 17: Panel Angle
08 Panel Angle The solar charge in a battery pack won’t last forever. The off–grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system. You want to angle your solar panels at a tilt based on the area’s latitude. -
Page 18: Remote Control Guide 018
09 Remote Control Guide 1. On/Off 2. Connect/Test 3. 40%~100% Motion 4. 20%~80% Motion Sensor Mode Sensor Mode (Default) 5. Night Owl Mode 6. Early Bird Mode 7. 100% Constant Mode 10. Timer Mode Disabled 8. 70% Constant Mode 9. 40% Constant Mode 12. - Page 19 (IAP) Intelligent Adaptive Program Battery Control Technology Important In order to extend the off-grid autonomy of the SATELIS under shady Dusk and dawn time can vary for different locations and seasons. trees, heavy rain, and thick clouds, our controllers now integrate an...
- Page 20 09 Remote Control Guide 7. 100% Constant Mode 8. 70% Constant Mode 100% brightness from dusk to dawn. 70% brightness from dusk to dawn. 9. 40% Constant Mode 40% brightness from dusk to dawn. 10. Timer Mode Disabled Press this button to turn off Timer Mode; settings revert back to before Timer Mode was last activated.
- Page 21 11. Timer Mode 4 Hours 12. Time Mode 8 Hours This is an additional mode which can work with any other modes. This is an additional mode which can work with any other modes. For example: press this button at any time after you turn on 70% For example: press this button at any time after you turn on 70% Constant Mode.
- Page 22 SATELIS products are covered by a 5 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 5 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
- Page 24 SOLTECH Designs and Manufactures Advanced, Solar-Powered LED Technology.
