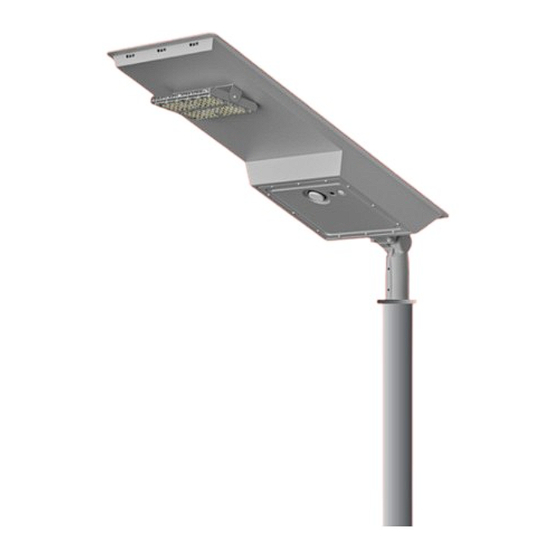

- Page 1 HYBRID 45W 65W Installation Manual SOLTECH Designs and Manufactures Advanced, Solar-Powered LED Technology. soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608...
-
Page 2: Table Of Contents
0 1 Introduction 02 Battery Notes 03 Installation and Wiring Compliance 04 Mounting Accessories 05 Installation 06 Panel Angle 07 Detection Zone 0 8 Remote Control Guide HYBRID 45W HYBRID 65W soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608... - Page 3 Please save these instructions. Read all of the instructions carefully make contact with the terminals when the panel is exposed to sunlight before attempting to carry out any installation or wiring. Do not open or or any other light source. HYBRID 45W HYBRID 65W 43.5 inches 46.6 inches 4.4 inches...
-
Page 4: Battery Notes
4. Before installation, please ensure that the battery is fully charged. Install Electrical Codes. during sunny days if possible. 2. The HYBRID 45W/65W model is intended for outdoor use 5. Before installation, please press the ON/OFF key in the remote only and should not be installed in an unventilated area, and shall be control and check whether it shows a red light on the indicator. -
Page 5: Mounting Accessories
04 Mounting Accessories A. TRUNNION—Wall Mount B. SLIP FITTER A-a. STLHYP-WM B-b. STLHYP-SF Tenon Diameter 2 3/8" C. TRUNNION—Round D. TRUNNION—Square Round Pole Diameter Square Pole Dimension C-c. STLHYP-TR D-d. STLHYP-TR soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608... -
Page 6: Installation
05 Installation Trunnion Mount A. On Wall ±35° B. On Round Pole ±90° C. On Square Pole Connect cable with on-grid power. soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608... - Page 7 Slip Fitter ±35° WARNING: To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected, and maintained by a qualified electrician only, following all applicable electrical codes. To Avoid Electric Shock: • Be certain electrical power is OFF before and during installation and maintenance.
- Page 8 70° N 69° N 68° N 67° N 66° N 65° N 64° N 63° N 62° N 60° Alaska 61° N 60° N 49° N 48° N Washington 47° N 46° N Montana 45° N North Dakota Oregon 44° N Minne Idaho 43°...
-
Page 9: Panel Angle
06 Panel Angle The solar charge in a battery pack won’t last forever. The off–grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system. You want to angle your solar panels at a tilt based on the area’s latitude. -
Page 10: Detection Zone
07 Detection Zone MOTION SENSOR Up to 15m/49' Up to 15m/49' soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608... - Page 11 08 Remote Control Guide 1. On/Off 2. Connect/Test 3. 40%~100% Motion 4. 20%~80% Motion Sensor Mode Sensor Mode (Default) 5. Night Owl Mode 6. Early Bird Mode 7. 100% Constant Mode 10. Timer Mode Disabled 8. 70% Constant Mode 9. 40% Constant Mode 12.
- Page 12 08 Remote Control Guide 3. 40%~100% Motion Sensor Mode 5. Night Owl Mode Constant 40% brightness (turns on at dusk, turns off at dawn); Changes as natural light decreases/increases (turns on at dusk); 70% 100% brightness turns on for 2 minutes when motion is detected. brightness for 0.5 hour, 100% brightness for 3.5 hours, 70% bright- ness for 1 hour, 50% brightness for 1 hour, 20% brightness for 5 hours (turns off at Dawn).
- Page 13 7. 100% Constant Mode 8. 70% Constant Mode 100% brightness from dusk to dawn. 70% brightness from dusk to dawn. 9. 40% Constant Mode 10. Timer Mode Disabled 40% brightness from dusk to dawn. Press this button to turn off Timer Mode; settings revert back to before Timer Mode was last activated.
- Page 14 HYBRID products are covered by a 5 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 5 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
- Page 15 soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608...
- Page 16 SOLTECH Designs and Manufactures Advanced, Solar-Powered LED Technology. soltechlighting.com hello@soltechlighting.com (510) 891-1056 1460 Park Avenue, Emeryville, CA 94608...
