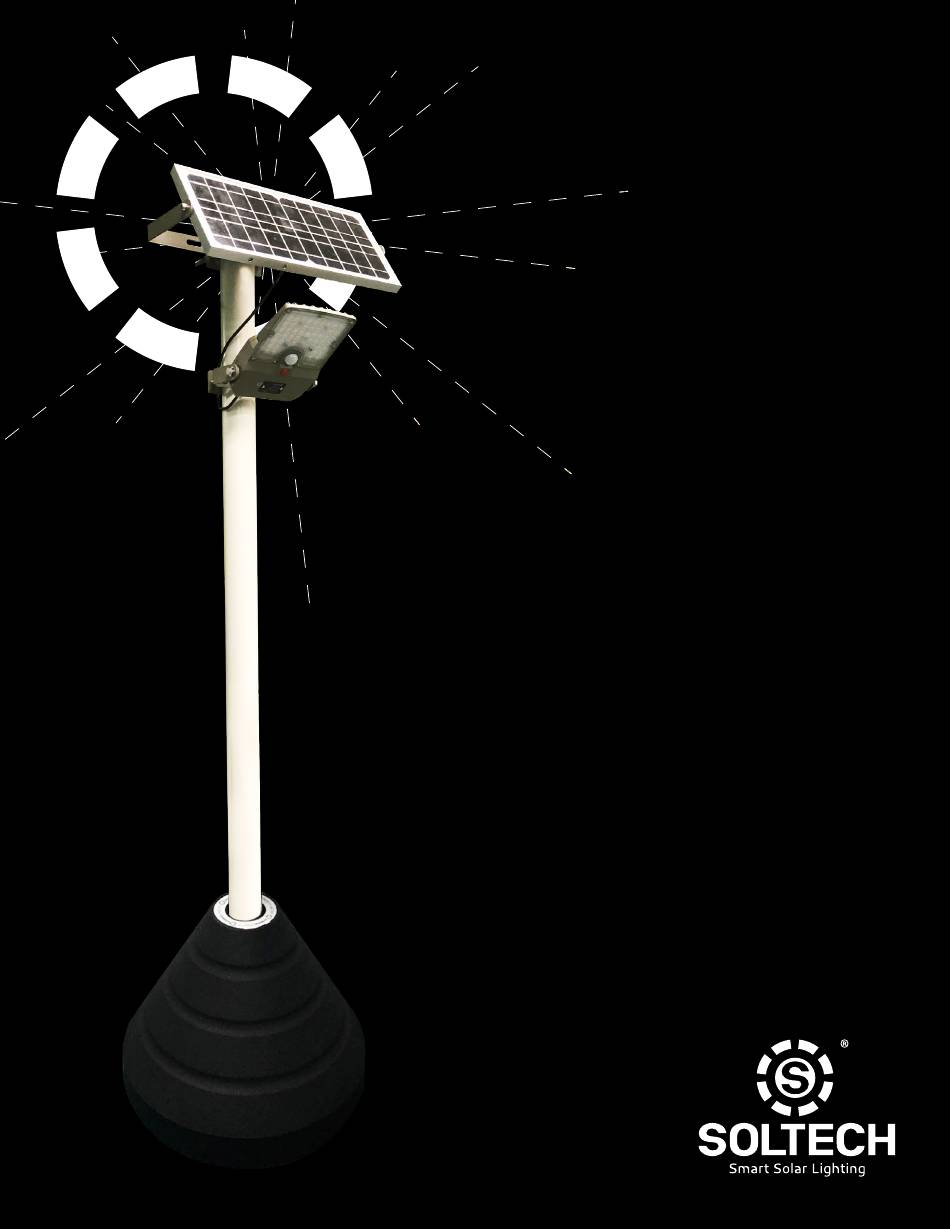

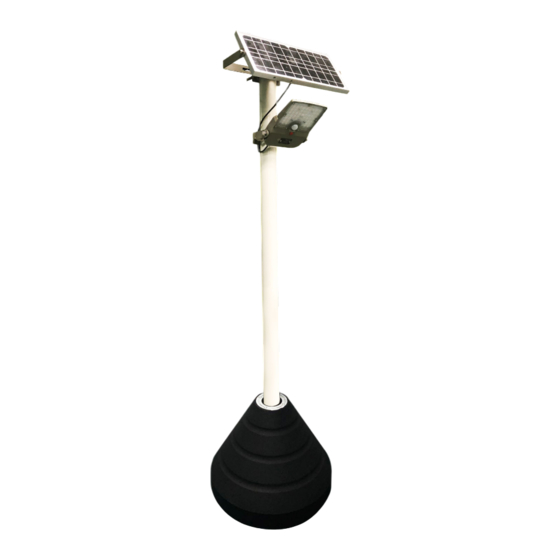

- Page 1 PORTA SOLAR MOLIBE PORTABLE POLE Installation Manual Ideal for Construction, Natural Disasters, and Other Temporary Lighting Needs.
- Page 2 PORTA SOLAR MOLIBE PORTABLE POLE 72lbs 150lbs...
- Page 3 Contents Introduction Specifications Installation and Wiring Requirements Ordering Information Installation Panel Angle Remote Control Guide...
- Page 4 Do not open or into electricity. Electricity is stored in batteries for use at night. attempt to repair a SOLTECH luminaire on your own, as it many cause PROTA solar molibe portable pole combined with SOLTECH solar lights serious damage and would void the product warranty.
- Page 5 12.4 inches 0.7 inches 15.1 inches 14.0 inches 0.6 inches ø8.0 inches 11.8 inches 1.4 inches...
- Page 6 02 Specifications Specifications PORTA Pole Height Options 5ft / 8ft (Without Luminaire) Base Weight Options 72lbs / 150lbs Casting PVC and Rubber Base Dimensions 72lbs: 18 X 18 X 14 In 150lbs: 23 X 23 X 18 In Pole Profile Round Pole Sections BASE SIZE...
- Page 7 Specification SUNLIKE 8W SOLPAD 10W LED Nominal Power Solar Panel 18V 17W Mono-Crystalline 5.5V 6W LiFePO Battery 115.2WH 12.8V 9AH 3.7V Weight 11.7 lbs 11.7 lbs Lumen Output 1,600@5000K 1,000@4000K > 70 > 70 Lumileds 5050 LED Chip (215lm-CR>70) EPA@45° Waterproof Rate IP65 IP65...
- Page 8 02 Specifications Specifications FLUX 6W FLUX 20W LED Nominal Power Solar Panel Mono-Crystalline 10V 10W Mono-Crystalline 10V 20W LiFePO Battery 6.4V 3AH 6.4V 12AH 4,000K 4,000K Lumen Output@4000K 1,020 3,400 > 70 > 70 Product Size Light Head 9.5 X 6.9 X 1.6 Inches Light Head 12.4 X 9.0 X 2.3 Inches Solar Panel 7.7 X 14.6 X 0.7 Inches Solar Panel 13.5 X 15.1 X 0.7 Inches...
- Page 9 Specifications BEACON 8" Single-head LED Nominal Power 3.6W Solar Panel Mono-Crystalline 18V 10W Lithium Ion Battery 12V 8.8Ah Light Color Yellow/Red Illuminance 8,000 mcd (Red) 7,000 mcd (Yellow) Product Size Light Head ø8.0 Inches Solar Panel 14.0 X 9.8 X 0.6 Inches Beam Angle 30°...
- Page 10 03 Installation and Wiring Requirements 1. Installation and wiring must comply with the State and National 4. Before installation, if applicable, please ensure the light pole and its Electrical Codes. foundation are stable enough to withstand the lighting fixture(s). 2. The SUNLIKE, FLUX, BEACON and SOLPAD models are intended 5.
- Page 11 04 Ordering Information Base Pole Fixture STLPORBA72=PORTA STLPORPL5=PORTA STLSFL104WMBK=SOLPAD 10W 72lbs Rubber Base 5ft PVC Pole STLPORBA150=PORTA STLPORPL8=PORTA STLFLX63PMBZ=FLUX 6W 150lbs Rubber Base 8ft PVC Pole STLFLX204PMBZ=FLUX 20W STLSTC08T35SFGY=SUNLIKE 8W STLBCNS8DYL24S=BEACON 8" Single-head Yellow For example: STLPORBA72STLPORPL5STLSFL104WMBK This means the customer wants a Solar Mobile Portable Pole PORTA with 72lbs Rubber Base, 5ft Pole Height and SOLPAD 10W Fixture.
- Page 12 05 Installation PORTA POLE INSTALLATION 72lbs 150lbs...
- Page 13 SUNLIKE 8W INSTALLATION 1. Connect SUNLIKE fixture with slip fitter. 2. Adjust the panel angle. 3. Mount slip fitter on the top of the PORTA pole. 4. Tighten up two screws to screw the SUNLIKE fixture. SOLPAD 10W INSTALLATION Works With Round & Square Poles 1.
- Page 14 05 Installation FLUX 6W / 20W INSTALLATION First, mount the solar panel to the pole: 1. Use the screw kit to secure the pole mount base and the solar panel bracket to the pole. 2. Then attach the solar panel to the bracket.
- Page 15 BEACON INSTALLATION Check List 1. Roll up the light cover. Use 1. Solar Panel (X1) the light cover screw kit to 2. Light (X1) secure the cover on the light. 3. Screw Kit (X1) 2. Install the light by screwing 4.
- Page 16 70° N 69° N 68° N 67° N 66° N 65° N 64° N 63° N 62° N 37°– 45° Alaska 61° N 60° N 49° N 48° N Washington 47° N 46° N Montana 45° N North Dakota Oregon 44°...
- Page 17 06 Panel Angle The Solar charge in a battery pack won’t last forever. The off–grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system. You want to angle your solar panels at a tilt based on the area’s latitude.
- Page 18 07 Remote Control Guide This guide is for SUNLIKE Fixture only. 1. On/Off 2. Connect/Test 3. 40%~100% Motion 4. 20%~80% Motion Sensor Mode Sensor Mode (Default) 5. Night Owl Mode 6. Early Bird Mode 7. 100% Constant Mode 10. Timer Mode Disabled 8.
- Page 19 (IAP) Intelligent Adaptive Program Battery Control Technology Important In order to extend the off-grid autonomy of the SOLTECH solar products Dust and dawn time can vary for different locations and seasons. under shady trees, heavy rain, and thick clouds, our controllers now...
- Page 20 07 Remote Control Guide 7. 100% Constant Mode 8. 70% Constant Mode 100% brightness from dusk to dawn. 70% brightness from dusk to dawn. 10. Timer Mode Disabled 9. 40% Constant Mode Press this button to turn off Timer Mode; settings revert back to before 40% brightness from dusk to dawn.
- Page 21 11. Timer Mode 4 Hours 12. Time Mode 8 Hours This is an additional mode which can work with any other modes. This is an additional mode which can work with any other modes. For example: press this button at any time after you turn on 70% For example: press this button at any time after you turn on 70% Constant Mode.
- Page 22 PORTA Solar Mobile Pole products (Pole and Base Only) are covered by a 5 year limited warranty. SOLTECH warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 5 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
- Page 24 SOLTECH Provides Advanced LED Technology Powered With Eco-friendly, Clean, Solar Energy.
