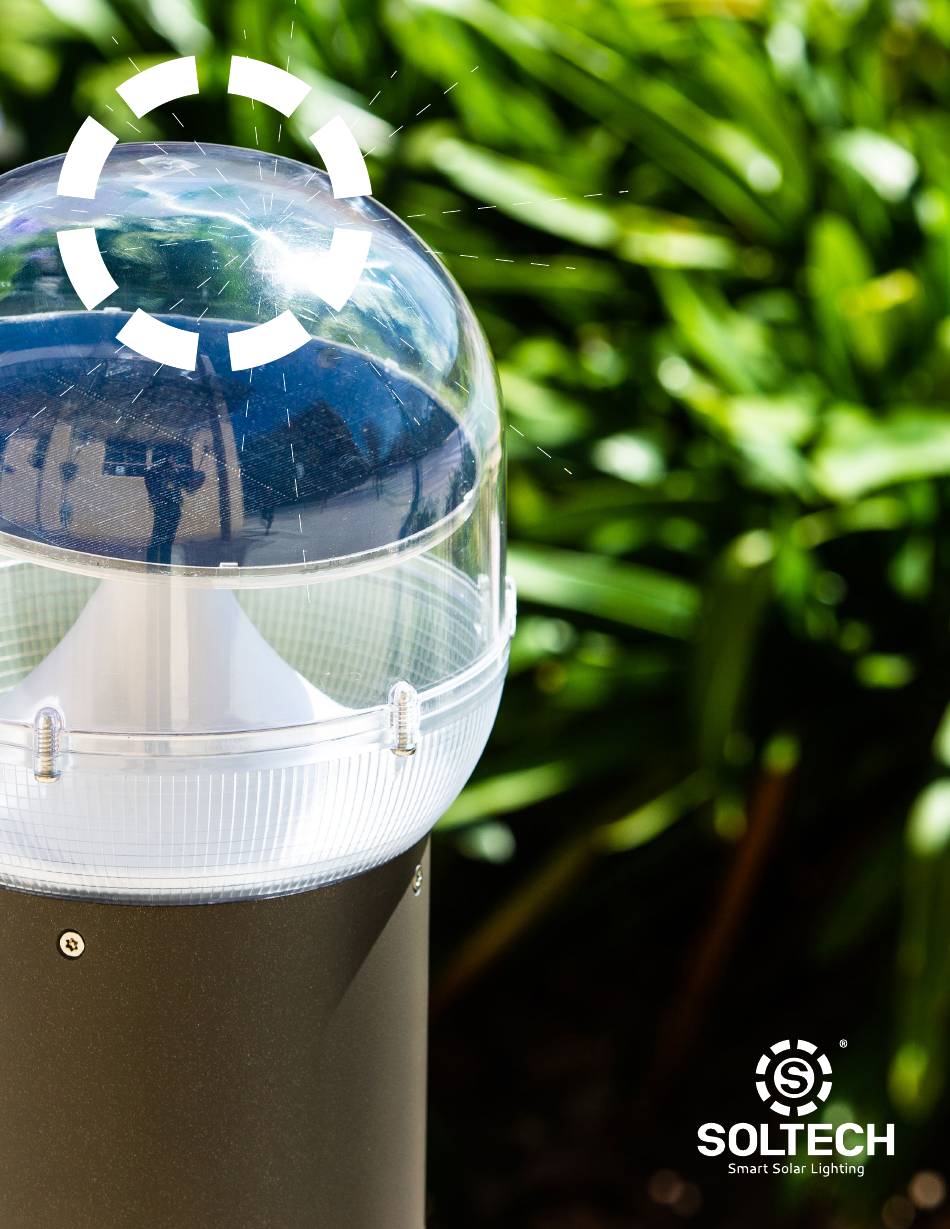

- Page 1 SUNDIAL Solar Bollard Light Installation Manual SOLTECH Provides Advanced LED Technology Powered With Eco-friendly, Clean, Solar Energy.
- Page 2 01 Introduction Thank you for purchasing SUNDIAL Solar Bollard Light. Important Notice & Warning Please read these instructions before installation to ensure optimum results 1. The SUNDIAL will provide optimum performance where there and longevity of your lights. The solar panel should be charged in full is enough sunshine.
- Page 3 02 Specification Specifications SUNDIAL 3W 13“ SUNDIAL 3W 24” SUNDIAL 3W 42“ LED Nominal Power Solar Panel Mono-Crystalline 4.3V 3W Lithium Ion Battery 3.7V 10AH 3,000K Lumen Output@3000K Light Head 8.4 X 8.0 Inches 13 Inches 24 Inches 42 Inches Ground Mount 217°...
-
Page 4: Ground Mount
03 Installation GROUND MOUNT Drill three holes in the Press the red button on base material, then use the bottom of the fixture to the screw kit to secure turn it on. the ground mount base. Ground Mount Base Part B When installing the ground mount base, please put Part A and Part B into the... -
Page 5: Wall Mount
WALL MOUNT Drill three holes on the base Press the red button on the of the existing surface then bottom of the fixture to turn use the screw kit to secure it on. the wall mount base. Wall Mount Base Part B When installing the wall mount base, please put... - Page 6 04 Light Distribution SUNDIAL 3W...
- Page 7 05 Warranty SUNDIAL is covered by a 3 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 3 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
- Page 8 1460 Park Avenue. Emeryville, CA 94608 USA www.soltechlighting.com SOLTECH LLC reserves the right to update all product data sheets at any time. Consult SOLTECH marketing specialists for publication updates at Copyright©2021–2022 SOLTECH LLC, hello@soltechlighting.com All Rights Reserved.
