Soltech SOLTAB Installation Manual

INSTALLATION

1. 2.

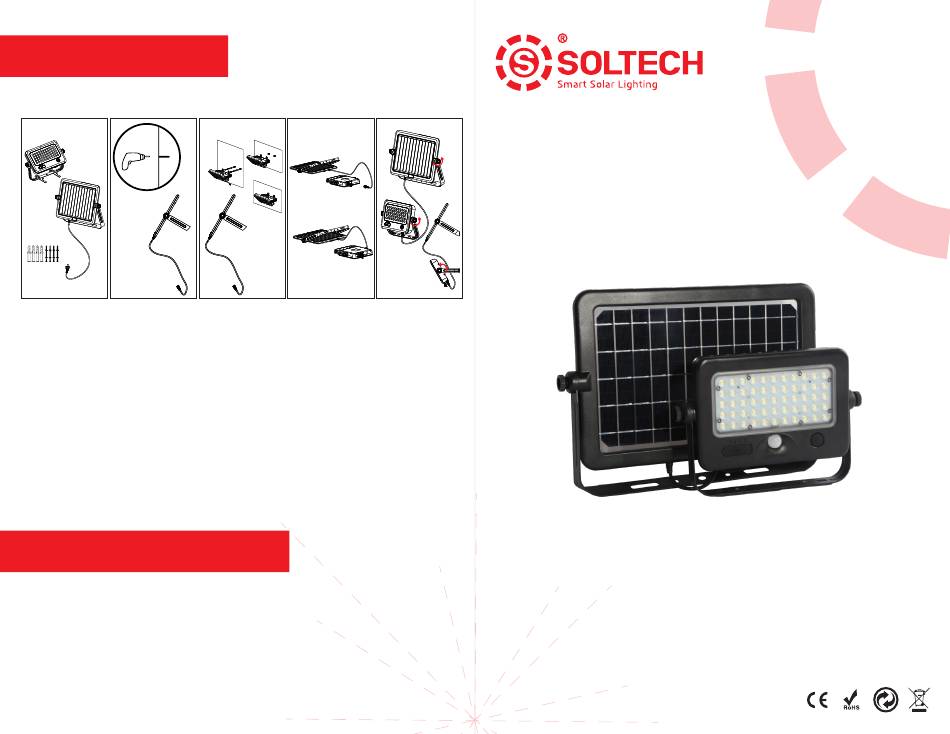

1. Take out of the whole lamp from package, confirm the installation location and wire
length. (Figure 1)
2. Use the card to measure hole position, then drill 4 holes of .3 in with 2.4 in depth. (Figure
2)
3. Fix expansion screw into the holes with a spare space. Then place Panel and Fixture.
(Figure 3)
4. Open the silicon cover at the bottom of the lamp, connect the wire from the solar panel to
the lamp and screw it tightly. (Figure 4)
5. Adjust the solar panel and LED lamp to the right position according to local latitude and
lighting direction. (Figure 5)
NOTICE & WARNING
1. The SOLTAB will provide optimal usage where there is enough sunshine.
2. Please note the lighting time depends on sunshine duration and weather.
3. Built-in intelligent IC is with over-charge, over-discharge and over-voltage protection.
4. The lamp is equipped with an internal battery pack, which is replaceable. If needed, please
contact for correct new battery pack.
5. Non-professionsals please do not disassemble the lamp.
6. Please do not dispose the battery with household garbage to avoid explosion.
5.
3. 4.

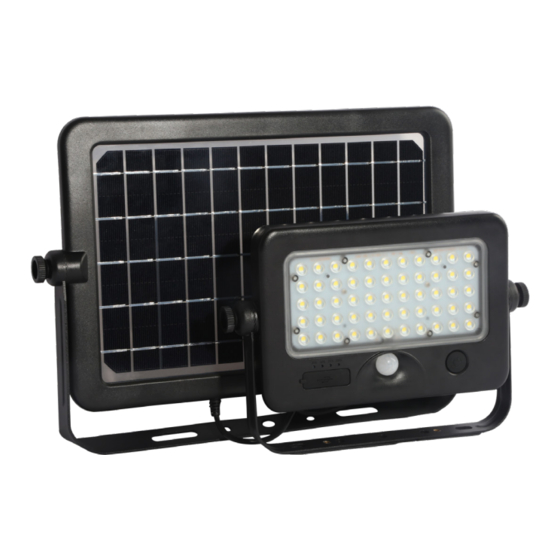

SOLTAB
INSTALLATION MANUAL
10W/1100LM
PLEASE READ AND FOLLOW INSTRUCTIONS FOR PROPER OPERATION
SAVE THIS MANUAL FOR FUTURE REFERENCE
