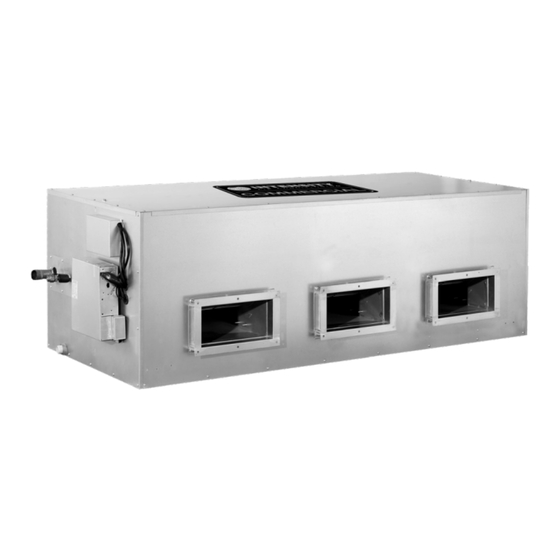

COMMERCIAL SPLIT SYSTEM
COOLING ONLY
220V | 7.5, 10, 15 and 20 Tons.
IDCES090KF-3, IDCES120KF-3, IDCES180KF-3, IDCES240KF-3
IDCCS090KF-5, IDCCS120KF-5
INSTALLATION MANUAL
Thank you very much for purchasing our air conditioner,
Before using your air conditioner, please read this manual carefully and keep it for future reference.
MAN-I-IDCEKF-0624
intensity.mx
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for intensity IDCES090KF-3
Summary of Contents for intensity IDCES090KF-3
- Page 1 COMMERCIAL SPLIT SYSTEM COOLING ONLY 220V | 7.5, 10, 15 and 20 Tons. IDCES090KF-3, IDCES120KF-3, IDCES180KF-3, IDCES240KF-3 IDCCS090KF-5, IDCCS120KF-5 INSTALLATION MANUAL Thank you very much for purchasing our air conditioner, Before using your air conditioner, please read this manual carefully and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS PAGE WARNING PRECAUTIONS..................1 Do not throw or slam the remote controller. ACCESSORIES (INDOOR UNIT).............. 2 INSTALLATING INDOOR UNIT ...............2 Operate the remote controller within the receiving scope of the indoor unit, and direct the transmitting part of the remote INSTALLATING OUTDOOR UNIT............6 controller to the receiver of the indoor unit. -
Page 4: Accessories (Indoor Unit)
Table.2-1 Accessory name Qty. Shape Purpose Pendant bolt hole 4-12 x 25 Owner’s manual IDCES090KF-3 (Unit:mm) Installation manual Fig.3-3 This manual Restriction assembly Connect to system Pendant bolt hole 4-12×72 Water connective pipe... - Page 5 3.1.3 Suspending The Indoor Unit Use a hoisting device to hoist the indoor unit, align it with the installation screw, adjust the horizontality and then tighten it. Pendant bolt Unit body 1895 IDCES180KF-3 , IDCES240KF-3 (Unit:mm) Fig.3-5 Use Φ10 or bigger screws. The screw material is high-quality Fig.3-10 carbon steel (whose surface is zinc plated or undergoes other rustproof treatment) or stainless steel.
- Page 6 After confirming that drainage is smoothly and there is no leakage, wrap the drainpipe with insulation material, or there will be outlet condensed water. 749.5 Side view (Pipes) Fig.3-16 3.1.6 Dimension（Unit:mm） 1655 IDCES090KF-3 1350 1231 1366 Rear view (Air return vent) Fig.3-17 Liquid pipe Gas pipe IDCES180KF-3 , IDCES240KF-3 Outlet Fig.3-13...
- Page 7 Gas side liquid side outlet 749.5 Side view (Pipes) Fig.3-19 1655 Rear view (Air return vent) Fig.3-20 Installation Manual...
-
Page 8: Installating Outdoor Unit
4. INSTALLATING OUTDOOR UNIT Air outlet 4.1 Important: Construction Checkpoints Installation Check the model and name to avoid mistaken installation. Air outlet Air inlet Refrigerant pipe The refrigerant pipes must have the specified diameter. Nitrogen of a certain pressure must be filled into the refrigerant pipe before welding. - Page 9 Fig.4-8 Size of outdoor unit pipes and piping methods Snow protection Table.4-1 Snow protection shed at the air outlet shed at the air inlet Model Gas side Liquid side IDCES090KF-3 IDCES180KF-3 φ φ 22.0 9.52 IDCES120KF-3 φ φ 12.7 IDCES240KF-3...
- Page 10 4.11 Remove Trash And Moist In The Pipe Table.4-2 Trash and foreign matters may come into the pipe in the process of installing the refrigerant pipe. Be sure to blow them off with Allowed nitrogen before connecting the pipe to the outdoor units. value Use high-pressure nitrogen to clean the pipelines.
-
Page 11: Heat Insulation Of The Pipe
4.13 Refrigerant Leak Precautions NOTE NOTE This air conditioner uses refrigerant R410A. The R410A is safe The indoor unit and outdoor unit are categorized into system A refrigerant which is harmless and non-flammable. The room for and system B. When installing and connecting the indoor unit placing the air conditioner should have a proper space. -
Page 12: Install The Connective Pipe
6. INSTALL THE CONNECTIVE PIPE 6.1 Preparation Before Installation Check the height difference between the indoor unit and the outdoor unit, and check the length and number of bends of the refrigerant pipeline, which must meet the following requirements: Max. height difference..25m (If the height difference is greater than 5m, it is best to put the outdoor unit below the indoor unit) Max. - Page 13 6.4 Expelling Air Use refrigerant tank to expel air (see Fig.6-2 and Fig.6-3 ) Screw up the pipe nuts at A, B, C and D completely. From the following table, select a method of expelling air. Loosen remove square-head cover Table.6-2 maintenance orifice nut of valves A and B.
-
Page 14: Install The Drain Pipe
Inspection panel Drain pipe Inspection panel Procedure of using stop valve Open the spool until it touches the stop block. Do not attempt to open further. Use a spanner or a similar tool to tighten the bonnet. The bonnet tightening torque is shown in above table “Tightening torque”. Bush Upon completion of installation, open all valves before trial run. -
Page 15: Electric Connection
The appliance shall be installed in accordance with national wiring regulations. Table.8-1 Indoor unit Outdoor unit Model IDCES090KF-3 IDCES180KF-3 IDCCS090KF-5 Type Mid. static pressure Power 208-230V~ 60Hz 208 -230V 3N~ 60Hz... - Page 16 Power supply wire The specification of power supply wire as follows: Indoor unit <Power supply wire of outdoor unit> In case the power cable is individually provides (no power Control wire between supply device is in use) Manual switch RCCB indoor unit and outdoor unit NOTE...
-
Page 17: Electric Wire Diagram
9. ELECTRIC WIRE DIAGRAM IDCES090KF-3, IDCES120KF-3 Indoor Unit Wire controller C D E Fixed-rate wire controller (option) 5-cord cable RVVP-300/500 5X0.5mm Power supply: 2-cord cable 208-230V~ 60Hz RVV-300/500 2X1.0mm 3-cord cable Power supply: 208 ~230V 3N~ 60Hz 5-cord cable YCW-450/750 5X10mm... - Page 18 IDCES180KF-3, IDCES240KF-3 Indoor Unit Wire controller C D E Fixed-rate wire controller (option) 5-cord cable Power supply: RVVP-300/500 5X0.5mm 208-230V~ 60Hz 3-cord cable 2-cord cable RVV -300/500 2X1.0mm Power supply: Power supply: 208 -230V 3N~ 60Hz 208-230V 3N~ 60Hz 5-cord cable 5-cord cable 3-core shielded wire YCW-450/750 5X 10mm...
-
Page 19: Trial Run
10. TRIAL RUN Indoor unit Please conduct in accordance with “Trial Run Tenor Nameplate” Check whether the switch of the remote controller or wire on the electric control box. controller is normal. Check whether the functional keys of the remote controller or wire controller are normal. - Page 20 Importado por: INTENSITY AIR, S. A. DE C. V. RFC: IAI-100609-SRA. Río Amacuzac #1125, Col. Valle Ote., CP. 66269 San Pedro Garza García, Nuevo León, México. Note: Product specifications change form time to time as product improvements and developments are relased...
