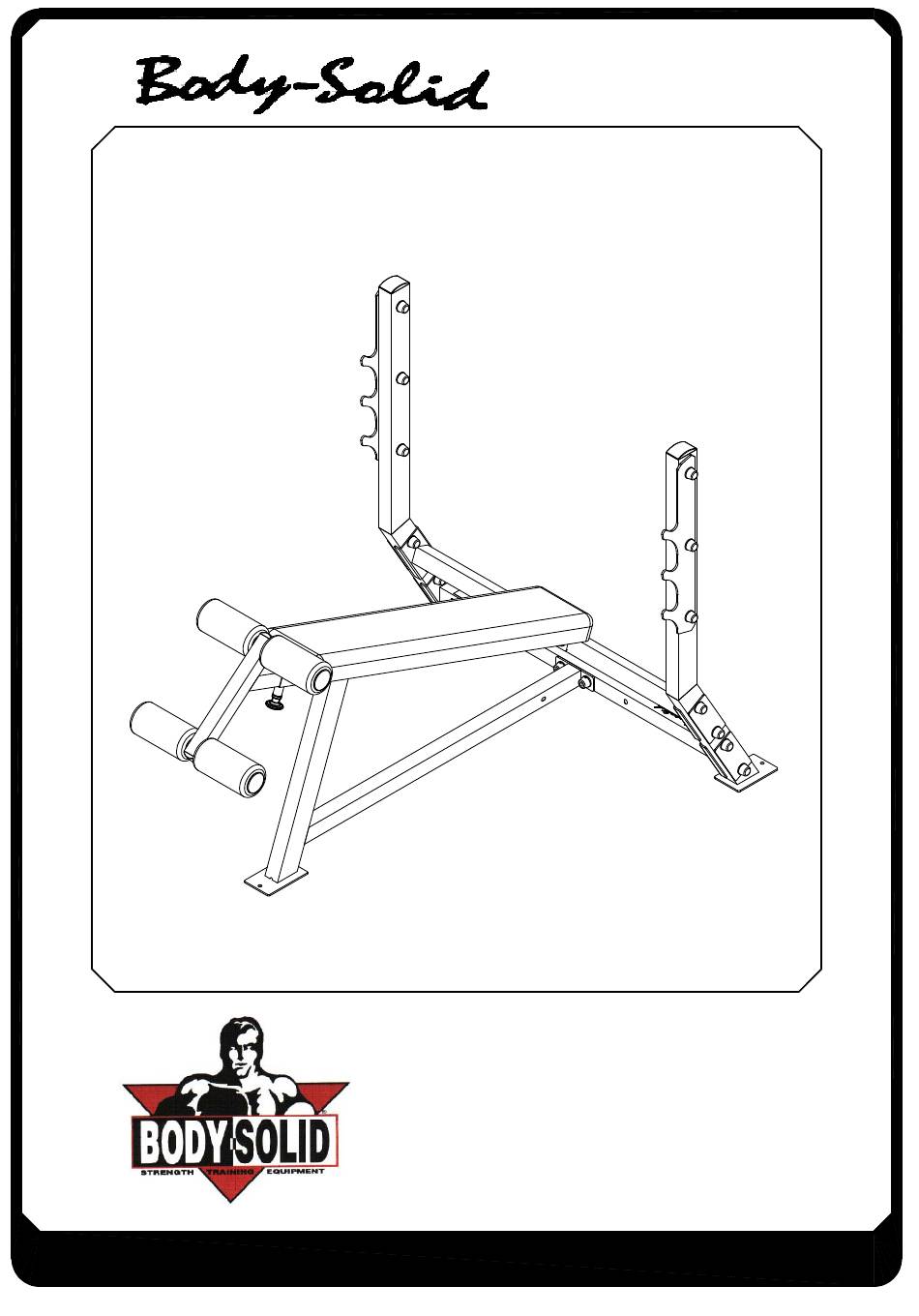

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com SDB-351G OWNER'S MANUAL...
-
Page 2: Hardware Illustration
ASSEMBLY INSTRUCTIONS SDB-351G HARDWARE ILLUSTRATION -----------------------------------------------------[16PCS] A1. 1/2"X3 1/4" HEX HEAD BOLT ------------------------------------------------------[4PCS] A2. 1/2"X3 1/2" HEX HEAD BOLT -----------------------------------------------------[4PCS] A3. 5/16"X1 1/4" HEX HEAD BOLT ------------------------------------------------------------[20PCS] B1. 1/2" NYLON LOCK NUT -----------------------------------------------------------------[40PCS] C1. 1/2" (I.D) WASHER -------------------------------------------------------------[40PCS] C2. 1/2" ROUND WASHER -----------------------------------------------------------------[4PCS] C3. -
Page 3: Parts Illustration
SDB-351G ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION A.[2PCS] E.[1PCS] B.[1PCS] G.[2PCS] C.[1PCS] H.[4PCS] I.[2PCS] D.[1PCS] 8313-075 8312-062 J.[4PCS] 8333-001 K.[2PCS] 8343-062 F.[1PCS] 9111-010 SDB351G-012011 Page... - Page 4 SDB-351G ASSEMBLY INSTRUCTIONS ASSEMBLY-STEMP 1 SDB351G-012011 Page...
-
Page 5: Assembly-Step
SDB-351G ASSEMBLY INSTRUCTIONS ASSEMBLY-STEP 2 Caution when inserting the foot holder into the solt do so with caution as to not damage the bushings . C3X4 C4X4 A3X4 D3X2 THERE IS A RISK ASSUMED BY INNDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT.
