DSS-1 and DSS-2 Hardware Description
Product Overview
HMM-199-A

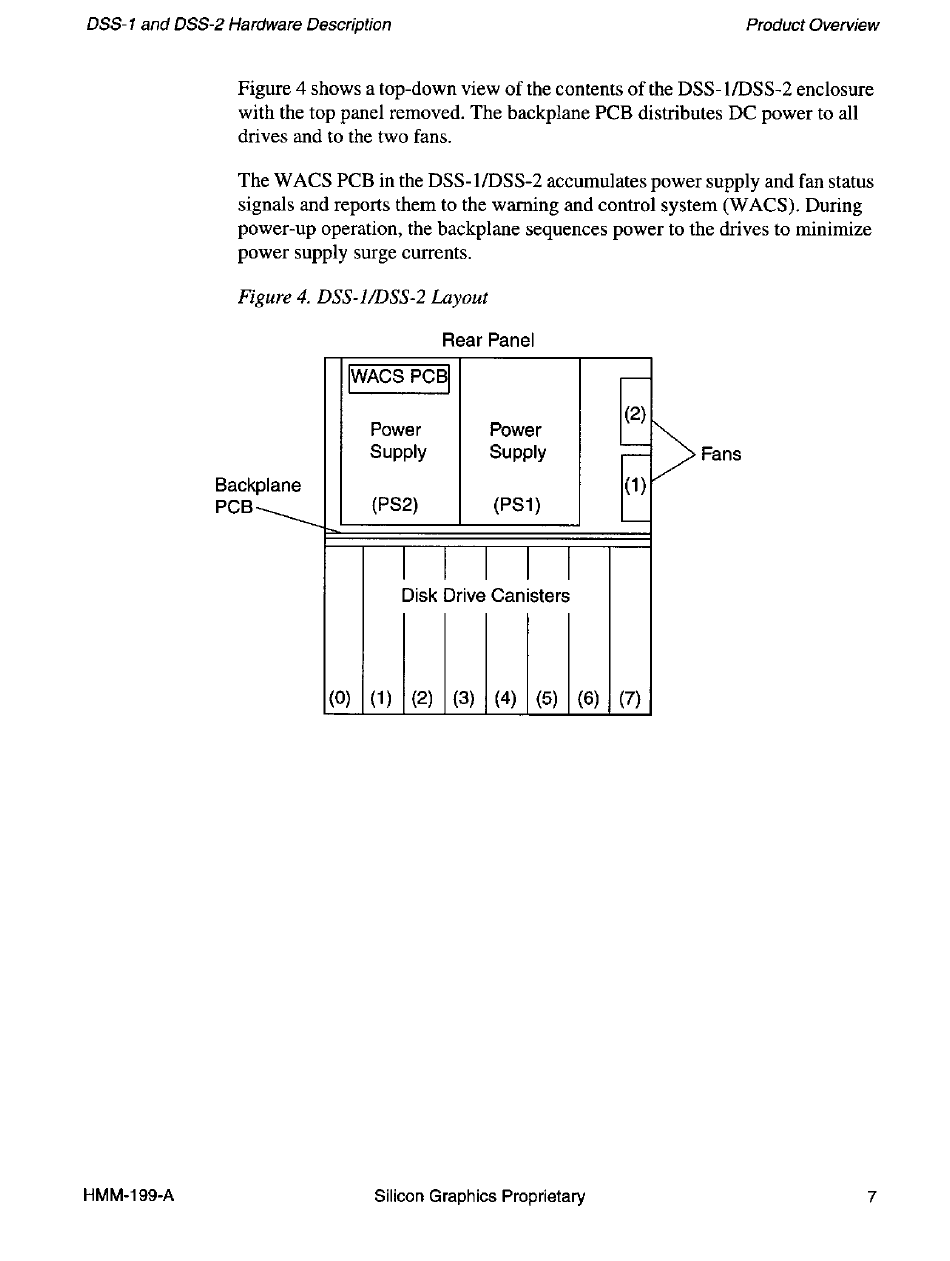

Figure 4 shows a top-down view of the contents of the DSS-lIDSS-2 enclosure
with the top panel removed. The backplane PCB distributes DC power to all
drives and to the two fans.
The WACS PCB in the DSS-lIDSS-2 accumulates power supply and fan status
signals and reports them to the warning and control system (WACS). During
power-up operation, the backplane sequences power to the drives to minimize
power supply surge currents.
Figure
4.
DSS-JIDSS-2 Layout
lane
Backp
PCB
---------
Rear Panel
IWACS PCBI
Power Power
Supply Supply
(PS2) (PS1)
I I I I I
Disk Drive Canisters
(0) (1 ) (2) (3)
(4)
(5) (6)
Silicon Graphics Proprietary
-
(2)
t>
;:=
(1 )
Fans
L -
(7)
7
