Product Overview
DSS-1 and DSS-2 Hardware Description
Table

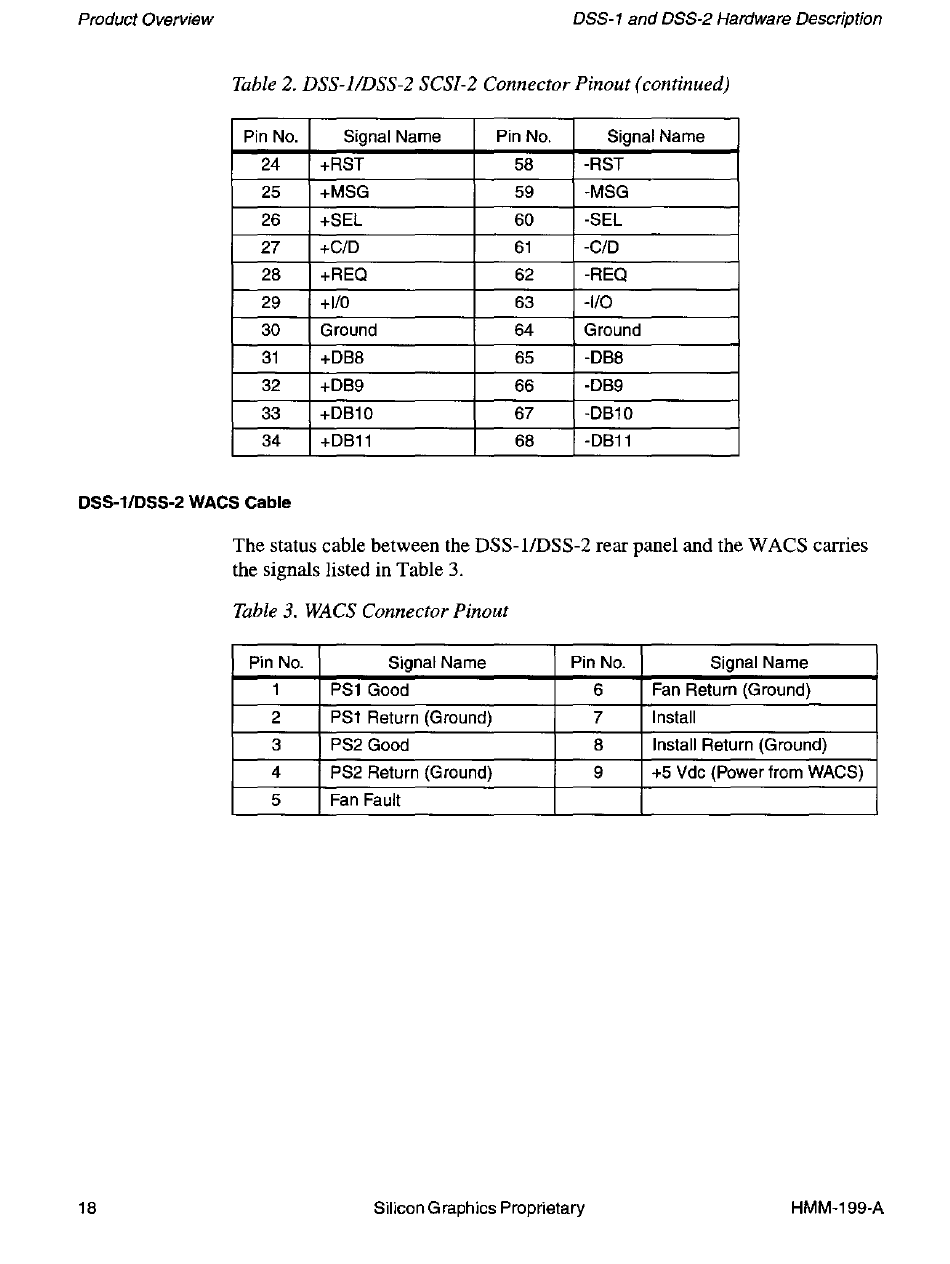

2. DSS-l/DSS-2 SCSI-2 Connector Pinout (continued)
Pin No.
Signal Name
Pin No.
Signal Name
24
+RST
58
-RST
25
+MSG
59
-MSG
26
+SEL
60
-SEL
27
+C/O
61
-C/O
28
+REO
62
-REO
29
+1/0
63
-1/0
30
Ground
64
Ground
31
+088
65
-088
32
+089
66
-089
33
+0810
67
-0810
34
+0811
68
-0811
DS5-1/DSS-2 WACS Cable
18
The status cable between the DSS-l/DSS-2 rear panel and the WACS carries
the signals listed in Table 3.
Table
3. WACS Connector Pinout
Pin No.
Signal Name
Pin No.
Signal Name
1
PSl Good
6
Fan Return (Ground)
2
PSl Return (Ground)
7
Install
3
PS2 Good
8
Install Return (Ground)
4
PS2 Return (Ground)
9
+5 Vdc (Power from WACS)
5
Fan Fault
Silicon Graphics Proprietary
HMM-199-A
