Diskdrive(Dd-314,Dd-318,Andrd-318) - Silicon Graphics DSS-1 Hardware Description

DSS-1 and DSS-2 Hardware Description Product Overview
Disk Drive (00-314,00-318, and RO-318)
HMM-199-A
Each DSS-lIDSS-2 disk drive is mounted in a canister that plugs into the
enclosure. Figure 6 shows the front panel of the disk drive in its canister. DSS-l
drives are available with either 4.5-Gbyte (the DD-3l4) or 9.4-Gbyte (the
DD-3l8) capacities. DSS-2 drives are available with 9.4-Gbyte (the RD-3l8)
capacity. (These drives are not part of the original DD-300 series of IPI disk
drives.)

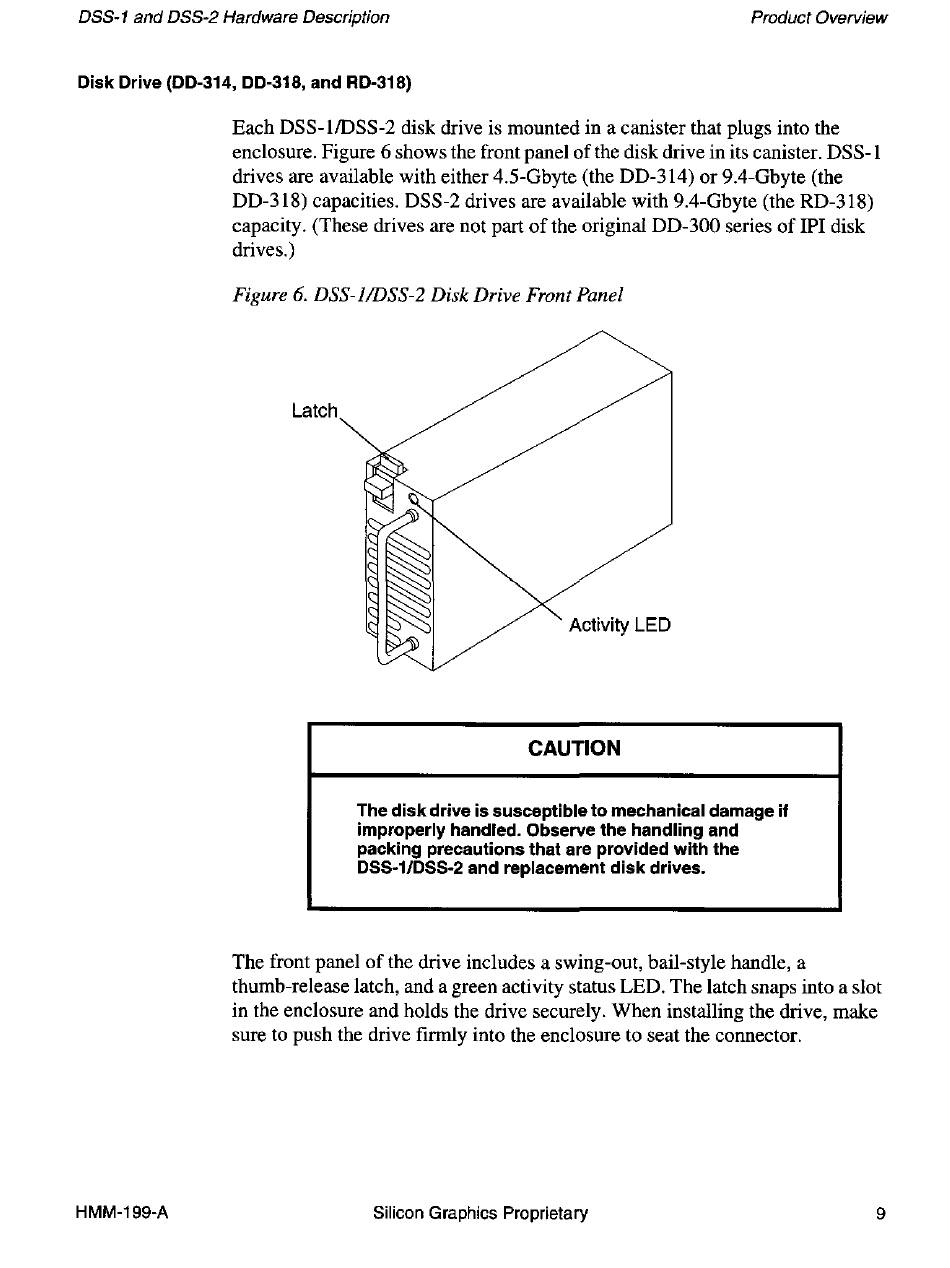

Figure 6. DSS-JIDSS-2 Disk Drive Front Panel
Latch
Activity
LED
CAUTION
The disk drive is susceptible to mechanical damage if
improperly handled. Observe the handling and
packing precautions that are provided with the
OSS-1/0SS-2 and replacement disk drives.
The front panel of the drive includes a swing-out, bail-style handle, a
thumb-release latch, and a green activity status LED. The latch snaps into a slot
in the enclosure and holds the drive securely. When installing the drive, make
sure to push the drive firmly into the enclosure to seat the connector.
