Technical Information

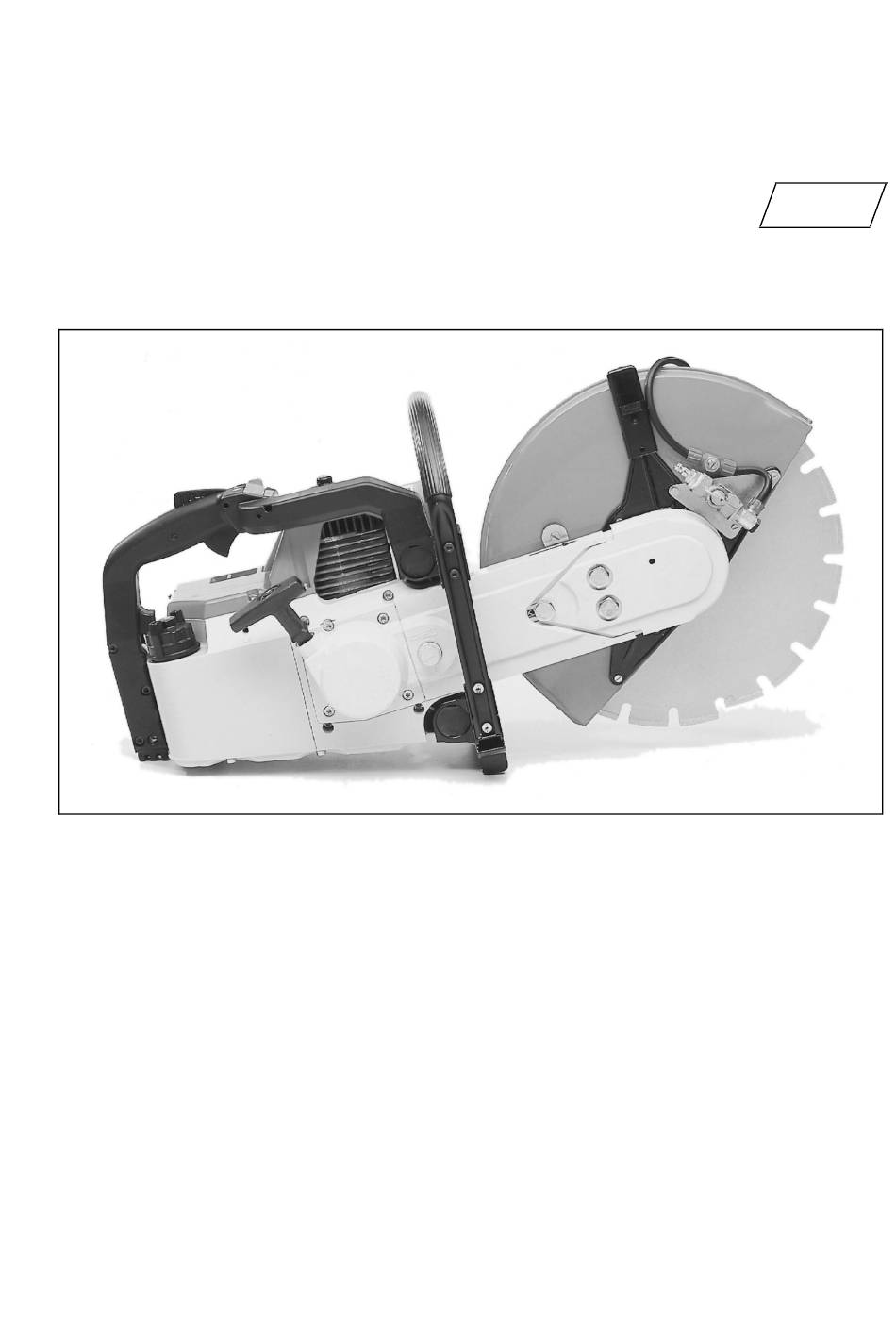

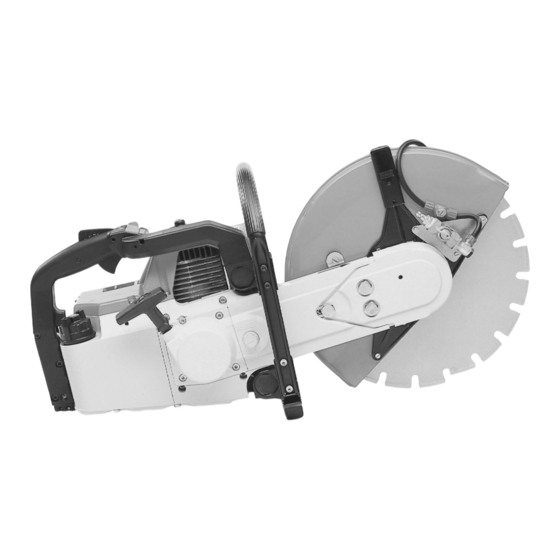

New STIHL TS 460 Cutquik, type 4221
1. General description
The new STIHL TS 460 adds a handy, powerful,
machine to the range of Cutquiks from STIHL.
With an engine power of 3.5 kW (4.75 HP) and a
maximum torque of 4.6 Nm (0.46 kpm), this new
machine meets the high demands of non-stop
handheld or cutquik cartcutting.
With regard to the advanced technical design, the
TS 460 is characterized by fewer components and
shorter repair times.
Other innovative features include the top handle
designed in line with ergonomic requirements and
the semi-automatic V-belt tensioner.
The effective anti-vibration system with five rubber
buffers considerably reduces the stress due to
vibrations.
The slide control with function symbols on the
handle allows convenient operation of the various
functions with the thumb of the right hand.
02.94
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Stihl TS 460
Summary of Contents for Stihl TS 460
- Page 1 New STIHL TS 460 Cutquik, type 4221 1. General description Other innovative features include the top handle The new STIHL TS 460 adds a handy, powerful, designed in line with ergonomic requirements and machine to the range of Cutquiks from STIHL.
- Page 2 Technical Information 02.94 - Page 2 2. Technical description 2.1 Engine unit The newly developed engine comprises a cylinder (1) and two-part crankcase (2). The crankcase is sealed off by two rotary shaft seals with additional dust lip. The cylinder is made from a special aluminium alloy and the bore is galvanically lined with an extremely wear-resistant alloy.
- Page 3 The air filter system is made up of a prefilter, main filter and auxiliary filter. The filters have been specially developed for use in the TS 460 with regard to their mechanical design, materials and manufacturing quality:...
- Page 4 The fuel tank has a capacity of 0.95 litres/2.0 pt (950 ccm). The large filler opening is located on top of the housing and fuel can easily be filled wit- hout spilling (e.g. using the STIHL filling system) while the machine remains in its normal working V-belt tensioner: position.
- Page 5 "depth wheel kit", "water attachment", "Portable water tank" and " water tank" attachment kits. The new attachment kit 4221 007 1000 must be ordered separately in order to secure the TS 460 on the Cutquik cart. All the requisite fastening elements are included with the attachment kit.
- Page 6 Technical Information 02.94 - Page 6 5. Technical data 5.1 Engine STIHL single-cylinder two-stroke engine with specially impregnated cylinder bore Displacement: 72.4 cm (4.42 cu. in) Bore: 48 mm (1.89 in) Stroke: 40 mm (1.57 in) Output to DIN 70020: 3.5 kW (4.75 HP)
- Page 7 Technical Information 02.94 - Page 7 5.4 Tightening torques DG screws are screwed into the plastic parts of the TS 460. These screws are self-tapping when screwed into a material for the first time. The material undergoes permanent deformation. The screws can be removed and retightened as often as desired.
- Page 8 Important note: Only the new locking strip (Item 1) may be used to block the crankshaft of the TS 460. The piston will be damaged if one of the former locking strips in the range of STIHL special servicing tools is used. The new locking strip can be used for all STIHL engines with central, vertical spark plug seat.
- Page 9 Technical Information 02.94 - Page 9 6.2 Existing special servicing tools Part name Part No. Application Rem. Press sleeve 1127 893 2400 Pressing in the rotary shaft seal Assembly sleeve 1122 893 4600 Protecting the rotary shaft seal on the clutch side Puller 0000 890 4400 Removing rotary shaft seals...
- Page 10 The repair times are specified in minutes. Deep groove ball bearing (on the cutting wheel) Note: The table of repair times for Cutquiks of series TS 460 can be transferred to the STIHL V-belt pulley table of repair times (page 9) (either cut along the –...
- Page 11 Screw connection, muffler/engine housing Dirko sealing compound, 100 g 0783 830 2120 Sealing faces on crankcase, exterior of rotary shaft seals STIHL multi-purpose grease 0781 120 1109 High-voltage connection on ignition module HTR ignition lead, 10 m (33’) 0000 930 2251...
