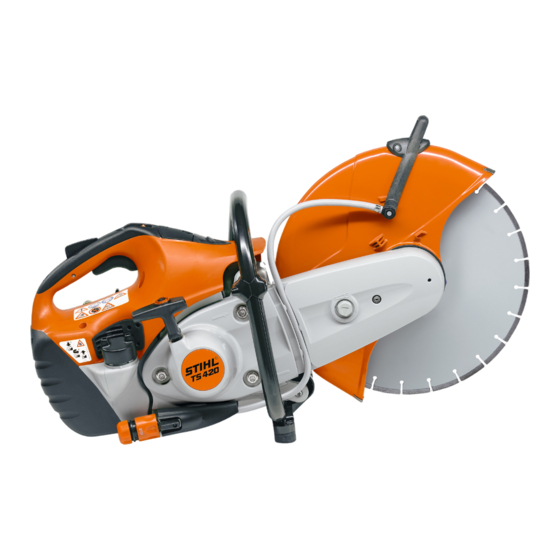

Stihl Cutquik TS-420 Instruction Manual
Hide thumbs
Also See for Cutquik TS-420:
- Instruction manual (112 pages) ,
- Instruction manual (48 pages) ,
- Technical information (11 pages)
Related Manuals for Stihl Cutquik TS-420
Summary of Contents for Stihl Cutquik TS-420
- Page 1 All manuals and user guides at all-guides.com Working safely with cut-off machines Warning! Read and follow all safety precautions in Instruction Manual – improper use can cause serious or fatal injury.
- Page 2 All manuals and user guides at all-guides.com...
-
Page 3: Table Of Contents
You should therefore always refer to the instruction manual of your particular cut-off machine model. Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in this manual. -
Page 4: Safety Precautions And Working Techniques
STIHL Cutquiks. dexterity or judgment. Do not operate a special safety precau- cut-off machine when you are fatigued. - Page 5 ANSI Z 87.1. Proper eye To reduce the risk of burn injury STIHL condition of their hands and fingers. If protection is a must. recommends wearing clothing made of...
- Page 6 Read and follow any addional safety way. Only attachments supplied by serious or fatal injury. precautions that accompany the wheel. STIHL or expressly approved by STIHL for use with the specific STIHL cut-off Warning! Warning! machine models are authorized. Although certain unauthorized attach-...
- Page 7 Transporting the STIHL Cutquik attachments are included with your cutting of material for which the wheel STIHL cut-off machine. See the was not designed may cause the wheel appropriate section of your instruction to shatter causing serious or fatal injury.
- Page 8 Fuel your power tool in well-ventilated clothes immediately. Do not rely upon areas, outdoors. Always shut off the Your STIHL power tool uses an oil- evaporation. Flammable quantities of engine and allow it to cool before refu- gasoline mixture for fuel (see the fuel may remain on clothes after a spill eling.
- Page 9 All manuals and user guides at all-guides.com English Fuel Filler Cap with Screw Thread Starting Warning! Tighten the fuel filler cap as securely as possible Before operation of your cut-off after refuelling. machine, be sure the controls (e.g. throttle trigger, throttle trigger lockout, stop switch) and the safety devices are working properly, the carburetor idle and maximum speed are correctly...
- Page 10 0.6 liters (20 fl.oz) of STIHL dealer check your cut-off water per minute. If wet cutting at the machine and make proper adjustments recommended flow rate is not utilized, or repairs.
- Page 11 Warning! silica. Silica is a basic component of cautious when working on slopes or Your STIHL cut-off machine is designed sand, quartz, brick clay, granite and uneven ground. Take extreme care in for hand-held use or operation on a cut- numerous other minerals and rocks.
- Page 12 All manuals and user guides at all-guides.com English 1. Do not exceed the maximum operating speed marked on the Warning! Warning! wheel. To reduce the risk of injury from fire, do Always check the wheel before use and 2. Do not use a wheel that has been not cut into any pipe, drum or other con- after unintentionally striking any object;...
- Page 13 To reduce the risk of injury from wheel machine. Loss of control can result in STIHL recommends the use of the cart breakage when wet cutting with a com- severe personal injury or death.
- Page 14 Use only cutting attachments author- finished (see illustration.) Never make a ized by STIHL. Use of non-STIHL- cut that results in a binding of the wheel. authorized wheels may be extremely If you cannot properly support the dangerous.
- Page 15 In a pinch situation the water can act use different types of guarding systems 5. Use only STIHL-branded diamond as a lubricant and reduce the that provide the protection necessary for and composite abrasive wheels.
- Page 16 Never operate a cut-off machine that is use only spark plugs authorized by manual. damaged, improperly adjusted or not STIHL. Always press spark plug boot completely or securely assembled. Store wheels on a flat surface in a dry snugly onto spark plug terminal of the...
-
Page 17: Sample Applications
– A pressurized 10 liter water tank is suitable for wet cutting available from STIHL for dust 2. Make certain water does not flow on wheel that is not running, since the suppression. wheel will absorb water and that will –... - Page 18 All manuals and user guides at all-guides.com English Points to be noted with diamond and Cutting in several passes Cutting slabs composite resin cutting wheels Place the slab securely on a non- slip surface. Object to be cut – Must be fully supported –...
- Page 19 All manuals and user guides at all-guides.com English severed part in position. These ridges can subsequently be broken through. Cutting shapes on pipes Curves must be cut in several Cut a guiding groove along the straight passes, taking care to marked cutting line, starting at the ensure that the cutting wheel does top and moving out towards both...
-
Page 20: Cutting Wheels
Cutting wheels are exposed to extremely high loads especially during freehand cutting. The cutting wheels, which have been developed by STIHL in cooperation with renowned manufacturers of abrasive wheels, are of high quality and tailored precisely to the respective intended use as well as the engine performance of the cut-off machine. - Page 21 Concrete, Asphalt Stone (rock) Rock, Concrete – The numerals indicate the performance class of the STIHL diamond cutting wheel. Radial and axial run-out A correctly mounted spindle bearing on the cut-off machine is essential for a long service life and efficient operation of the diamond cutting wheel.
- Page 22 Undercutting Cutting in a material for which the wheel is Use a new cutting wheel; note the differ- not rated ent cutting layers in different materials STIHL recommends that a STIHL servicing dealer be consulted. Working safely with cut-off machines...
- Page 23 All manuals and user guides at all-guides.com English Undercut – when cutting extremely hard material, such as granite, Warning! – as a result of incorrect handling, Such cutting wheels may break apart or such as applying excessive feed throw off segments during use, causing force, serious or fatal injury.
-
Page 24: Maintenance And Care
All manuals and user guides at all-guides.com English Maintenance and Care The following maintenance intervals apply in normal operating conditions. The specified intervals must be shortened accordingly when working for longer than normal or under difficult cutting conditions (extensive dust, etc.). Visual inspection (condition, leaks) Complete machine Clean... - Page 25 Antivibration elements Have them replaced by a specialist dealer test, check Abrasive wheel Replace test, check Supports/rubber buffers (underneath the machine) Replace Safety information sticker Replace STIHL recommends STIHL servicing dealers present only in some countries Working safely with cut-off machines...
-
Page 26: Main Parts
All manuals and user guides at all-guides.com English Main Parts Rear Handle Throttle Trigger Lockout Throttle Trigger Slide Control Starter Grip Carburetor Adjusting Screws Fuel Filler Cap Water Attachment Tensioning Nut 10 Adjusting Lever 11 Abrasive Wheel 12 Front Thrust Washer 13 Guard 14 Muffler 15 Spark Arresting Screen... - Page 27 All manuals and user guides at all-guides.com English Definitions 12 Front Thrust Washer Belt Pulley Distributes clamping pressure of The wheel that drives the ribbed belt mounting nut evenly over cutting and the abrasive wheel. (Not Rear Handle wheel. illustrated) The support handle for the right 13 Guard Anti-Vibration System...
- Page 28 To reduce your exposure to these chemicals : work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. 0457-186-3021 englisch englisch USA www.stihl.com *04571863021* 0457-186-3021...
