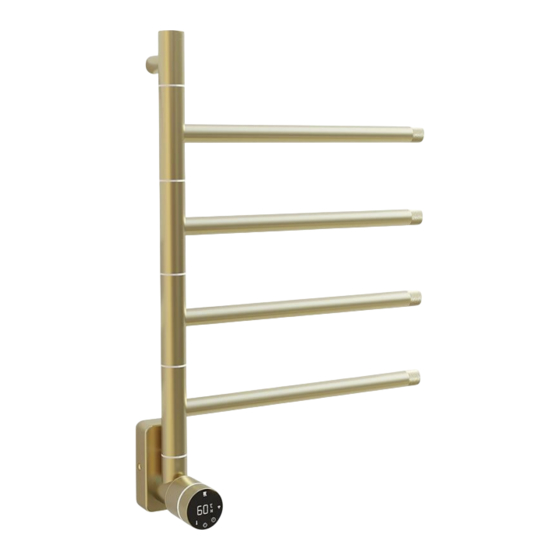

Electric wifi towel radiator, gold/chrome

Advertisement

Available languages

Available languages

Quick Links

Elektrische Wifi handdoek radiator
Goud/Chrome

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-CR04P-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Quality Heating F-CR04P-T

  • Page 1 Elektrische Wifi handdoek radiator Goud/Chrome...
  • Page 2 Inhoud 1. Veiligheidswaarschuwingen 2. Technische specificaties 3. Installatie 4. Gebruik 5. Wifi 6. Troubleshooting...
  • Page 3 Veiligheidswaarschuwingen...
  • Page 4 Let op, waarschuwingen! • Controleer welke serie u heeft gekocht en installeer volgens de tips in het installatiegedeelte! Let op, mocht u deze niet opvolgen vervalt de garantie op uw product. • Verwijder voor gebruik de beschermfolie (aan de voorzijde) indien aanwezig.
  • Page 5 • Houd rekening met het opgenomen vermogen van het apparaat, de kabellengte en het beoogde gebruik bij het kiezen van verlengsnoeren voor het netsnoer. Rol verlengkabels volledig af. Om elektrische overbelasting te vermijden. • Haal voor onderhouds-, verzorgings- of reparatiewerkzaamheden aan het apparaat de stekker uit het stopcontact.
  • Page 6 • Waarschuwing: Dit product moet zo ver mogelijk van doucheruimtes, badkuipen of plaatsen waar gemakkelijk water op kan spatten, worden geïnstalleerd of gebruikt Quality Heating Phoenixstraat 35-37 1812PP Alkmaar NL...
  • Page 7 Technische specificaties F-CR04P-T / F-CR04P-D Model 230V Aansluiting 58x41x13 Afmeting in cm 3,3 KG Gewicht in kg 60Watt Vermogen IP X4 IP waarde 8720986328166 / 8720986328159 2 Jaar Garantie Quality Heating Merk 57cm (opgerold) Aansluitsnoer Roestvrij staal 304 Materiaal Inhoud verpakking:...
  • Page 8 Installatie Schroevendraaier Markeerstift Boormachine Meetlint Hamer Let op: Algemene installatie-instructies voor roterende modellen, het wordt aanbevolen om op een hoogte van 1200 mm vanaf de grond te installeren. 1200 mm hoogte Stap 1 Stap 2 Voor verborgen installatie, Inbouwdoos sluit eerst de draden aan en installeer vervolgens het hoofdgedeelte Stap 3 Stap 4...
  • Page 9 • Stap 2: Plaats de rubberdeeltjes in de voorgeboorde installatiegaten en draai ze vast met schroeven. (Trek voor verborgen installatie de draden eruit voordat u het hoofdgedeelte installeert en vastmaakt) Zoals weergegeven in Afbeelding 2 • Stap 3: Installeer het handdoekrek op de geïnstalleerde hangende basis en vergrendel de basis met de speciale schroeven van het handdoekreklichaam.
  • Page 10 Scan de QR-code die hier rechtsboven is weergegeven om de app direct te downloaden of zoek in de Google Play store (Android) of App store (IOS) naar: Quality Heating. Druk hierna op downloaden om de app te installeren. Stap 2 Registreer een account of log in Log na installatie van de app in of registreer een nieuw account (Fig 2-1).
  • Page 11 Stap 3 Creëer een huis Ga naar profiel (rechtsonder) en ga naar Home-beheer (Fig. 3- Geef je huis een naam door te klikken op Home-naam (Fig. 3-2). Stel je locatie in door te klikken op ‘’plaats’’ en klik op bevestigen. (Dit hoeft niet precies uw adres te zijn, zie Fig. 3-3). Stap 4 Verbind uw thermostaat met Wi-Fi Zet de elektrische handdoek radiator aan.
  • Page 12 Trouble Shooting Foutmelding Oorzaak Oplossing De elektrische Het netsnoer is niet Controleer het netsnoer handdoekradiator werkt goed aangesloten niet. De elektrische Het netsnoer is Raadpleeg een handdoekradiator werkt beschadigd elektricien om het niet. netsnoer te vervangen...
  • Page 13 Electric Wifi towel radiator Gold/Chrome...
  • Page 14: Table Of Contents

    Contents 1. Safety Warnings 2. Technical specifications 3. Installation 4. Usage 5. WiFi 6. Troubleshooting...
  • Page 15: Safety Warnings

    Safety Warnings Symbol Meaning Warning! This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death. Warning of electrical voltage! This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death due to electrical voltage.
  • Page 16 Attention, warnings! • Check which series you purchased and install according to the tips in the installation section! Please note that if you do not follow these instructions, the warranty on your product will be void. • Remove the protective film (on the front) before use, if present.
  • Page 17 • Consider the device's power consumption, cable length, and intended use when choosing power cord extensions. Unwind extension cables completely. To avoid electrical overload. • Before maintenance, care or repair work on the device, remove the plug from the socket. Hold the plug firmly and do not plug it back into the socket until the above has been completed.
  • Page 18 • Warning: This product should be installed or used as far as possible from shower areas, bathtubs or places where water is prone to splashing Quality Heating Phoenixstraat 35-37 1812PP Alkmaar NL...
  • Page 19: Technical Specifications

    Technical specifications F-CR04P-T / F-CR04P-D Fashion model 230V Connection 58x41x13 Dimensions in cm 3.3KG Weight in kg 60Watt Assets IP x4 IP value 8720986328166 / 8720986328159 2 years Guarantee Quality Heating Brand 57cm (rolled up) Connection cable Stainless steel 304...
  • Page 20: Installation

    Installation Screwdriver Highlighter Drilling Measuri Hamm machine ng tape Please note: General installation instructions for rotary models, it is recommended to install at a height of 1200mm from the ground. 1200mm height Step 1 Step 2 For hidden installation, Flush- mounted first connect the wires and then install the main body...
  • Page 21: Usage

    • Step 2: Place the rubber particles into the pre-drilled installation holes and tighten them with screws. (For concealed installation, pull out the wires before installing and tightening the main body) As shown in Picture 2 • Step 3: Install the towel rack on the installed hanging base and lock the base with the special screws of the towel rack body.
  • Page 22: Wifi

    Scan the QR code shown above right to download the app directly or search in the Google Play store (Android) or App store (IOS) for: Quality Heating. Then press download to install the app. Step 2 Register an account or log in...
  • Page 23 Step 3 Create a house Go to profile (bottom right) and go to Home management (Fig. 3- Name your home by clicking Home Name (Fig. 3-2). Set your location by clicking on ''place'' and click on confirm. (This does not have to be exactly your address, see Fig. 3-3). Step 4 Connect your thermostat to Wi-Fi Turn on the electric towel radiator .
  • Page 24: Troubleshooting

    Trouble Shooting Error message Cause Solution The electric towel The power cord is not Check the power cord radiator does not work. connected properly The electric towel The power cord is Consult an electrician radiator does not work. damaged to replace the power cord...
  • Page 25 Elektrischer WLAN-Handtuchheizkörper Gold/Chrom...
  • Page 26 Inhalt 1. Sicherheitswarnungen 2. Technische Spezifikationen 3. Installation 4. Verwendung 5. W-lan 6. Fehlerbehebung...
  • Page 27: Sicherheitswarnungen

    Sicherheitswarnungen Symbol Meaning Achtung! Dieses Symbol weist auf eine Gefahr mit mittlerem Risiko hin, die, wenn sie nicht vermieden wird, zu schweren Verletzungen oder zum Tod führen kann. Warnung vor elektrischer Spannung! Dieses Symbol weist auf eine Gefährdung mit mittlerem Risikograd hin, die, wenn sie nicht vermieden wird, zu schweren Verletzungen oder zum Tod durch elektrische Spannung führen kann.
  • Page 28 Achtung, Warnungen! • Überprüfen Sie, welche Serie Sie erworben haben und installieren Sie diese gemäß den Tipps im Abschnitt Installation! Bitte beachten Sie, dass die Garantie für Ihr Produkt erlischt, wenn Sie diese Anweisungen nicht befolgen. • Entfernen Sie vor Gebrauch die Schutzfolie (auf der Vorderseite), sofern vorhanden.
  • Page 29 • Stellen Sie sicher, dass alle elektrischen Leitungen außerhalb des Geräts vor Beschädigungen (z. B. durch Tiere) geschützt sind. Benutzen Sie das Gerät niemals, wenn elektrische Kabel oder der Stromanschluss beschädigt sind! • Der elektrische Anschluss muss den Angaben im Kapitel Technische Daten entsprechen.
  • Page 30 • Benutzen Sie das Gerät nicht in der Nähe von Badewannen, Duschwannen, Schwimmbädern oder anderen Wasserreservoirs. Schauen Sie sich vorab genau den IP-Wert dieses Produkts an, anhand dessen können Sie dessen Platzierung in der richtigen Zone bestimmen. • Das Produkt sollte so positioniert werden, dass die Schalter und Steuerung(en) nicht von Personen in einer Badewanne, Dusche und/oder einem Schwimmbad berührt werden können.
  • Page 31: Technische Spezifikationen

    Technische Spezifikationen F-CR04P-T / F-CR04P-D Modemodell 230V Verbindung 58x41x13 Maße in cm 3,3 kg Gewicht in kg 60 Watt Vermögenswerte IP X4 IP-Wert 8720986328166 / 8720986328159 2 Jahre Garantie Qualitätsheizung Marke 57cm (aufgerollt) Verbindungskabel Edelstahl 304 Material Packungsinhalt: - Elektrischer Handtuchheizkörper...
  • Page 32: Installation

    Installation Schraubendreher Textmarker Bohrmaschin Maßba Hamm Bitte beachten Sie: Allgemeine Installationshinweise für Rotationsmodelle, es wird empfohlen, sie in einer Höhe von 1200 mm über dem Boden zu installieren. 1200 mm Höhe Schritt 1 Schritt 2 Für versteckte Installation, Unterputzdo Verbinden Sie zuerst die Drähte und Installieren Sie dann den Hauptkörper Schritt Schritt...
  • Page 33: Verwendung

    • Schritt 2: Legen Sie die Gummipartikel in die vorgebohrten Montagelöcher und befestigen Sie sie mit Schrauben. (Ziehen Sie bei verdeckter Installation die Drähte heraus, bevor Sie das Hauptgehäuse installieren und festziehen.) Wie in Bild 2 gezeigt • Schritt 3: Installieren Sie den Handtuchhalter auf der installierten Hängebasis und befestigen Sie die Basis mit den Spezialschrauben des Handtuchhalterkörpers.
  • Page 34: W-Lan

    Schritt 1 Laden Sie die Quality Heating-App herunter Scannen Sie den oben rechts angezeigten QR-Code, um die App direkt herunterzuladen, oder suchen Sie im Google Play Store (Android) oder App Store (IOS) nach: Quality Heating. Klicken Sie dann auf „Herunterladen“, um die App zu installieren.
  • Page 35 Schritt 3 Erstellen Sie ein Haus Gehen Sie zum Profil (unten rechts) und gehen Sie zur Home- Verwaltung (Abb. 3-1). Benennen Sie Ihr Zuhause, indem Sie auf „Heimname“ klicken (Abb. 3-2). Legen Sie Ihren Standort fest, indem Sie auf „Ort“ klicken und auf „Bestätigen“...
  • Page 36: Fehlerbehebung

    Fehlerbehebung Fehlermeldung Ursache Lösung Der elektrische Das Netzkabel ist nicht Überprüfen Sie das Handtuchheizkörper richtig angeschlossen Netzkabel funktioniert nicht. Der elektrische Das Netzkabel ist Wenden Sie sich zum Handtuchheizkörper beschädigt Austausch des funktioniert nicht. Netzkabels an einen Elektriker...
