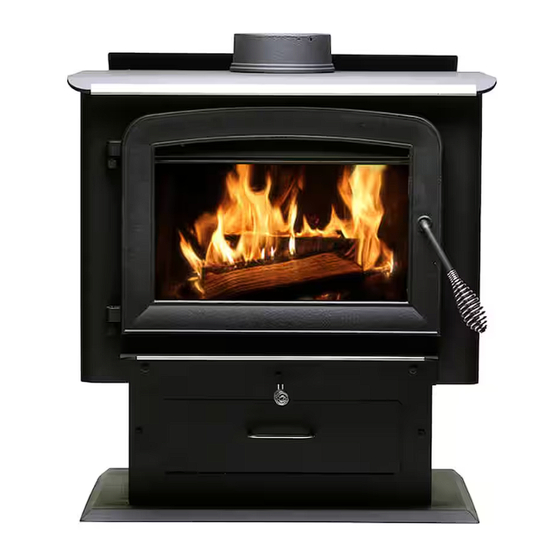

Owner's Instruction and Operation Manual
Model Numbers:
AW2020
AW2020-BL
AW2020-WP
AW2020-L
Report Number: F19-476R3
Tested Per EPA M28R & ASTM E2515 and CSA B415.1-10
Certified to UL 1482-2022, CAN/ULC S627:2023
Mobile home / transportable building approved
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
Save These Instructions In A Safe Place For Future Reference.
SAFETY NOTICE: If this heater is not properly installed, a house fire may result.
For your safety, follow the installation instructions. Never use make-shift
compromises during the installation of this heater. Contact local building or
fire officials about permits, restrictions and installation requirements in your
area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury,
or even death. Improper Installation Will Void Your Warranty!
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emissions standards.
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
© 2024 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380
• AW2020-BP
• AW2020-W
• AW2020-P
R
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to
854108-1206N
www.P65warnings.ca.gov
Ph. 800-750-2723
Advertisement
Table of Contents
Related Manuals for United States Stove Ashley AW2020
Summary of Contents for United States Stove Ashley AW2020
- Page 1 State of California to cause emissions standards. cancer, birth defects, and/or other reproductive harm. For more information, go to www.P65warnings.ca.gov THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE. © 2024 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380 Ph. 800-750-2723...
- Page 2 Text to 423-301-5624 or; You can also register your product online at www.usstove.com/support/product-registration Email us at: / OR by downloading the US Stove Company customerservice@usstove.com app available for iOS and Android. © 2024 United States Stove Company...
-
Page 3: Installation Checklist
Signed: ___________________________________ Print Name: ______________________________ Date: _____________ Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE © 2024 United States Stove Company... -
Page 4: Tools And Materials
Mount the flue collar to the top of the unit as shown using the (3) 5/16-18 x 1-1/2 bolts, (3) washers, and (3) weld tabs provided in the parts box. 5/6-8 x 1-1/2 BOLT WASHER GASKET HEATER TOP WELD TAB © 2024 United States Stove Company... -
Page 5: Installation
WHEN REQUIRED. by the installation of a blower. The wood stove must not be hooked up to a hot air distribution system since an excessive accumulation of heat may occur. © 2024 United States Stove Company... -
Page 6: Floor Protector
Your wood stove is approved to be installed with an • The clearance between the flue pipe and a wall outside air intake (4FAK) which is necessary for a are valid only for vertical walls and for vertical flue © 2024 United States Stove Company... - Page 7 3. Install one bracket per leg or consult your local the stove. Next tighten the hose clamp over the end authority having jurisdiction to determine how of the aluminium flex hose. many points of attachment are required. © 2024 United States Stove Company...
-
Page 8: Chimney Connector (Stove Pipe)
The amount of draft chimney fires. Note that it is the chimney and not in your chimney depends on the length of the the stove which creates the draft effect; your stove’s © 2024 United States Stove Company... -
Page 9: Factory Built Chimney
Listed Cap Sheathing Maintain 2” Storm Collar Clearance Flashing Listed Chimney Ceiling To Stove Support * Refer to Clearance Floor Chimney to Combustibles Connector Protector Airtight Cleanout Door To Stove Combustible Wall Floor Protector © 2024 United States Stove Company... - Page 10 8” (2 inches [51 mm] larger than the 6” [152.4 mm] chimney connector). Use this as a pass-through for a minimum 24-gauge single wall steel chimney connector. Keep solid-pak section concentric with and spaced 1” (25.4 mm) off the © 2024 United States Stove Company...
- Page 11 • A chimney connector shall not pass through an liner. attic or roof space, closet or similar concealed space, or a floor, or ceiling. © 2024 United States Stove Company...
-
Page 12: Wood Stove Utilization
PERMANENT DAMAGE TO THE HEATER. 6. Materials containing asbestos; Construction or demolition debris; 8. Railroad ties or pressure-treated wood; 9. Manure or animal remains; 10. Saltwater driftwood or other previously salt water-saturated materials; 11. Unseasoned wood; or © 2024 United States Stove Company... -
Page 13: Testing Your Wood
Do not burn manufactured logs made of wax the chimney, and it also consumes less wood. impregnated sawdust or logs with any chemical additives. © 2024 United States Stove Company... -
Page 14: Fueling Instructions
For a low burn setting once the high temperature. burn (or medium) fuel load is burned down to an established coal bed, load the unit with 19 lbs of cordwood and close the door immediately. Leave © 2024 United States Stove Company... -
Page 15: Air Tubes
WOOD STOVE. BUILD FIRE DIRECTLY ON FIREBRICK. • NEVER PUT WOOD ABOVE THE FIREBRICK LINING OF THE FIREBOX. • ATTEMPTS TO ACHIEVE HEAT OUTPUT RATES THAT EXCEED HEATER DESIGN SPECIFICATIONS RESULT PERMANENT DAMAGE TO THE HEATER. © 2024 United States Stove Company... -
Page 16: Chimney Maintenance
TRAP OPEN. THIS WOULD RESULT IN OVER • Always burn dry wood. This allows clean burns FIRING THE STOVE. DAMAGE TO THE STOVE and higher chimney temperatures, therefore less AND EVEN HOUSE FIRE MAY RESULT. creosote deposit. © 2024 United States Stove Company... -
Page 17: Glass Care
Part numbers and descriptions can be found in the “Repair Parts” section of this manual. Once this information has been gathered you can contact customer service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com. Model Information Model Number Serial Number © 2024 United States Stove Company... - Page 18 DO NOT INSTALL IN AN ALCOVE non-combustible pad that will provide ember DO NOT INSTALL IN ANY FIREPLACE protection. The 450 mm (18in) ember protection © 2024 United States Stove Company...
-
Page 19: Repair Parts
Email to: parts@usstove.com IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. © 2024 United States Stove Company... - Page 20 Email to: parts@usstove.com IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. © 2024 United States Stove Company...
-
Page 21: Service Record
Engineer Name: _______________________________ Engineer Name: _______________________________ License No.: ____________________________________ License No.: ____________________________________ Company: _____________________________________ Company: _____________________________________ Telephone No.: _________________________________ Telephone No.: _________________________________ Stove Inspected: Chimney Swept: Stove Inspected: Chimney Swept: Items Replaced: _______________________________ Items Replaced: _______________________________ © 2024 United States Stove Company... - Page 22 NOTES © 2024 United States Stove Company...
- Page 23 NOTES © 2024 United States Stove Company...
