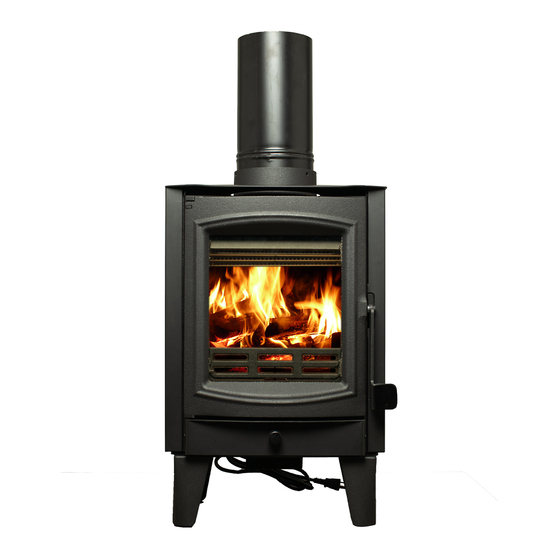

Owner's Instruction and Operation Manual
Model Number:
TH100
Report Number: F22-781
Tested Per EPA Methods 28R and ASTME2515
and ASTME2780 and CSAB415.1
Certified to UL 1482-2022 and
ULC-S627:2023
Mobile home/transportable building approved
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
Save These Instructions In A Safe Place For Future Reference.
SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For
your safety, follow the installation instructions. Never use make-shift compromises
during the installation of this heater. Contact local building or fire officials about
permits, restrictions and installation requirements in your area. NEVER OPERATE
THIS PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury, or
even death. Improper Installation Will Void Your Warranty!
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emissions standards.
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
© 2023 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to
853954-4305L
www.P65warnings.ca.gov
Ph. 800-750-2723
Advertisement
Table of Contents
Related Manuals for United States Stove TH100
Summary of Contents for United States Stove TH100
- Page 1 State of California to cause emissions standards. cancer, birth defects, and/or other reproductive harm. For more information, go to www.P65warnings.ca.gov THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE. © 2023 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380 Ph. 800-750-2723...
- Page 2 INTRODUCTION This manual describes the installation and operation of the USSC TH100 wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s cordwood emission limits for wood heaters sold after May 15, 2020. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 10,652 to 26,028 Btu/hr with 1.7 g/hr and 75% efficiency.
-
Page 3: Installation Checklist
Declaration of Completion: As the qualified person responsible for the work described above, I confirm that the appliance as associated work has been installed as per manufacturer’s instructions and following any applicable building and installation codes. Signed: ______________________________________ Print Name: __________________________________Date: ______________ Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE © 2023 United States Stove Company... -
Page 4: Tools And Materials
Do not route the supply cord near or across hot surfaces! Fix the assembly to the back of the stove with the four screws provided. To install: © 2023 United States Stove Company... - Page 5 This diffuser is critical to the proper functionality for the cleanest burning fires in your stove. Step 3: Attach FAILURE TO INSTALL THE DIFFUSER CAN RESULT IN FIRE, PROPERTY DAMAGE AND/OR DEATH. Optional © 2023 United States Stove Company...
-
Page 6: Installation
REQUIRED. since it may block the way in case of fire or fail to respect • THIS ROOM HEATER SHALL NOT BE INSTALLED required clearances. IN A FACTORY BUILT FIREPLACE. © 2023 United States Stove Company... -
Page 7: Floor Protector
• To reduce flue clearances from combustible materials, contact your local safety department. 5. There is excessive condensation on windows in the winter. • Floor to ceiling height must be at least 7’ (2.13m). © 2023 United States Stove Company... - Page 8 The use of components that are not meant THEREFORE IT MUST BE A TYPE HT (2100°F). for this unit can cause unsafe conditions. • USE A SPARK ARRESTER. • THE STOVE MUST BE ATTACHED TO THE STRUCTURE MOBILE HOME/ TRANSPORTABLE BUILDING. © 2023 United States Stove Company...
-
Page 9: Chimney Connector (Stove Pipe)
4. The draft caused by the tendency for hot air to rise will cause the appliance to leak smoke into the room will be increased with an interior chimney. through appliance and chimney connector joints. An © 2023 United States Stove Company... -
Page 10: Factory Built Chimney
Be sure to the chimney cleaned before the stove is installed and operated. When connecting the stove through a combustible wall to a masonry chimney, special methods are needed. © 2023 United States Stove Company... - Page 11 • A chimney connector shall not pass through an attic or roof space, closet or similar concealed space, or a floor, or ceiling. © 2023 United States Stove Company...
- Page 12 2/3 seasoned. Smaller pieces of wood will dry faster. All logs exceeding 6” in diameter should be split. The wood should not be stored directly on the ground. Air should circulate through © 2023 United States Stove Company...
-
Page 13: Testing Your Wood
It is against federal to meet strict 2020 guidelines. To ensure this unit regulations to alter this setting or otherwise operate this produces the optimal minimum emissions it is critical © 2023 United States Stove Company... -
Page 14: Air Tubes
“burn” season and air-blown clean, removing any dust or Once the updraft movement is initiated, you are ready to build-up. ignite the stove by lighting the paper and kindling wood © 2023 United States Stove Company... -
Page 15: Chimney Maintenance
While the modern combustion systems in operating temperatures. The secondary combustion heaters drastically reduce the amount of CO emitted can only take place if the firebox is hot enough. © 2023 United States Stove Company... -
Page 16: Glass Care
Part numbers and descriptions can be found in the “Repair Parts” section of this manual. Once this information has been gathered you can contact customer service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com. Model Information Model Number Serial Number © 2023 United States Stove Company... - Page 17 200 mm (8 in) beyond the appliance on DO NOT INSTALL IN AN ALCOVE other sides, shall be protected by a continuous, durable, DO NOT INSTALL IN ANY FIREPLACE © 2023 United States Stove Company...
-
Page 18: Repair Parts
Email to: parts@usstove.com IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. © 2023 United States Stove Company... - Page 19 Email to: parts@usstove.com IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. © 2023 United States Stove Company...
-
Page 20: Service Record
Engineer Name: ____________________________________ Engineer Name: ____________________________________ License No.: ________________________________________ License No.: ________________________________________ Company: __________________________________________ Company: __________________________________________ Telephone No.: _____________________________________ Telephone No.: _____________________________________ Stove Inspected: Chimney Swept: Stove Inspected: Chimney Swept: Items Replaced: ____________________________________ Items Replaced: ____________________________________ © 2023 United States Stove Company...
