Owner's Instruction and Operation Manual
Model Number:

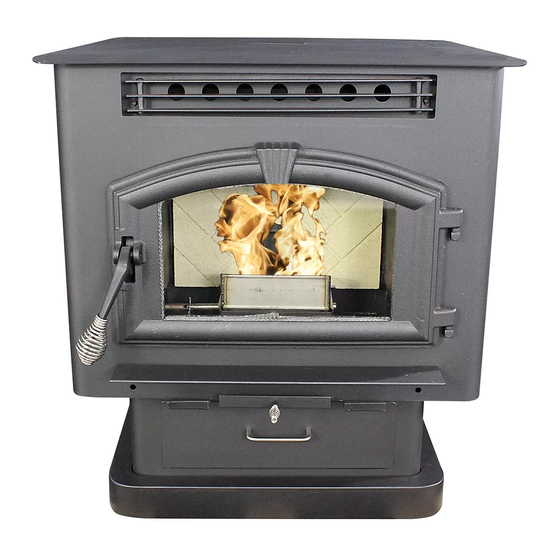

6041 Multi-Fuel Stove
Report Number: F20-573
Tested Per EPA Method ASTM E2779-10
and ASTM E1509-2022
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
Save These Instructions In A Safe Place For Future Reference.
SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For
your safety, follow the installation instructions. Never use make-shift compromises
during the installation of this heater. Contact local building or fire officials about
permits, restrictions and installation requirements in your area. NEVER OPERATE
THIS PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury, or
even death. Improper Installation Will Void Your Warranty!
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emissions standards.
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
© 2023 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380
R
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to www.P65warnings.ca.gov
854082-4306M
Ph. 800-750-2723
Advertisement
Table of Contents
Related Manuals for United States Stove 6041
Summary of Contents for United States Stove 6041
- Page 1 State of California to cause emissions standards. cancer, birth defects, and/or other reproductive harm. For more information, go to www.P65warnings.ca.gov THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE. © 2023 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380 Ph. 800-750-2723...
-
Page 2: Specifications
SPECIFICATIONS This manual describes the installation and operation of the United States Stove Company 6041-Multi-Fuel heater. This heater meets the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2020. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 7,540 to 21,811 Btu/hr output. -
Page 3: Installation Checklist
Declaration of Completion: As the qualified person responsible for the work described above, I confirm that the appliance as associated work has been installed as per manufacturer’s instructions and following any applicable building and installation codes. Signed: ______________________________________ Print Name: __________________________________Date: ______________ Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE © 2023 United States Stove Company... -
Page 4: Installation
NFI (US) or WETT (Canada) technician. To find GROUNDED 110-VOLT POWER SOURCE. the nearest qualified installer, go to: https://nficertified.org, CAUTION: https://www.wettinc.ca/ BURNING FUEL CREATES CARBON MONOXIDE AND CAN BE HAZARDOUS TO YOUR HEALTH IF NOT PROPERLY VENTED. © 2023 United States Stove Company... -
Page 5: Floor Protection
Your stove is approved to be installed with an outside air intake (69FAK) which is necessary for a mobile home. You can purchase the 69FAK through your heater dealer. Installation instructions are supplied with the air intake kit. © 2023 United States Stove Company... -
Page 6: Importance Of Proper Draft
NOTE: These are guidelines only. Proper venting is B. Min. 1-ft clearance above any door or window that accomplished by design and necessary requirements. In opens. most installations 3 inch diameter venting is adequate. © 2023 United States Stove Company... -
Page 7: Design Guidelines For Outside Combustion Air Connection
For installations with horizontal through-the-wall exhaust, it is strongly recommended that the heater combustion air be connected to the outside. If the home is newer or has been tightly insulated, it is required to install outside combustion air. © 2023 United States Stove Company... - Page 8 3" PL Vent (12" Long) Outer Wall Thimble Inner Wall Thimble A MINIMUM OF 3 VERTICAL FEET OF PIPE OUTSIDE THE HOME IS REQUIRED! A MINIMUM OF 3 VERTICAL FEET OF PIPE OUTSIDE THE HOME IS REQUIRED! © 2023 United States Stove Company...
-
Page 9: Understanding The Control Board
See the list of error codes found at the end However, this speed can be manually operated by of this manual. © 2023 United States Stove Company... -
Page 10: Proper Fuel
Your multi-fuel stove is designed to burn premium variety of problems including lighting, consistent flame hardwood pellets that comply with the Pellet Fuels and heat, smoke, and more. Institute (PFI) standard (minimum of 40 lbs density © 2023 United States Stove Company... -
Page 11: Pre-Start-Up Check
Note: The room fan will not operate at this time, as a temperature of at least 110°F © 2023 United States Stove Company... -
Page 12: Opening Door
WHILE THE STOVE IS IN OPERATION. the fire pot. In this way, the possibility of smoke entering • WE RECOMMEND THAT YOU NOT LET THE the home is avoided. HOPPER DROP BELOW 1/4 FULL. © 2023 United States Stove Company... -
Page 13: Interior Chambers
Remove the fly ash from the burn sections apart. chamber and replace the clean-outs. © 2023 United States Stove Company... -
Page 14: Maintenance
CO. the top as well as from the bottom. The creosote should be removed with a brush specifically designed for the © 2023 United States Stove Company... -
Page 15: Spring Shutdown
Cleaned 5. Re-install the retainer and rope gasket using high- Hopper (end of Empty & temperature silicone to adhere the gasket to the door. season) Vacuumed 6. Never use substitute materials for the glass. © 2023 United States Stove Company... -
Page 16: Control Board Functions
Shutdown result of operating at the highest then restart. heat setting for long periods of time, room fan failure or loose wire connection. © 2023 United States Stove Company... - Page 17 Room fan motor jammed or bad. Err8 The Room Fan output fuse has blown. Err9 Zero Crossing Input failed AC supply frequency out of range. Err10 The Igniter output fuse has blown Igniter output has shorted/blown or igniter overload. © 2023 United States Stove Company...
-
Page 18: Display Indicators
Part numbers and descriptions can be found in the “Repair Parts” section of this manual. Once this information has been gathered you can contact customer service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com. Model Information Model Number Serial Number © 2023 United States Stove Company... -
Page 19: Troubleshooting Guide
Viewing glass becomes black shortly Adjust the air damper to a more open position. after start-up. Use a fuel with less moisture content. PROBLEM Cause: Not enough combustion air or fuel has too much moisture. © 2023 United States Stove Company... -
Page 20: Wiring Diagram
HOSE DRAFT FAN ROOM FAN LIMIT AGITATOR AUGER MOTOR MOTOR WHITE BLACK HIGH LIMIT Ensure the wires are connected to the bottom two prongs of the hopper switch as shown. CORRECT WRONG WIRING SCHEMATIC © 2023 United States Stove Company... -
Page 21: Repair Parts
Call 1-800-750-2723 Ext 5051 or Email to: parts@usstove.com IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING USSC PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM USSC. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. © 2023 United States Stove Company... - Page 22 Call 1-800-750-2723 Ext 5051 or Email to: parts@usstove.com IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING USSC PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM USSC. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. © 2023 United States Stove Company...
-
Page 23: Service Record
Engineer Name: ____________________________________ Engineer Name: ____________________________________ License No.: ________________________________________ License No.: ________________________________________ Company: __________________________________________ Company: __________________________________________ Telephone No.: _____________________________________ Telephone No.: _____________________________________ Stove Inspected: Chimney Swept: Stove Inspected: Chimney Swept: Items Replaced: ____________________________________ Items Replaced: ____________________________________ © 2023 United States Stove Company... - Page 24 NOTES © 2023 United States Stove Company...
