equipped with the battery will be the Pilot's helmet, and it will also be the one fitted with the e-box.

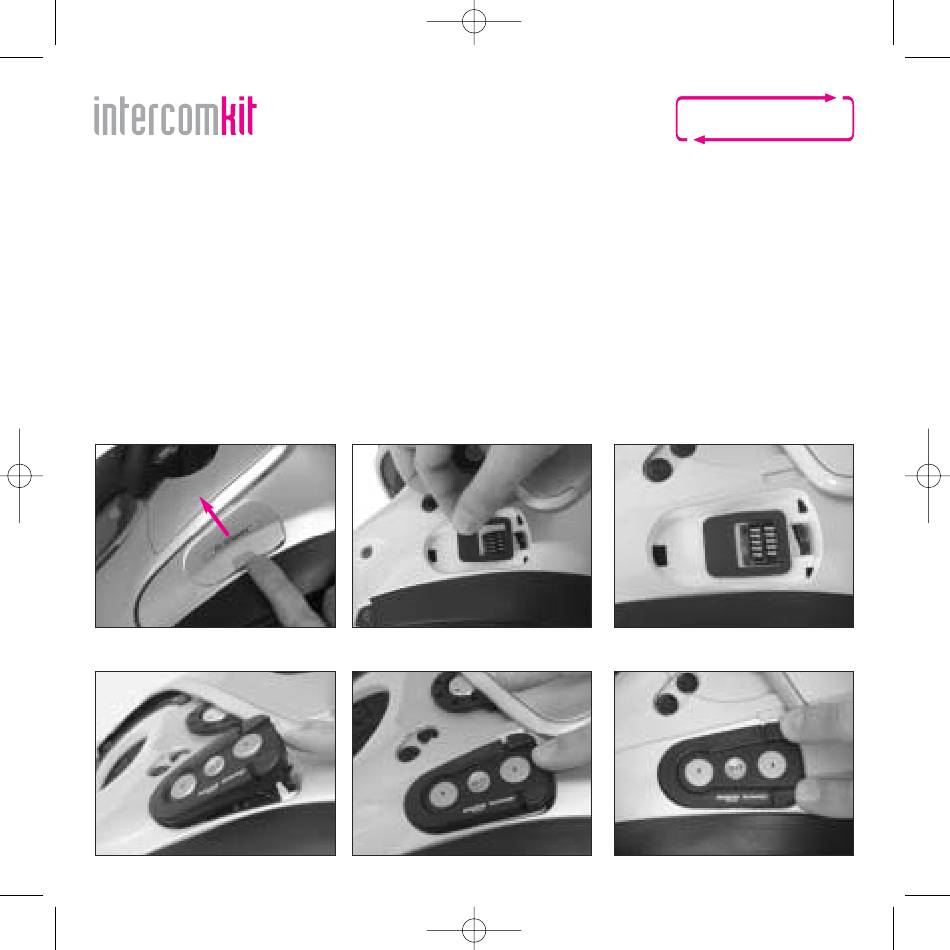

- After positioning the Basic Kit inside the helmet, apply the adhesive sealing trim around the 10-way connector as follows:
• Remove the N-Com protection cover from the helmet (fig. 2)
• Remove the protective film from the gasket
• Apply the sealing trim around the 10-way connector as shown in figure 3 and 4
- Insert the e-box in its compartment (fig. 5). First insert the front part, then press down on the e-box until both fasteners
click (fig. 6). To remove the e-box, operate at the same time on both sliding hooks until the e-box is ejected (fig. 7).
Warning: Do not leave the helmet exposed to atmospheric agents without the e-box or the protection cover supplied with
the helmet.
