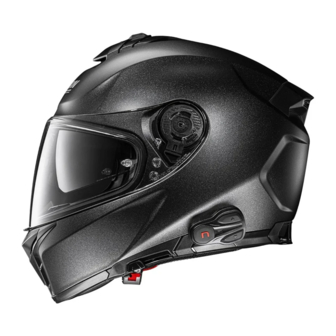

- Page 2 USER INSTRUCTIONS AND SAFETY Thank you for buying an N-Com product. N-Com B602 was made using the most advanced technology and top-quality materials. Long-running tests and thorough system development have made it possible to achieve the highest audio quality. Please read the user instructions before using the product. For further information on the B602 and video tutorials and information on installing the latest Firmware version, please visit www.n-com.it The Bluetooth®...
-
Page 3: Table Of Contents
Contents WARNINGS AND SAFETY ..........................4 1.1.Road safety ......................................4 1.2.Switching on the system in safe environments ........................4 1.3.Interferences ......................................4 1.4.Appropriate use ....................................4 1.5.Qualified personnel ................................... 5 1.6.Accessories and batteries ................................5 1.7.Disposal........................................5 CONTENT OF THE PACKAGING ........................6 INSTALLATION ON THE X-1005, X-903, X-552 HELMET................ -
Page 4: Warnings And Safety
WARNINGS AND SAFETY Product compliant with EU Directive 2014/53/EU (RED). Complete compliance statement downloadable at www.n-com.it Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these rules may lead to dangerous situations. Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and the like. -
Page 5: Qualified Personnel
Caution: Adjust the volume of the N-Com system and of the audio sources connected to it before you use the system on the road. Caution: Adjusting the volume to exceedingly high levels may cause damage to your hearing. Caution: Incorrect installation of the system in the helmet may alter the aerodynamic and safety characteristics of the helmet itself, thus creating dangerous conditions. -
Page 6: Content Of The Packaging
CONTENT OF THE PACKAGING The N-Com B602 package contains: e-box with wiring Adesive Keypad Microphone Microphone for helmet X-903 Rechargeable battery USB-C wire Adhesive strips for loudspeakers Flat head tool Microphone foam... -
Page 7: Installation On The X-1005, X-903, X-552 Helmet
INSTALLATION ON THE X-1005, X-903, X-552 HELMET Important: Prior to installing the N-Com system, it is recommended to write down the identification code affixed to the product (see chapter 19.4). The installation video can be seen at www.n-com.it / Support section. 3.1. - Page 8 N.B.: In the event that the keypad is not positioned correctly, peel it off right away with extreme care and repeat the positioning. N.B.: It takes up to 24 hours for the keypad to stick completely. During this time, do not expose the helmet to atmospheric agents.
-
Page 9: Microphone Positioning
3.3. Microphone positioning ONLY FOR X-1005 HELMETS • With the help of the flat head tool supplied as standard equipment, open the microphone-holder clip located on the right side of the helmet (Fig. 12-13). • Position the microphone at the desired length, sliding the excess portion inside the cheek pad lining (Fig. -
Page 10: Repositioning The Padding
• Pass charging cable through elastic band found on the comfort padding (Fig. 18). • Position the wiring in the rear part of the helmet (Fig. 19). Fig. 18 Fig. 19 • On the right side of the helmet, bend the cheek pad lining and insert the battery in its housing (Fig. -
Page 11: Installation On The X-Lite Helmets
INSTALLATION ON THE X-LITE HELMETS This procedure must be followed for the installation of N-Com systems on X-lite helmets other than model X-1005, X-903, X-552. Important: Prior to installing the N-Com system, it is recommended to write down the identification code affixed to the product (see chapter 19.4). - Page 12 N.B.: In the event that the keypad is not positioned correctly, peel it off right away with extreme care and repeat the positioning. N.B.: It takes up to 24 hours for the keypad to stick completely. During this time, do not expose the helmet to atmospheric agents.
-
Page 13: Microphone Positioning
• Arrange the battery connector behind the polystyrene cheek pad. • Position the wiring in the rear part of the helmet (Fig. 34). Fig. 34 4.3. Microphone positioning FLIP UP OR JET HELMETS NB: The parts required for positioning the microphone (microphone clamp and screw) can be found inside the helmet on the left side of the internal shell. -
Page 14: Repositioning The Padding
Fig. 39 Fig. 38 4.4. Repositioning the padding • Pass the USB-C wire through the elastic band found on the comfort padding. • Replace the internal comfort padding by following the specific instructions found in the helmet user manual. Warning: Always verify the proper length of your chinstrap and adjust it if necessary, referring to the specific helmet instructions. -
Page 15: Basic Functions
BASIC FUNCTIONS Note: Before using the N-Com device for the first time, recharge the battery completely for at least 10 hours. To obtain best performances from the battery, it is recommended to completely recharge the battery the first few times. Afterwards, you can recharge the battery for shorter periods. Whenever possible, it is best to recharge the battery completely. -
Page 16: Auto Off Function
6.3. Auto Off function The Auto Off function automatically shuts down the N-Com system after five minutes without an active Bluetooth connection (telephone, GPS, motorbike audio system etc) or communication via intercom. The “Auto Off” function is enabled by default on the device. You can enable / disable the function from the Configuration Menu (Chapter 6). -
Page 17: N-Com Easyset
6.5. N-Com EASYSET “N-Com EASYSET” is the application that can be used to manage and configure the B602 system. The program can be downloaded from the Internet site www.n-com.it, in the “Support/Download” section. The functions that can also be managed from the N-Com EASYSET are listed here below with the specific icon. -
Page 18: Pairing Mode
PAIRING MODE All the Bluetooth pairing operations are carried out in this mode. In order to access the Pairing function, starting with the N-Com system switched off, press and hold the “n” key for 4 seconds, until the red LED light appears. 7.1. -
Page 19: Configuration Menu
CONFIGURATION MENU “Configuration Menu” is available only in Complete Mode. All the settings of the N-Com system are managed in this mode. To access the Configuration Menu starting with the N-Com switched on, press and hold the “” and “” keys simultaneously for 4 seconds, until the red LED light appears. Once in the “Configuration”... -
Page 20: Mobile Phone / Mp3 Player Pairing
MOBILE PHONE / MP3 PLAYER PAIRING Make sure the B602 is turned off. • Put the system in “Pairing” mode: press and hold the “n” key for 4 seconds, until the red LED light • appears. In Complete Mode Phone pairing : press the “”... -
Page 21: Mobile Phone
11. MOBILE PHONE To pair a mobile phone to the B602 system, follow the procedure illustrated in Chapter 7. Answering a phone call Briefly press any key when you hear the incoming call signal. Vocal answer (VOX phone) When you hear the ringtone, say any word out loud. phone “... -
Page 22: Conference Call Function
If you wish to exit the “Speed Dial” menu, press and hold the “” and “” keys until you hear the Cancelled command “ ”, then press “n” to confirm. N.B.: If no key is pressed within 15 seconds, the system exits the “Speed Dial” menu. 11.2. -
Page 23: Music Via Bluetooth
12. MUSIC VIA BLUETOOTH To pair a mobile phone or an Mp3 device to the B602 system, follow the procedure illustrated in Chapter 7. Play music (Play) Press and hold the “” key for about 2 seconds. When the player is connected and playing music, press and Pause function (Pause) hold the “”... -
Page 24: Intercom Rider-Passenger
N.B.: The pairing is stored by both the helmet and the navigator hence it is not lost when they are switched off. This means that this procedure needs to be carried out only once. Once the Bluetooth device has been paired, connection is automatic when the system is turned on. NB: if the B602 system’s memory has already stored a navigator, the new pairing will overwrite the previously paired navigator. -
Page 25: Intercom Function
After a few seconds the systems recognize each other and intercom communication is • established. 14.3. Intercom function To activate the intercom connection, turn on the two N-Com systems and briefly press the “n” key on one of the two systems. Intercom connection Briefly press “n”. -
Page 26: Remote Control
From intercom B To enable the intercom connection, press the “Voice Call” or “Last number redial” command. To disable the intercom connection, press the “Hang up” or “Reject phone call” command. N.B.: Some systems are not able to handle the activation / deactivation of the intercom connection. In this case, operate from the B602 system. -
Page 27: Battery And Recharge
17. BATTERY AND RECHARGE 17.1. Low battery signal During its operation, the system alerts the user with a voice message when the battery is low. From the first message, the system has a 1-hour autonomy. Warning is given every 10 minute. 17.2. -
Page 28: Summary Table Of Controls
18. SUMMARY TABLE OF CONTROLS Complete Mode Turn On 2 sec Turn Off 4 sec Increase Volume Reduce Volume Pairing Menu 4 sec (with system switched off) Configuration Menu 4 sec (with system switched on) Complete/Simple Mode** 5 sec 5 sec (with system switched off) - Page 29 Simple Mode Turn On 2 sec Turn Off 4 sec Increase Volume Decrease Volume Pairing Menu 4 sec (with system switched off) Complete/Simple Mode ** 5 sec 5 sec (with system switched off) Reset** 5 sec 5 sec (with system switched on) Cancel pairing**...
-
Page 30: Warranty
19. WARRANTY With this WARRANTY CERTIFICATE, Nolangroup warrants to the purchaser that the product, at the time of purchase, is free from defects in materials and workmanship. We kindly ask you to: • Read the warnings for safety and proper use. •... -
Page 31: Product Identification
PRIOR TO CONTACTING THE DEALER, WE RECOMMEND THAT YOU CAREFULLY READ THE INSTRUCTIONS FOR USE ENCLOSED WITH THE PRODUCT. THE WARRANTY IS EFFECTIVE EXCLUSIVELY FROM THE DATE OF PURCHASE UNTIL THE PERIOD INDICATED FOR THE COUNTRY WHERE THE PRODUCT WAS PURCHASED - see list available on the website (Support/ Instructions manuals). - Page 32 www.n-com.it...
