Sunny SF-A022070 User Manual

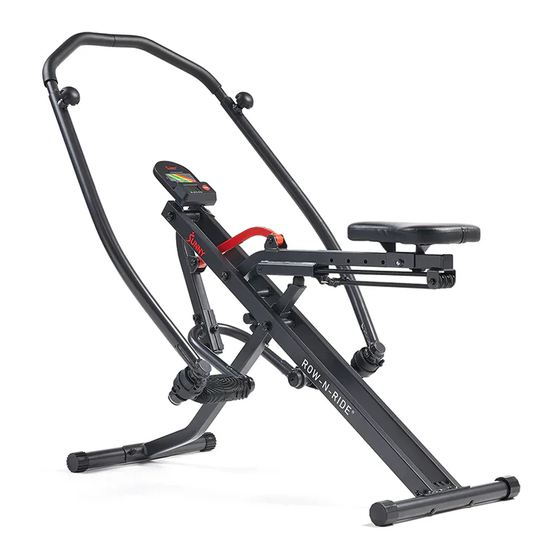

Full body adjustable multifunction smart row-n-ride trainer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FULL BODY ADJUSTABLE
®
MULTIFUNCTION SMART ROW-N-RIDE
TRAINER
SF-A022070

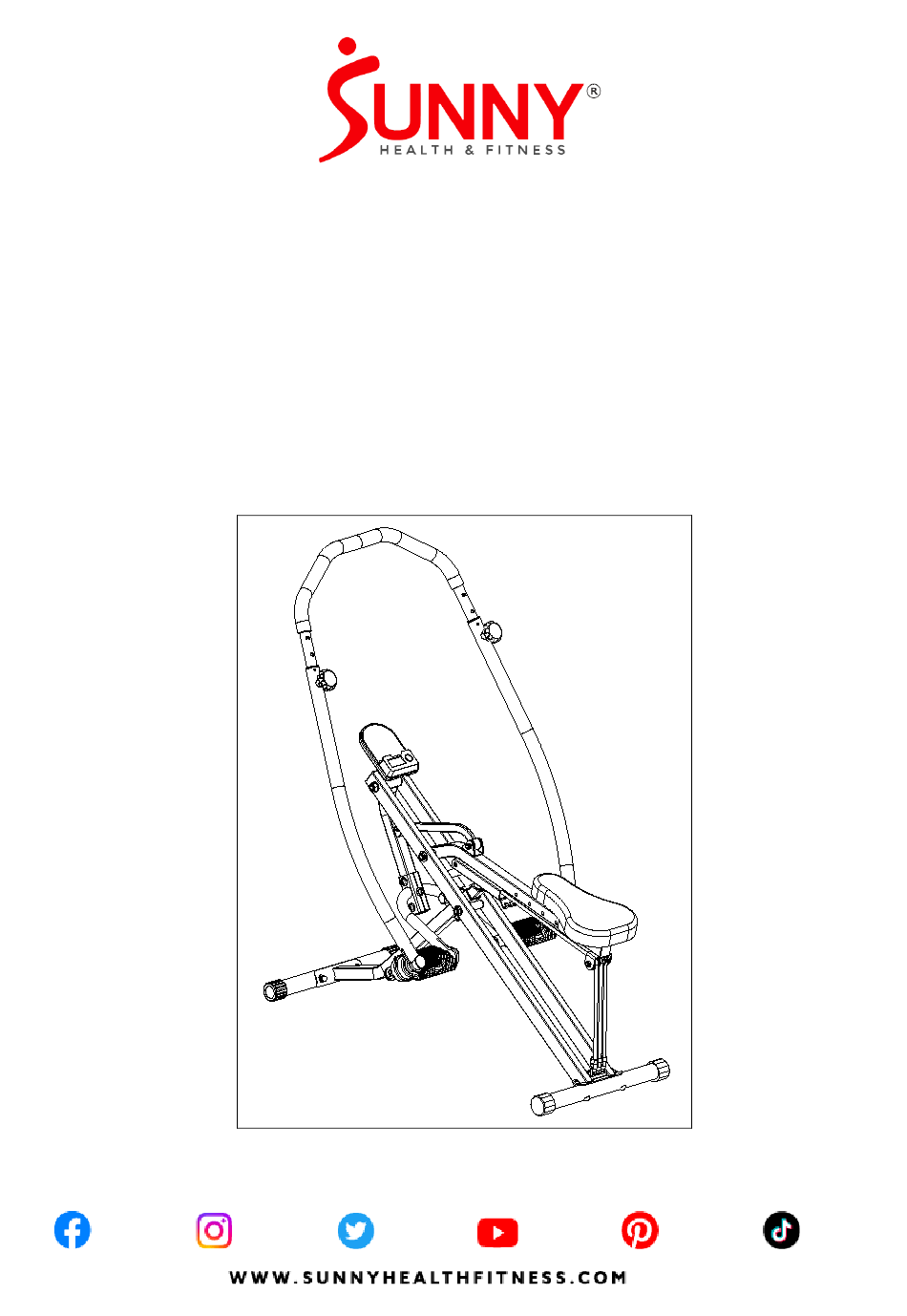

USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
