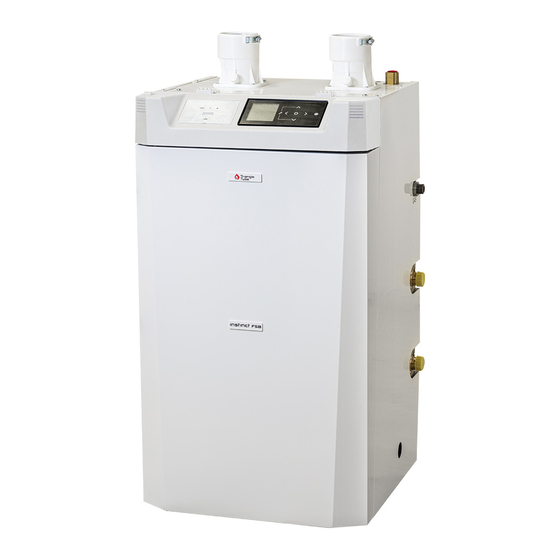

Instinct FSB (Floor Standing Boiler)
HMI (Human Machine Interface) Removal
Kit Part Number
INSRKIT128
Each Kit Includes:
•
Display Module with cover
Recommended Tools:
•
Pozidriv Screwdriver
•
Flat Head Screwdriver
WARNING
!
Indicates a potentially hazardous situation
which, if ignored, can result in serious injury or
substantial property damage.
WARNING
!
For your safety, turn off electrical power supply
at service panel and allow unit to cool before pro-
ceeding to avoid possible electrical shock and
scald hazard. Failure to do so can cause severe
personal injury or death.
UIN 232788 A01
2021-51 Instinct FSB HMI Replacement
Revision Date: 02/2022
Description
HMI Replacement
NOTICE
Indicates special instructions on installation, operation
or maintenance, which are important to equipment
but not related to personal injury hazards.
WARNING
!
Failure to follow instructions below can result in
severe personal injury or damage if ignored.
•
Instructions are for a qualified installer/
service technician only.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
Model
Instinct Floor Standing
Models
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TriangleTube Instinct FSB
Summary of Contents for TriangleTube Instinct FSB
- Page 1 Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal Kit Part Number Description Model Instinct Floor Standing INSRKIT128 HMI Replacement Models Each Kit Includes: • Display Module with cover Recommended Tools: • Pozidriv Screwdriver • Flat Head Screwdriver NOTICE...
-
Page 2: Preliminary Instructions
Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal 1. Preliminary Instructions the OK button to enter the access code. 1. Verify that the replacement kit is correct for the ENTER INSTALLER model of boiler. ACCESS CODE 2. Carefully open and unpack the PARTS BOX from its [0]XX shipping carton. - Page 3 Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal 12. Press the RIGHT then DOWN buttons to highlight 6. Record all CH Settings in Table 1. Once completed, press the RIGHT button to highlight the Previous the Cascade icon, then press the OK button.
- Page 4 Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal 3. Locate and undo the 2 M6 access screws. 4. Rotate the HMI Pod down. 1. Locate and undo the 2 M6 access screws 5. Remove the 4 M5 Pozidriv screws from the hinges.
- Page 5 Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal 5. Fitting Wi-Fi Module on replacement HMI. WARNING 1. Connect to wire harness to the new HMI as shown Be careful when using the flat blade screwdriver. Do not in Figure 13.
-
Page 6: Boiler Settings
Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal 7. Programming new Display Board 3. The required code is written on the data plate located at the side of the boiler. Use the code for 1. Follow the instructions in step 2 to gain access to the gas type, either Natural Gas or Propane. -
Page 7: Maximum Setting
Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal Table 1: Controls Settings HEATING SETTING FACTORY DEFAULT MINIMUM SETTING MAXIMUM SETTING EXISTING SETTING Heating Operation Enabled Demand Type Thermostat & Outd. Curve Absolute Max CH Setpoint 185°F [85°C] 68°F [20°C] 188°F [87°C] CH1 Maximum Setpoint 180°F [82°C]... - Page 8 Instinct FSB (Floor Standing Boiler) HMI (Human Machine Interface) Removal Table 1 Cont: BOILER SETTING FACTORY DEFAULT MINIMUM SETTING MAXIMUM SETTING EXISTING SETTING Lockout Temp. 210°F [99°C] Modbus Address 0=BCST 0=BCST Flex. Relay 1(CH) Flex. Relay 2(DHW) Flex. Relay 3(P3) CH1/CH2/DHW Flex. Relay 4(ERR) ERROR Flex.
