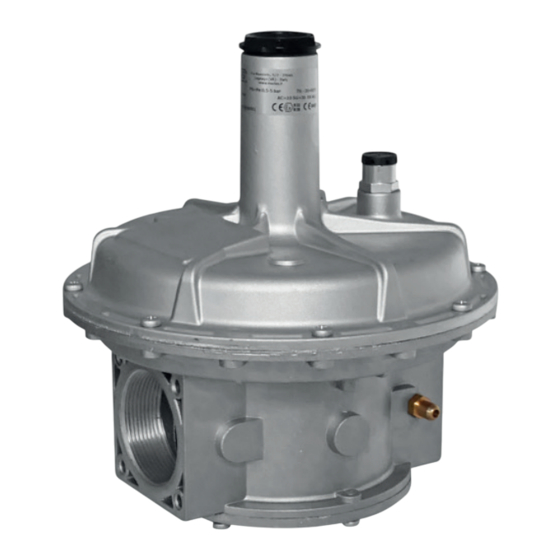

RG/2MCS
Range pressione di esercizio
Operating pressure range
Plage de pression de fonctionnement
Rango de la presión de funcionamiento
Attacchi filettati / Threaded connections
Raccords filetés / Conexiones roscadas
Attacchi flangiati/ Flanged connections
Raccords à brides / Conexiones embridadas
Norma di riferimento / Reference standard
Norme de référence / Patrón de referencia
In conformità a *
In conformity with *
Conforme a *
Conforme *

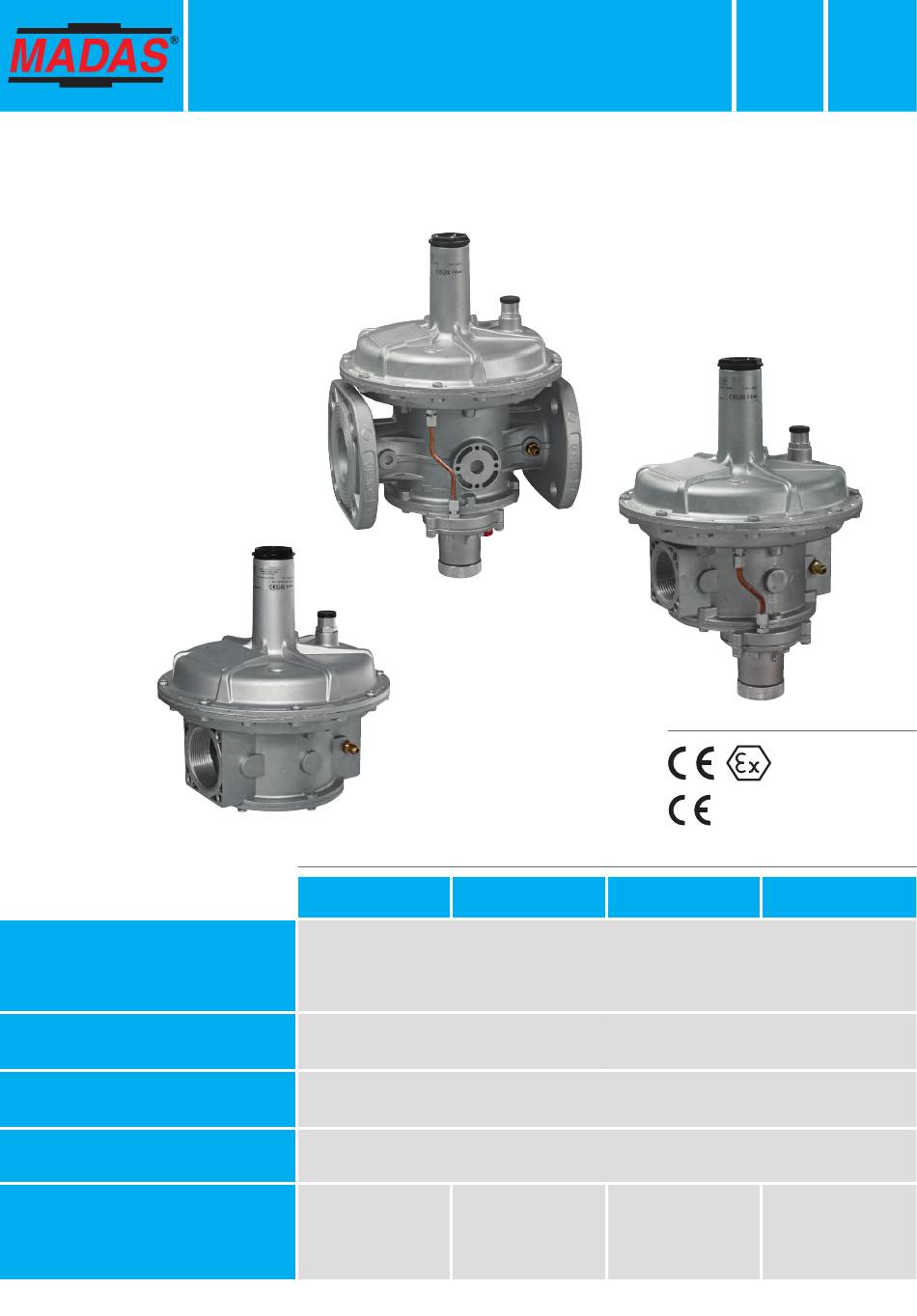

RG/2MCS - RG/2MBZ
REGOLATORE DI PRESSIONE PER GAS
GAS PRESSURE REGULATOR
REGULATEUR DE PRESSION POUR GAZ
REGULADOR DE PRESIÓN PARA GAS
I T
Direttiva PED
2014/68/UE
Madas Technical Manual - 5|5.2a - REV. 0 of 5
RG/2MBZ
E N
Pe: 0,5÷5 bar
DN 32 - DN 40 - DN 50
DN 32 - DN 40 - DN 50
EN 88-2
PED Directive
Directive PED
2014/68/EU
2014/68/UE
S
C
eCtion
5
5.2a
II 2G - II 2D
0497
MADE IN ITALY
F R
E S
Directiva PED
2014/68/UE
Apr 2019 - RG/2MCS - RG/2MBZ
