Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown below.
Cautions :
(1) Do not fully-tighten the nuts or bolts until all nuts and bolts are assembled.
(To avoid causing damages to the thread, do not over-tighten the nuts or bolts.)
(2) Keep all hardware part out of reach of children.

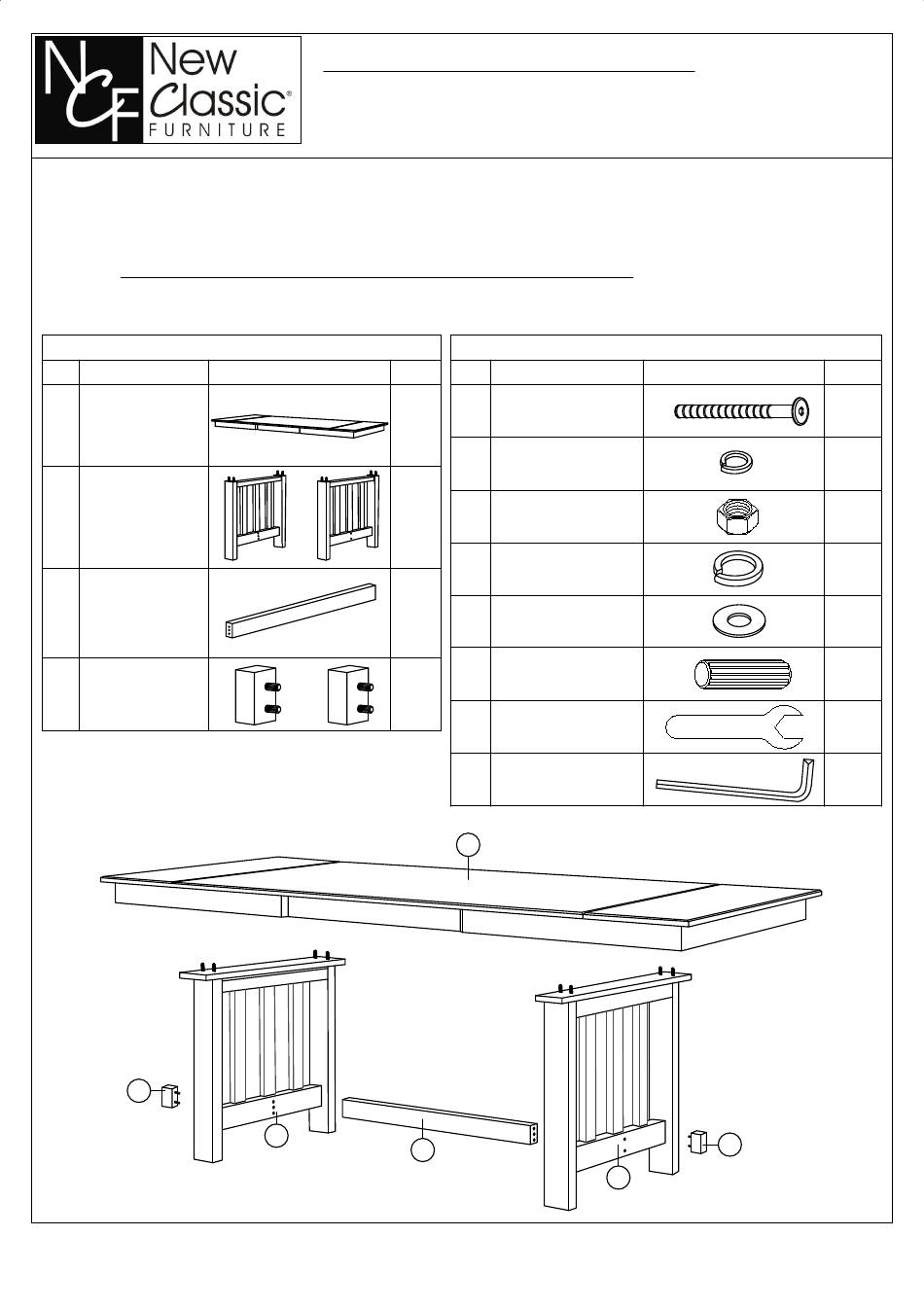

PARTS LIST
NO
DESCRIPTION
A
TABLE TOP
B
TABLE LEG
C
RAIL
D
DECORATIVE
WOOD
D
ASSEMBLY INSTRUCTIONS

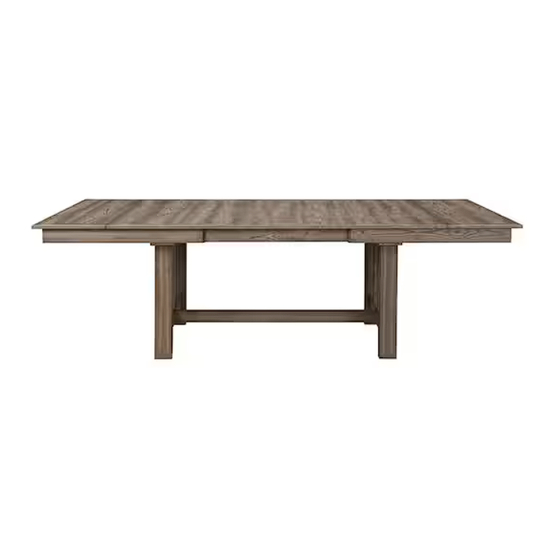

Harrisburg Dining Table
D3412-10T HARRISBURG DINING TABLE TOP
D3412-10B HARRISBURG DINING TABLE BASE
SKETCH
QTY
1 PC
2 PCS
1 PC
2 PCS
B
C
HARDWARE LIST
NO
DESCRIPTION
BOLT
1
1/4" x 2''
SPRING WASHER
2
1/4"
HEX NUT
3
5/16"
SPRING WASHER
4
5/16"
FLAT WASHER
5
5/16"
WOOD DOWEL
6
7/16'' X 1 3/16"
7
WRENCH
8
ALLEN KEY
A
B
SKETCH
QTY
4 PCS
4 PCS
8 PCS
8 PCS
8 PCS
2 PCS
12.8
1 PC
1 PC
D
Page 1 of 6
Created Date : 24/04/2024
Advertisement
Related Manuals for New Classic Furniture Harrisburg D3412-10T
Summary of Contents for New Classic Furniture Harrisburg D3412-10T
- Page 1 ASSEMBLY INSTRUCTIONS Harrisburg Dining Table D3412-10T HARRISBURG DINING TABLE TOP D3412-10B HARRISBURG DINING TABLE BASE Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the parts list and/or hardware list shown below.
-
Page 2: Remove Cover
STEP 1 : Place the table top (A) upside down on a flat and clean surface. Remove all polyfoam & rail (C). REMOVE POLYFOAM REMOVE POLYFOAM REMOVE RAIL STEP 2 : Remove all polyfoam and then remove all the bolt covers on table legs (B). REMOVE COVER REMOVE POLYFOAM Page 2 of 6... - Page 3 STEP 3 : Insert the Wood Dowel (6) into the center hole on each end of the Rail (C) by using a wood mallet. STEP 4 : Place the table legs (B) and the rail (C) into position first but do not assemble. * 3 HOLES SIDE FACES INWARD * 2 HOLES SIDE FACES OUTWARD Page 3 of 6...
- Page 4 STEP 5 : Assemble the Table Legs (B) to the Table Top (A) by using the Wrench (7) and the hardware Nut (3), Spring Washer (4) & Flat Washer (5). STEP 6 : Assemble the Rail (C) to the Table Legs (B) by using the Allen Key (8) and the hardware Bolt 1/4"...
- Page 5 STEP 7 : Install the decorative wood (D) to conceal the screw holes on the table legs (B). Remove and discard the wood blocks with screwdriver to operate the table leaves. STEP 8 : Page 5 of 6 Created Date : 24/04/2024...
-
Page 6: Completed Assembly
STEP 9 : To operate & store leaf extension table as shown. To Store To Operate COMPLETED ASSEMBLY. Page 6 of 6 Created Date : 24/04/2024...
