Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly,and follow the assembly steps to assemble
your newly purchased product correctly and efficently.
PARTS LIST
NO.
COMPONENT
A
CUSHION SEAT
LEG
B
SHORT SIDE
C
STRETCHER
LONG SIDE
D
STRETCHER
E
LEG (Right)
F
LEG (Left)
Assembly Instructions
SKETCH
QTY.
2 PCS
2 PCS
4 PCS
2 PCS
2 PCS
2 PCS
MADE IN VIETNAM
ITEM NO. D324-3P

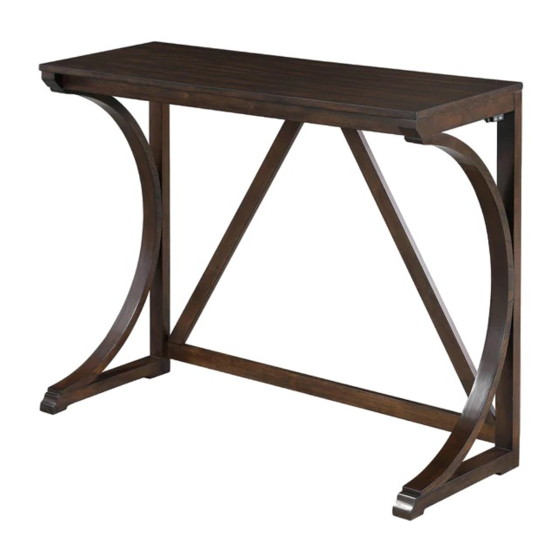

BELLA COUNTER SOFA TABLE WITH
2 STOOLS & USB PORT
HARDWARE LIST
NO.
COMPONENT
FLAT WASHER
1
1/4" DIA.
SPRING
WASHER
2
1/4" DIA.
BOLT
3
1/4" x 2 1/4"
WOOD SCREW
4
#8 x 1 1/2" L
ALLEN KEY
5
M4
SKETCH
QTY.
16 PCS
16 PCS
16 PCS
12 PCS
1 PC
PAGE: 1 OF 4
Advertisement
Table of Contents
Related Manuals for New Classic Furniture BELLA D324-3P
Summary of Contents for New Classic Furniture BELLA D324-3P
- Page 1 Assembly Instructions ITEM NO. D324-3P BELLA COUNTER SOFA TABLE WITH 2 STOOLS & USB PORT Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions ITEM NO. D324-3P BELLA COUNTER SOFA TABLE WITH 2 STOOLS & USB PORT STEP 1 STEP 2 STEP 3 E (Right) F (Left) MADE IN VIETNAM PAGE: 2 OF 4...
- Page 3 Assembly Instructions ITEM NO. D324-3P BELLA COUNTER SOFA TABLE WITH 2 STOOLS & USB PORT PARTS LIST HARDWARE LIST COMPONENT SKETCH QTY. COMPONENT SKETCH QTY. FLAT WASHER TABLE TOP 1 PC 6 PCS 5/16” DIA. SPRING WASHER LEG (Left) 1 PC 6 PCS 5/16”...
- Page 4 Assembly Instructions ITEM NO. D 324-3P BELLA COUNTER SOFA TABLE WITH 2 STOOLS & USB PORT STEP 1 STEP 2 Attach Left Leg(B), Right Leg (C) to Table Top (A) Attach Table Stretcher (E) to Left Leg (B), make by using Flat Washer (1), Spring Washer (2) and sure the wooden dowel is completely pushed Bolt (3).
