Plug-In Led And Valet Program Switch; Internal Programming Jumper; Light Flash - Directed 3100 Installation Manual

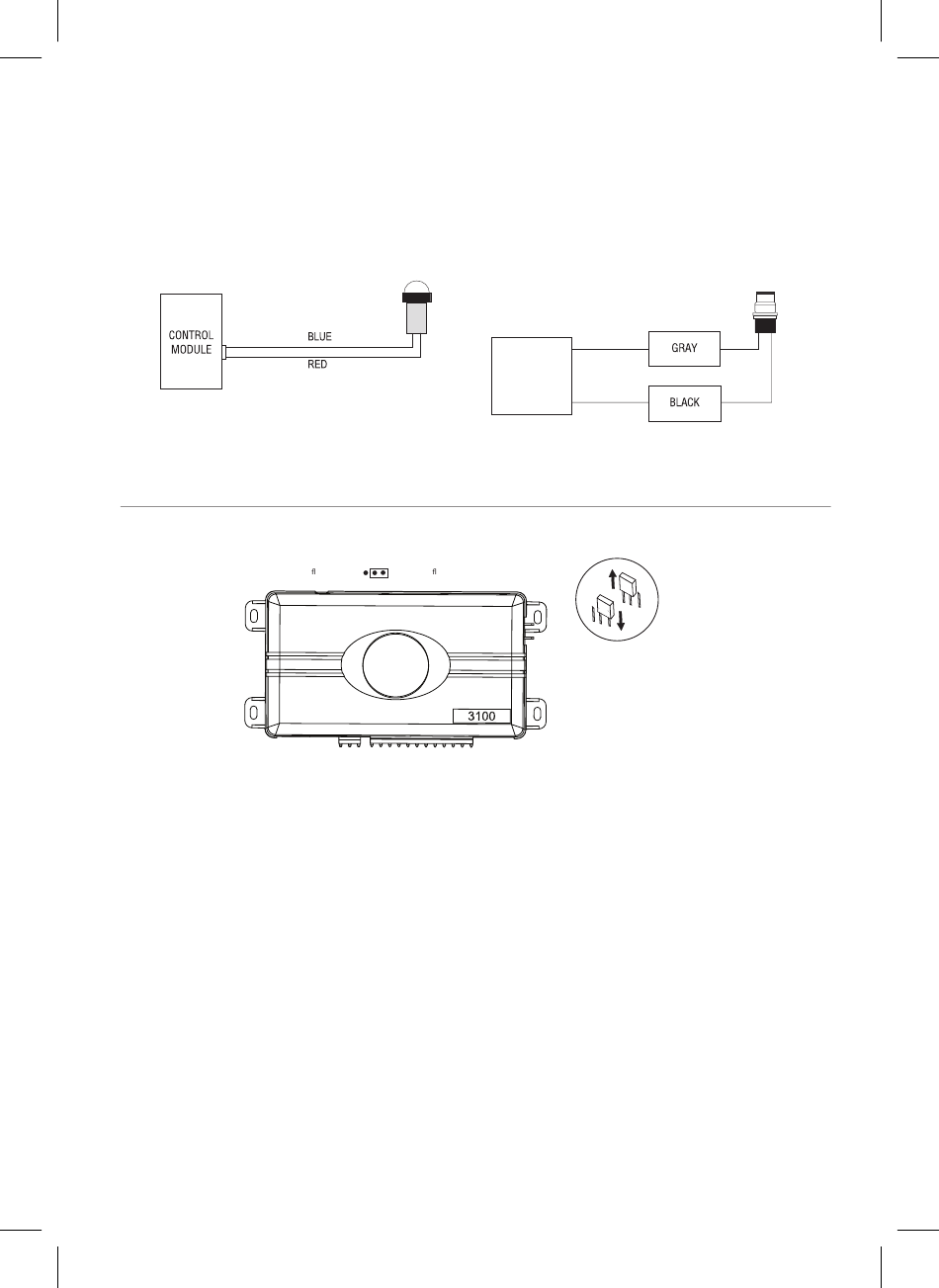

Plug-in LED and Valet Program switch

These plug into the control module. The status LED plugs into the white 2-pin
socket, while the valet program switch plugs into the blue 2-pin connector. The
status LED and valet switch each fit into a 9/32 inch hole.
White 2-pin port

Internal Programming Jumper

(-) Light ash output
Important: The module must be unscrewed to access the light flash jumper.

Light Flash

This jumper is used to determine the light flash output. In the (+) position, the
on-board relay is enabled and the unit will output (+)12V on the H1/2 WHITE
wire. In the (-) position, the on-board relay is disabled. The H1/2 WHITE wire
will supply a (-) 200 mA output suitable for driving factory parking light relays.
To access the jumper, open the control module.
Important:
For parking light circuits that draw 10 amps or more, the internal
jumper must be switched to a (-) light flash output.
tomotive SPDT relay must be used on the H1/2 light flash output harness wire.
6
LED
Blue 2-pin port
Control
Module
(+) Light ash output (default)
To change settings, module must be
unscrewed to access jumper.
P/N 8617
© 2012 Directed. All rights reserved.
Valet Program
button
or a standard au-
