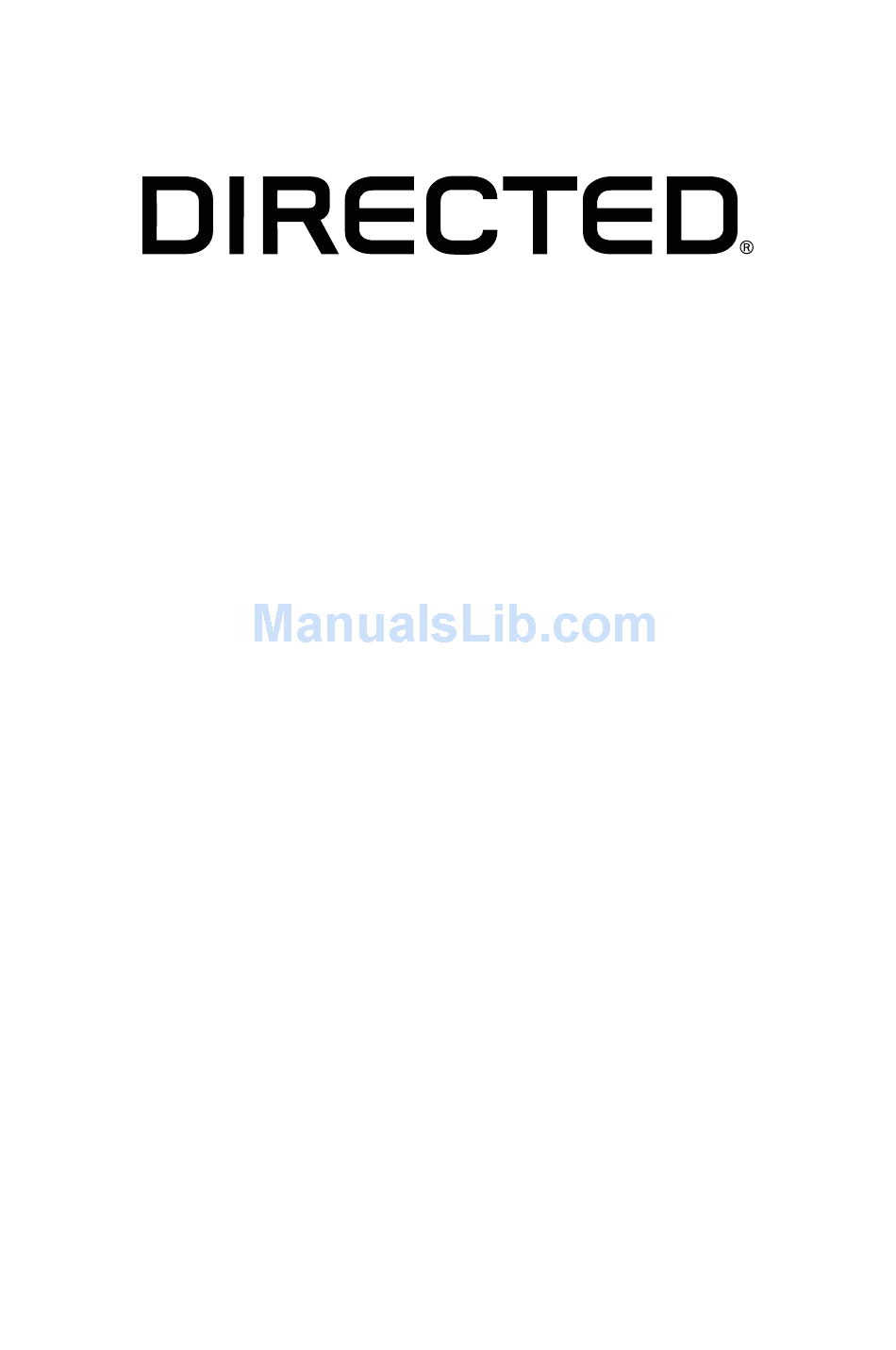

  • Page 1 Models 5105V, 5105P 5105X, 5105A 5105L Owner's Guide...

  • Page 3: Congratulations

    For more information please visit us online (see back cover for URL). For any additional questions please contact your authorized Directed dealer or Directed at 1-800-753-0600. Additional support is also available at: http://support.directed.com Note: The system you have purchased is either a security or keyless entry system.

  • Page 4: Important Information

    If your vehicle is equipped with a manual transmis- sion cease use of this product and immediately return the vehicle to an authorized Directed dealer. Your warranty Your system comes with a warranty. The warranty terms are detailed at the end of this guide.

  • Page 5: Table Of Contents

    Contents Congratulations ....................i What’s included ....................i Important information ..................ii Your warranty................... ii Replacement Remote controls ..............ii 1-way Remote Control ..................3 Control Center ..................3 Basic Commands ....................4 Arm/Lock ....................4 Panic .......................4 Disarm/Unlock ..................4 Silent Mode .....................4 For optional function (trunk release) .............4 Remote Start .....................5 Advanced Commands ..................6 Additional Auxiliary Functions.
  • Page 6 System Maintenance..................25 Battery replacement ................25 Battery Disposal ..................25 Glossary of Terms....................26 Patent Information ...................27 Government Regulations ..................28 Warning! Safety First ..................29 Limited lifetime consumer warranty ..............32...

  • Page 7: 1-Way Remote Control

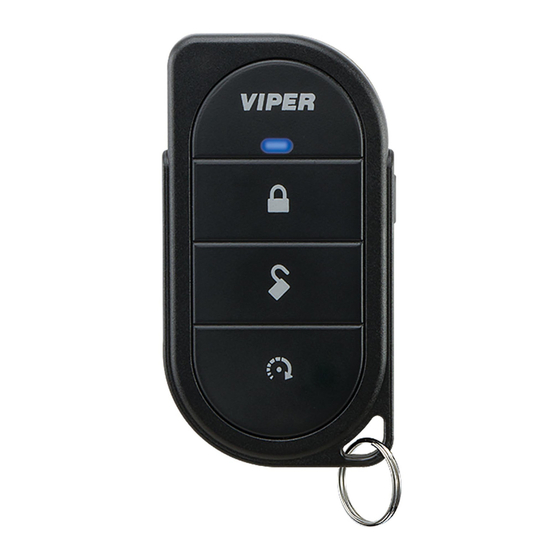

    The control center LED: a visual indicator of the system’s status. • The control center button: for placing the system into Valet Mode* and to perform the Emergency Override* operation. "Remote and System operations" on page 9 * See for details. © 2015 Directed. All rights reserved.

  • Page 8: Basic Commands

    Silent Mode™. For optional function (trunk release) Press and hold Activates the auxiliary output, such as trunk release or an expan- sion function that you have added to your system. The auxiliary output controls: © 2015 Directed. All rights reserved.

  • Page 9: Remote Start

    On. Note: The factory setting is one press, but this can also be programmed for two presses (See your authorized Directed installer for the amount of presses programmed). Record the mount of presses to activate remote start here: "Remote and System operations"...

  • Page 10: Advanced Commands

    However, if the thresh- old isn't met or exceeded, then the remote start does not activate, but © 2015 Directed. All rights reserved.
  • Page 11 The parking lights flash four times confirming timer mode is exiting. Note: The feature exits (if active) when the vehicle is driven, so if timer mode is desired, it needs to be activated again. © 2015 Directed. All rights reserved.

  • Page 12: Short-Run Turbo Mode

    Short-run turbo mode keeps the engine running for a programmable period of time after arriving at your destination (check with your autho- rized Directed dealer for available run times). This allows the system's timer to conveniently cool down the turbo after you have left the vehicle.

  • Page 13: Remote And System Operations

    Triggered Response (security only) A Triggered Response can be activated by any of the triggers listed below. The default Triggered Response duration is 30 seconds but can be programmed from 1-180 seconds by your installer. © 2015 Directed. All rights reserved.

  • Page 14: Multi-Level Security Arming (Security Only)

    Pressing again activates Multi-Level Security Arming. Each time is pressed consecutively, a different security level is se- lected, as described in the following table: © 2015 Directed. All rights reserved.

  • Page 15: Arming While Driving (Security Only)

    This prevents you from disabling the system should you want to disarm without visually checking the vehicle. Pressing the button again after resetting the system, will disarm the © 2015 Directed. All rights reserved.

  • Page 16: System (Emergency) Override

    Valet Mode. This is very useful when washing the ve hi cle or having it serviced. In Valet Mode, the system/starter kill will not arm/enable, even with the remote control, but all convenience func- © 2015 Directed. All rights reserved.

  • Page 17: Remote Start

    To remote start the vehicle: • Ensure the parking brake is set, press on the remote control once (or the amount of times the system has been programmed to © 2015 Directed. All rights reserved.
  • Page 18 • The brake pedal is pressed • The hood is opened • The shutdown toggle switch is put into the Off position • The parking brake is disengaged © 2015 Directed. All rights reserved.

  • Page 19: Pit Stop Mode

    (see the previous Remote Start sec- tion for a complete list of shutdown inputs). This feature will not work if the brake pedal is being pressed or the parking brake is disengaged. © 2015 Directed. All rights reserved.

  • Page 20: Nuisance Prevention Circuitry

    Nuisance Prevention Circuitry Your system has Directed’s Nuisance Prevention Circuitry® (NPC). It prevents annoying repetitive trigger sequences due to faulty door pin switch es or en vi ron men tal con di tions such as thunder, jack ham mers, or airport noise.

  • Page 21: Power Saver Mode

    Valet Mode, the LED will shut off. If the system remains in Valet Mode, the LED will come back on the next time the ignition is turned on and then back off. © 2015 Directed. All rights reserved.

  • Page 22: Diagnostics (Security Only)

    Circuitry has bypassed that zone (see "Nuisance prevention circuitry" on page 14 of this guide). The control center LED indicates which zone was involved (see "Table of Zones" on page 19). The system retains this information in its © 2015 Directed. All rights reserved.
  • Page 23 Your system stores the last two triggered zones in memory. If your system has been triggered but the LED has been reset by turning on the igni- tion, your dealer can still recall the last two zones that were triggered. Contact your authorized dealer for details. © 2015 Directed. All rights reserved.

  • Page 24: Owner Recognition

    Owner Recognition Owner Recognition is a feature avail able exclusively from Directed. Us- ing the Directed Bitwriter®, a hand-held programming tool, your dealer can program many of the system settings. The programmer makes it possible to program different settings for each remote control that is used with the system.

  • Page 25: Programming Options

    When programmed for passive arming and active lock, if the system is disarmed without a door being opened, the system will re-lock the doors when it passively rearms. © 2015 Directed. All rights reserved.
  • Page 26 RUN position and pressing the Control center button the programmed number of times. AED is disabled when the system is in Valet Mode. This feature only functions if the Failsafe® Starter Kill relay has been installed. © 2015 Directed. All rights reserved.
  • Page 27 If your installer is programming the security system with the Directed Bitwriter, the full triggered response can be programmed for any duration ranging from 1 to 180 seconds.

  • Page 28: Security & Convenience Expansions

    (An ad- ditional relay may be re quired.) If the factory release is not power ac ti- vat ed, then Directed’s 522T trunk release solenoid can often be added. Power Window Control: Automatic power window control is pro vid ed with the 529T and 535T systems.

  • Page 29: System Maintenance

    Note Verify that the battery polarity is correct when replacing. Battery Disposal Directed cares about the environment. If you need to dispose of the battery, please do so in accordance with your munici- pal requirements for battery disposal. © 2015 Directed. All rights reserved.

  • Page 30: Glossary Of Terms

    Siren Noise generating device usually installed in the engine com- part ment of the vehicle. It generates the “chirps” and the tones you hear when the alarm is triggered. © 2015 Directed. All rights reserved.

  • Page 31: Patent Information

    Remote Start Patents: 5,349,931; 5,872,519; 5,914,667; 5,952,933; 5,945,936; 5,990,786; 6,028,372; 6,467,448; 6,561,151; 7,191,053; 7,483,783 Vehicle Security Patents: 5,467,070; 5,532,670; 5,534,845; 5,563,576; 5,646,591; 5,650,774; 5,673,017; 5,712,638; 5,872,519; 5,914,667; 5,952,933; 5,945,936; 5,990,786; 6,028,505; 6,452,484 Other patents pending. © 2015 Directed. All rights reserved.

  • Page 32: Government Regulations

    Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. © 2015 Directed. All rights reserved.

  • Page 33: Warning! Safety First

    Installation Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. If you have any questions, ask your retailer or contact Directed directly at 1-800-753-0600. Remote Start Capable When properly installed, this system can start the vehicle via a command signal from the remote control transmitter.
  • Page 34 The user must also have the neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear. This testing should be performed by an authorized Directed dealer in accordance with the Safety Check outlined in the product installation guide.
  • Page 35 CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AU- THORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS. This product is designed for fuel injected vehicles only. Use of this product in a standard transmission vehicle must be in strict accordance with this guide.

  • Page 36: Limited Lifetime Consumer Warranty

    Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy of the bill of sale or other dated proof of purchase bearing the following information: consumer’s name, telephone number and address;...
  • Page 37 IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE...
  • Page 38 Auto Security Systems is Directed. The company behind these Since its inception, Directed has had one purpose, to provide consumers with the finest vehicle security and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology.
