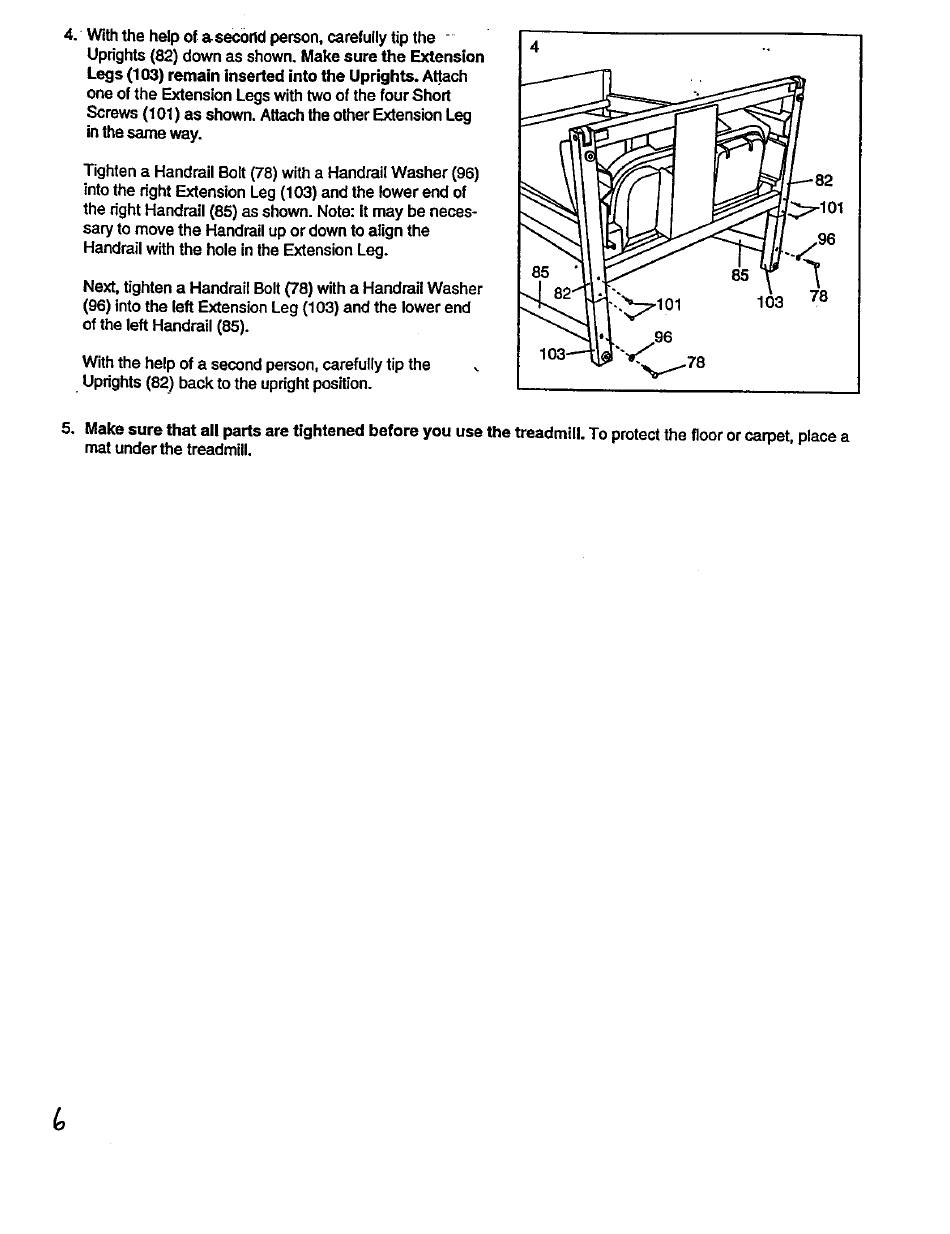

4: With the help of asecortd person, carefully tip the
Uprights (82) down as shown. Make sure the Extension
Legs (103) remain inserted into the Uprights. A_ach
one of the Extension Legs with two of the four Short
Screws (101) as shown. Attach the other Extension Leg
in the same way.
Tighten a Handrail Bolt (78) with a Handrail Washer (96)
into the right Extension Leg (103) and the lower end of
the right Handrail (85) as shown. Note: It may be neces-
sary to move the Handrail up or down to align the
Handrail with the hole in the Extension Leg.
Next, tighten a Handrail Bolt (78) with a Handrail Washer
(96) into the left Extension Leg (103) and the lower end
of the left Handrail (85).
With the help of a second person, carefully tip the
• Uprights (82) back to the upright position.
4
82
101
'°
--lO 3 78
.__'-_l'-L / 98
lO3--.--_'-_, 8
5. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet, place a
mat under the treadmill.
