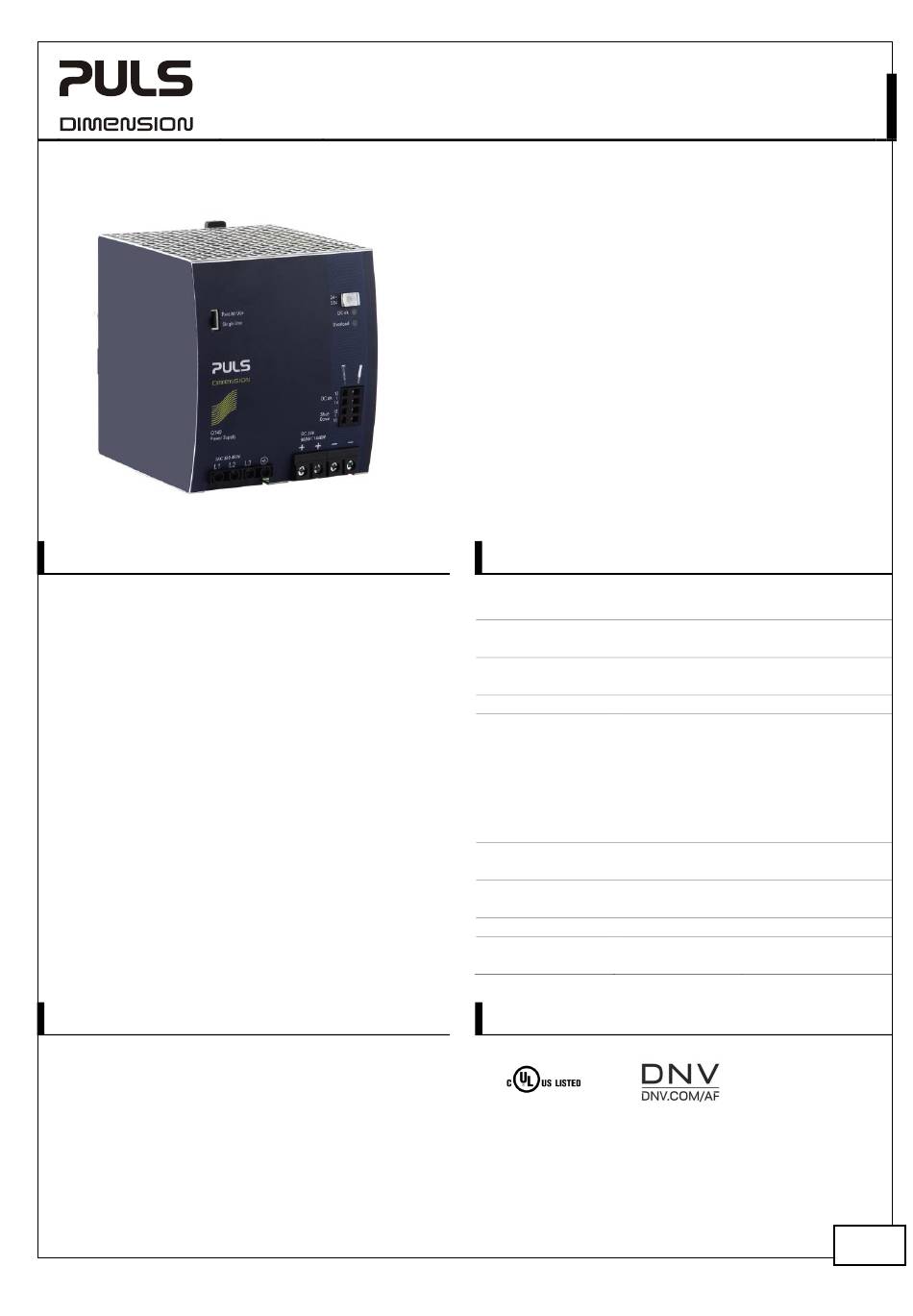

Puls DIMENSION Q Series Manual

Q-Series
P D
RODUCT ESCRIPTION
The most outstanding
Q- Series DIN rail power supplies are the extremely high
efficiencies and the small sizes, which are achieved by a
synchronous rectification and other technological designs.
Large power reserves of 150% support the starting of heavy
loads such as DC-motors or capacitive loads. In many cases this
allows the use of a unit from a lower wattage class which saves
space and money.
High immunity to transients and power surges as well as low
electromagnetic emission makes usage in nearly every
environment possible.
The integrated output power manager, the three input fuses
and near zero input inrush current make installation and usage
simple. Diagnostics are easy due to the DC-OK relay, a green DC-
OK LED and the red overload LED.
A large international approval package for a variety of
applications makes this unit suitable for nearly every
application.
O N
RDER UMBERS
Power Supply QT40.241
QT40.242
Accessory ZM2.WALL
UF20.241
YR80.241
Aug. 2024 / Rev. 3.1 DS-QT40.241-EN
All parameters are specified at 24V, 40A, 3x400Vac, +25°C ambient and after a 5 minutes run-in time unless otherwise noted.
features of the DIMENSION
24-28V Standard unit
24-28V Standard unit
extra long lifetime
Wall mount bracket
Buffer unit
Redundancy module
www.pulspower.com Phone +49 89 9278 0 Germany
QT40.241, QT40.242
P S
OWER UPPLY
▪
3AC 380-480V wide-range input
▪
Three input fuses included
▪
Version with extra long lifetime available
▪
Width only 110mm, weight only 1.5kg
▪
95.3% full load and excellent partial load efficiencies
▪
50% BonusPower, 1440W for up to 4s
▪
110A peak current for 10ms for easy fuse tripping
▪
Active PFC (power factor correction)
▪
Active filtering of input transients
▪
Negligible low input inrush current surge
▪
Full power between -25°C and +60°C
▪
Current sharing feature for parallel use
▪
Internal data logging for troubleshooting included
▪
Remote control of output voltage
▪
DC-OK relay contact
▪
Shut-down input
▪
3 Year warranty
S - D
HORT FORM ATA
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 40 – 34.3A
60 – 51.5A
Output power 960W
1440W
Output ripple < 100mVpp
AC Input voltage 3AC 380-480V
3AC 480V
Mains frequency 50-60Hz
AC Input current 1.58 / 1.3A
Power factor 0.92 / 0.93
AC Inrush current 4.5 / 4.5A
Efficiency 95.3 / 95.2%
Power losses 47.3 / 48.4W
Temperature range -25°C to +70°C
Derating 24W/°C
Hold-up time typ. 25 / 25ms
Dimensions (wxhxd) 110x124x127mm
Weight 1500g
M A
AIN PPROVALS
For details and the complete approval list, see chapter 22.
UL 61010
24V, 40A, T P I
HREE HASE
nominal
factory setting 24.1V
continuous
short term (4s)
continuous
short term (4s)
20Hz to 20MHz
-15%/+10%
+20% max. 5s
±6%
at 3x400 / 480Vac
at 3x400 / 480Vac
at 3x400 / 480Vac,
peak
temp. independent
at 3x400 / 480Vac
at 3x400 / 480Vac
operational
+60 to +70°C
at 3x400 / 480Vac
without DIN rail
Marine
NPUT
1/30
